IMPORTANT: Install all electrical wiring in accordance with National/Local Codes and Regulations.
1

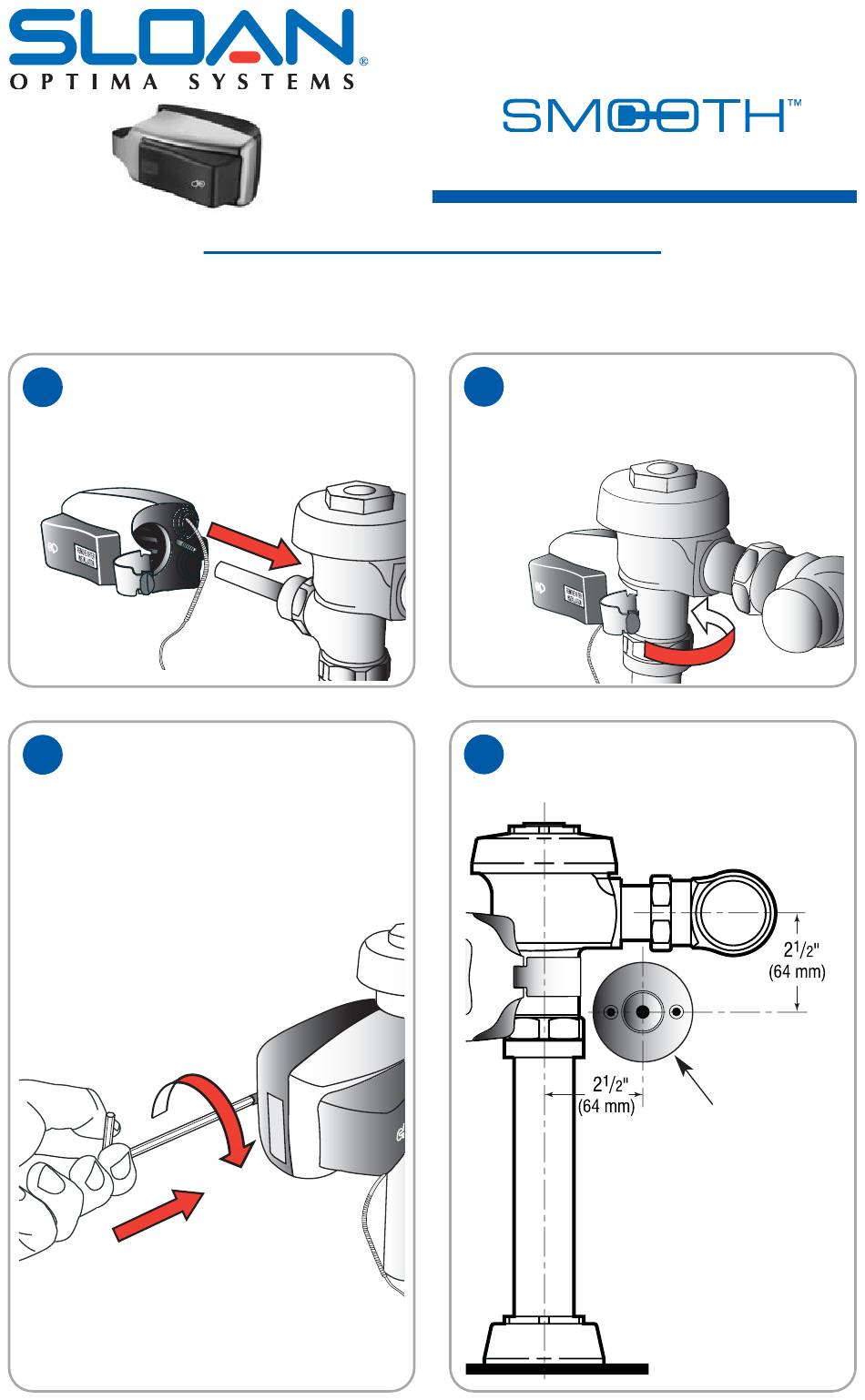

Slide the unit over the existing
handle up to the flushometer body.
3
Tighten unit by pushing in on the
spring loaded Mounting Screw and
turning clockwise with a 1/8" hex
wrench. Do Not overtighten.

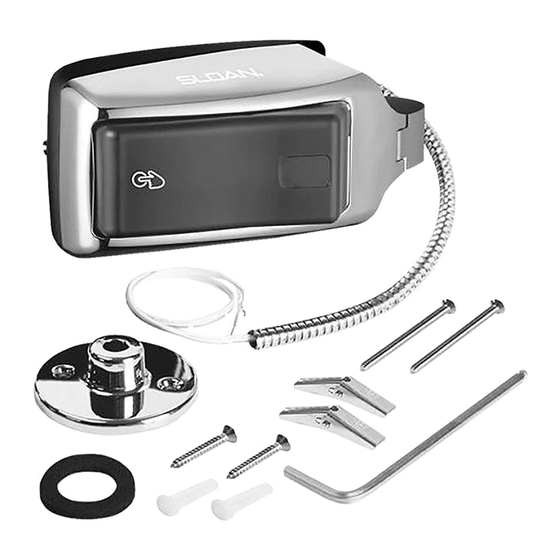

EL-600-A SMOOTH HARDWIRE ADAPTER KIT
NOTE: Water does not need to be shut off.
SIDE-MOUNT-OPERATOR-OVER-THE-HANDLE
2
Swing the Mounting Clamp around
the flushometer body and press the
clamp end into the unit until it clicks
into place.
4
Suggested mounting location of
Electrical Supply Flange.
Code No. 0816597
Rev. 0b (08/08)
FLANGE
