One Station Lavatory Systems
Determine the appropriate wall location for the Lavatory System. Consider that hot and cold water supply lines, a drain line, and an
electrical source (receptacle for hardwired faucets and hand dryer) will be required. Compare the physical dimensions of the Lavatory
System to the space available for the installation. If wall is not load bearing, a carrier may be required behind the wall. Refer to the
appropriate Rough-in diagrams for Lavatory System dimensions. Prior to Lavatory System installation, electric wiring, water supply and drain
must be installed.
1)

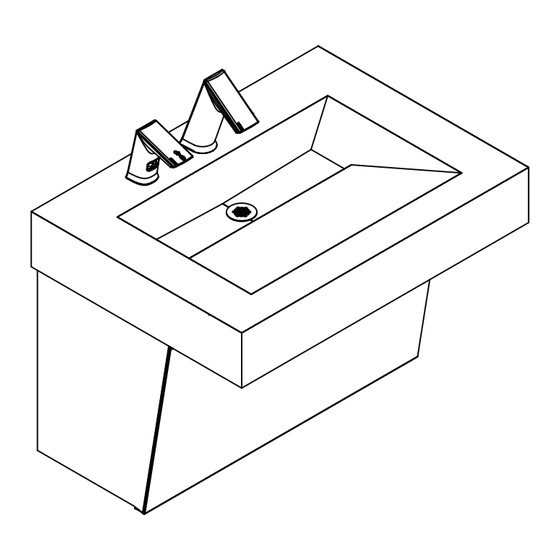

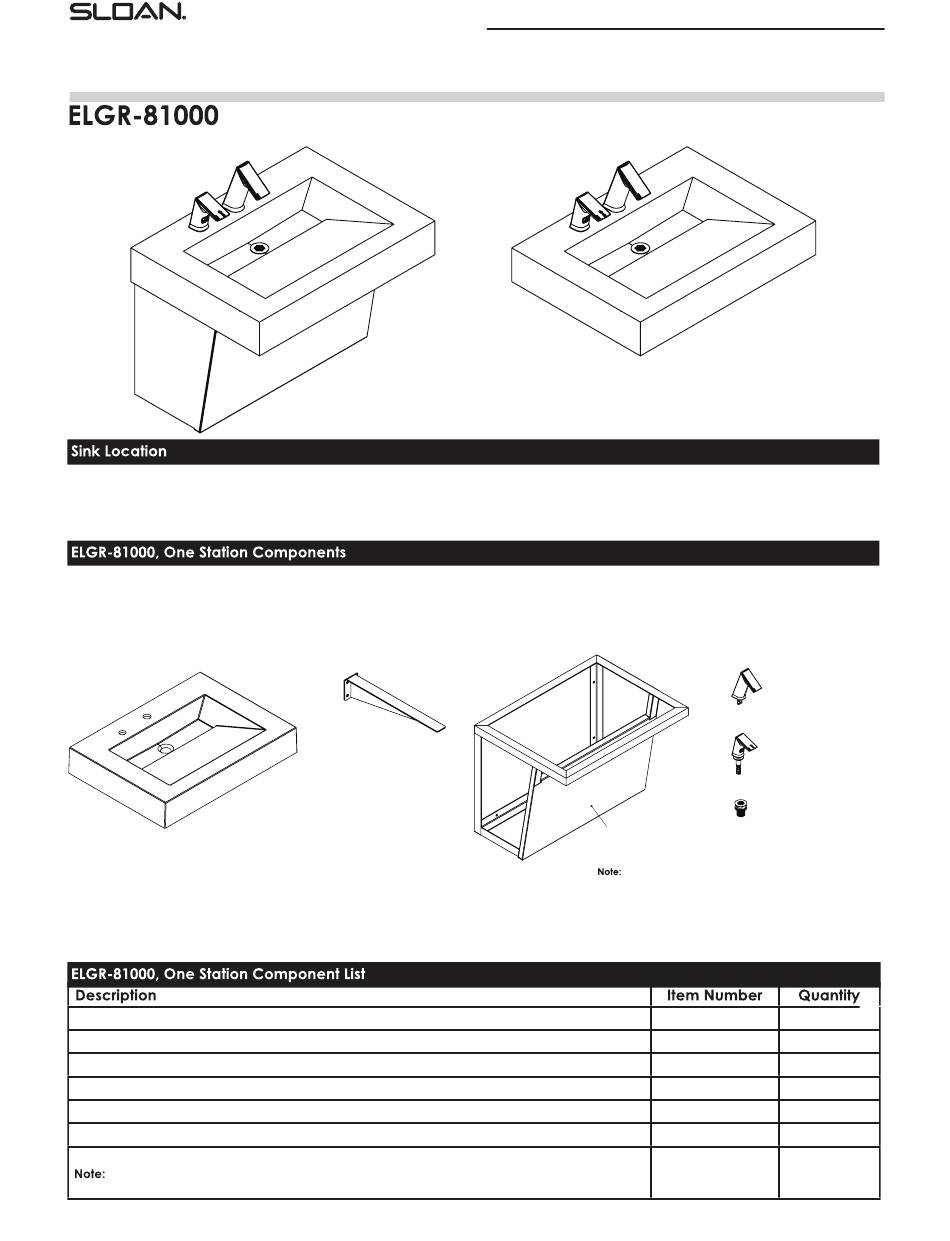

ELGR-81000 Deck
Designer Series ELGR, One Station, Deck
Side Bracket
(Mounting Option, 0386063)
Middle Bracket
(Mounting Option, 0386064, not required for single station)
Angled Enclosure
(Mounting Option)
Hook and Hang Access Panel
any Sloan Faucet
any Sloan Soap Dispenser
If ESD-500 Selected – Area under the sink must be clear for proper installation access and
soap bottle change (no outlets, stops, etc).
Grid Strainer
The information contained in this document is subject to change without notice.
Page: 2 of 29
Repair Parts and Maintenance Guide
SloanStone
2)
Side Bracket
4)
Enclosure
307
Sloan. All rights reserved.
ELGR-80000 Sink
®
6)
any Sloan Faucet
7)
any Sloan Soap Dispenser
5)
8)
Access Panel
Grid Strainer
Faucet and soap dispenser models shown for reference,
actual units will depend on what was selected at order entry.
1
2
3
4
5
6
7
8
1
2
-
1
1
1
1
1
