EFX-3XX SERIES
EFX-6XX SERIES
6C
6B
1B
9B
8
9A
16
10
17
18
15
6A
3
4
2
1A
7
5
11
12
14
13
137

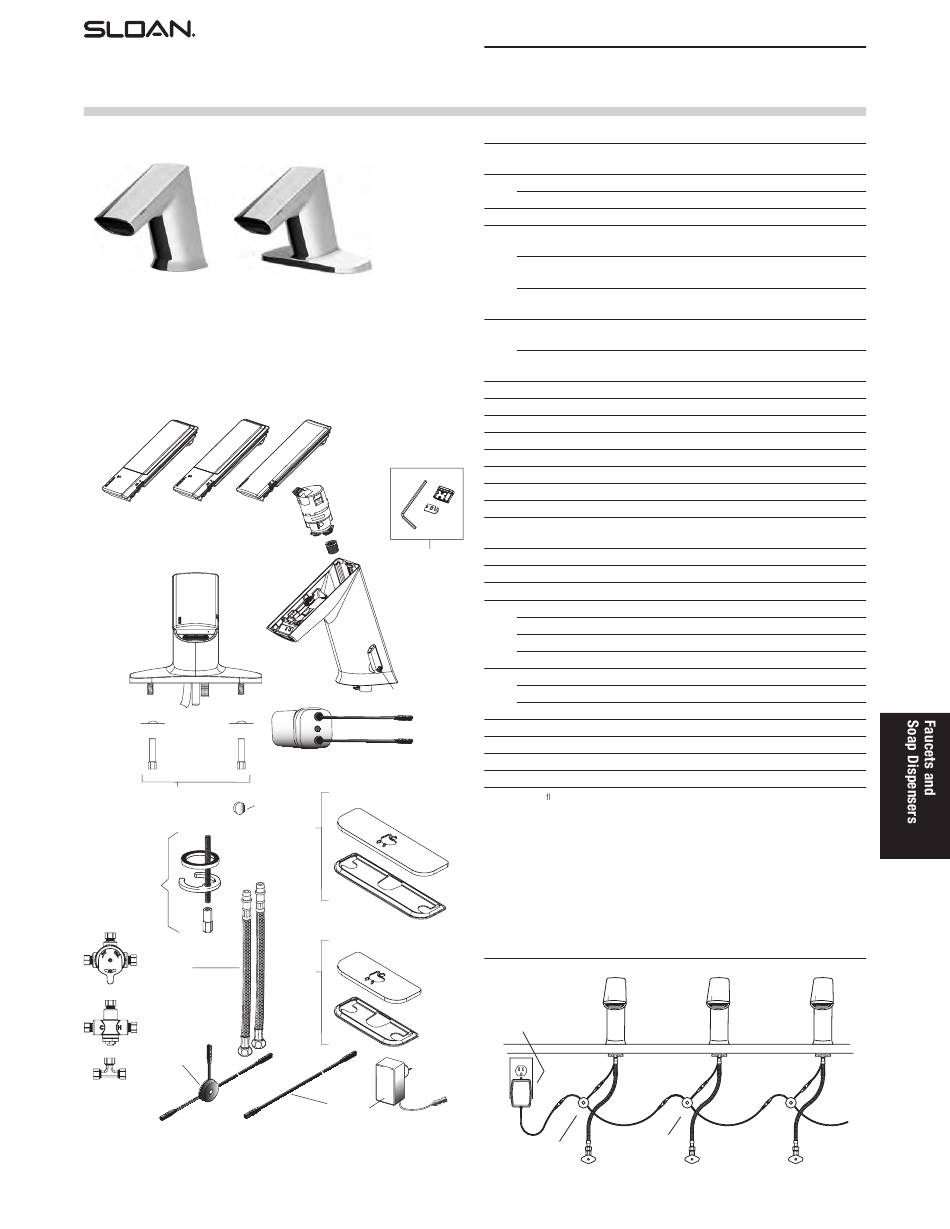

Repair Parts and Maintenance Guide
BASYS
®
Infrared Sensor Activated
PARTS LIST—BASYS FAUCETS
Item
No.
Code No. Part No.
Description
1A.
—
—

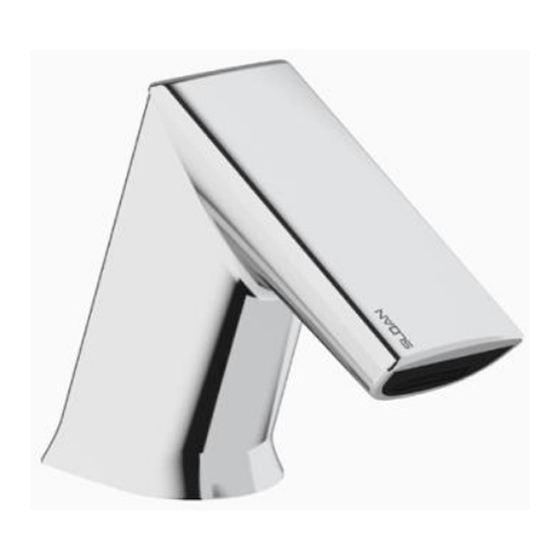

Low Pedestal Faucet Assembly*
—
—
Low Pedestal Faucet Assembly with Mixer*
—
1B.
—
Low Integrated Base Faucet Assembly†
3324104
2.
EFX-1002-A
0.5 gpm/1.9 Lpm Multi-Lam Spray Head (includes
insert, o-ring, 2.5 mm allen key, and removal tool)
3324103
EFX-1001-A
1.5 gpm/5.7 Lpm Aerated Stream Insert (includes
insert, o-ring, 2.5 mm allen key, and removal tool)
3324102
EFX-1000-A
1.5 gpm/5.7 Lpm Laminar Stream Insert (includes
insert, o-ring, 2.5 mm allen key, and removal tool)
—
3.
EFX-37
0.5 gpm/1.9 Lpm Solenoid Valve Caddy
Assembly — Low (Green)
—
EFX-38
1.5 gpm/5.7 Lpm Solenoid Valve Caddy
Assembly — Low (Blue)
0324019
4.
EFX-19
Strainer (Filter)
3324117
5.
EFX-23-A
Battery Pack Assembly
6A.
3324118
EFX-1-A
Crown Assembly
6B.
3324119
EFX-3-A
Solar Crown Assembly
6C.
3324120
EFX-4-A
Solar Crown with LCD Assembly
7.
—
—
Mixer Handle Assembly (for EFX-3 IR models only)
8.
—
EFX-25
Handle Cap (for EFX-3 IR models only)
9A.
0335000
EAF-1
Faucet Mounting Kit (for pedestal model only)
9B.
—
EFX-21-A
Faucet Mounting Kit (for integrated base model
only)
10.
3325023
EAF-1008
13" (330 mm) Flexible Supply Hoses (2)
3324101
11.
EFX-26-A
Trim Plate for 8" Centerset Sink
3324100
12.
EFX-20-A
Trim Plate for 4" Centerset Sink
0335009
13.
EAF-11
Plug-in Voltage Adapter (US)
0335041
EAF-41
Plug-in Voltage Adapter (EU)
0335039
EAF-39
Plug-in Voltage Adapter (UK)
0335037
EAF-37
Box Type Voltage Adapter
14.
0335024
EAF-24-A
11-13/16" (300 mm) Extension Cable
0335025
EAF-25-A
47-1/4" (1200 mm) Extension Cable
0335015
EAF-17-A
126" (3200 mm) Extension Cable
15.
0335023
EAF-23-A
Splitter
16.
3326009
MIX-60-A
Mechanical, Below Deck Mixing Valve
17.
0326045
MIX-135-A
Thermostatic, Below Deck Mixing Valve
18.
3365461
ETF-617-A
Bak-Chek Tee
NOTE: If changing ow rate caddy and spray insert must be changed in conjunction.
† Single Supply faucets include Bak-Chek
®
*Integral Base model not available with integral to faucet side mixer; single supply faucets include Bak-Chek
— in Item No. column = Not shown in illustration
— in Code No. and Part No. column = Not sold separately
Electrical Connection for up to Six (6) Faucets Using One (1) Adapter
ADAPTER
DAISY CHAIN
DAISY CHAIN
ELECTRICAL
ELECTRICAL CABLE
CABLE
The information contained in this document is subject to change without notice.
®
TO ADDITIONAL
FAUCETS
(6 MAX.)
