Quick Start Guide
Thank you for your purchase of LE-series.
This booklet tells you only the basic operation. For more detailed information, please refer
to the instruction manual (PDF) in the utility CD attached to the product.
When you unpack the product, make sure you have all following items
□

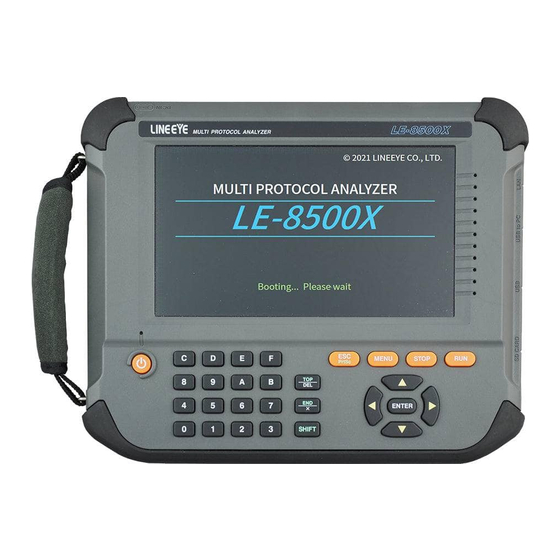

Protocol Analyzer
□
Interface Sub-board [SB-GE2] (attached to the analyzer)
□
( Already mounted)
Hand strap
□
Wide input AC adapter (Input :AC100 ～ 240V/ Output :DC9V )
□
LAN cable
□
USB cable (Type A - Type-C)
External signal I/O cable [LE-4TG]
□
□
Utility CD
Quick Start Guide ( this booklet )
□
□
Carrying bag [LEB-01]
□
Registration card, Warranty
Please let us know if you find any damage to the product or accessories lacking.
2022 by LINEEYE CO., LTD. All rights reserved.
MULTI PROTOCOL ANALYZER
1
1
1
1
2
1
1
1
1
1
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for LineEye LE-8500X
Summary of Contents for LineEye LE-8500X
- Page 1 Utility CD Quick Start Guide ( this booklet ) □ □ Carrying bag [LEB-01] □ Registration card, Warranty Please let us know if you find any damage to the product or accessories lacking. 2022 by LINEEYE CO., LTD. All rights reserved.
- Page 2 ・ Reference page is displayed in (Pxxx). It is prohibited to reprint or duplicate any part of this manual without prior permission of LINEEYE. The content of this manual and specification of the product is subject to change without any notice...
-
Page 3: Safety Information
Safety Information Please do not use the line monitor in the following conditions. 〔 Description of the symbol and mark 〕 Warning: There is a possibility of getting hurt, such as a death or a serious injury. Caution: There is a possibility of getting injured or damaging the product. Warning ●... - Page 4 Nomenclature Name Function AC adapter plug Connects the AC adapter, which serves as a battery charger. Power Switch Press it for more than 1 sec to turn on/off the analyzer. SD Card Slot The inlet for a SD/SDHC card. USB Type-A connector USB Host Port Connect the USB flash drive or SSD for USB port.
-
Page 5: Power Supply And Battery
＜ Notice for battery ＞ ● Do not short the terminal of the battery. ● Use the battery and battery charger specified by LINEEYE. ● Do not disassemble or modify the battery. ● Do not use the analyzer near the heater or leave it in the place with high temperature. -
Page 6: Key Operation
Key operation There is a keyboard to input data and operate commands. ڦKeys Operations Function Turn ON/OFF the power. Press it for more than 1sec. [RUN] Start monitoring, measuring or testing operation. [STOP] Stop monitoring, measuring or testing operation. [MENU] Return to the top menu. -
Page 7: Initial Settings
B o t h L E - 850 0X R a n d L E - 850 0X models are displayed as “LE-8500X”. To set each configuration, touch the configuration menu or select by [▲], [▼],[ ],[ ] keys and then press... -
Page 8: Record Control
Record Control Touch “Record Control” from top menu and set the record conditions of measured data. Shortcut key ［ MENU ］ , [B] Touch “Capt. Buffer” on the left upper or press [SHIFT] + [ ] or [SHIFT] + [ ] ... - Page 9 ڧNetwork Set each setting for wired LAN and wireless LAN. As a factory setting, wireless LAN is turned of f. To cha nge t he set t i ng of wireless LAN, touch “Set ting change” and select “station mode” or “access point mode”.
- Page 10 Functions ڦOnline Monitor Function Touch “Mode” from top menu and select “Online”. ڧConnection Connect the LAN cables (in which the communication data between the target devices run) with each port as follows. When you need additional cables for branch connection, use the attached LAN cable or a straight cable of the category 5e or later.
- Page 11 To use one GPS active antenna and synchronize 2 sets of LE-8500X, connect devices as following. GPS antenna PPS cable ڧInterface setting Touch “Interface”. Set each setting of port A/B and port C/D individually. Shortcut key ［ MENU ］ ,[1] ...
- Page 12 ڧFrame display It displays the LAN frames with the time stamp information on the screen. Scroll data by [▲] [▼] keys or swipe the screen. Press [ENTER] to display more details. Touch “PoE” to display PoE information if it is measured. Time stamp “Time Resolution”...
- Page 13 ・ HEX dump view Touch “Dump” in the detailed display. The target frame for dump view. It is able to scroll data by swiping the screen. Dump display of Ethernet frame. Scroll frames by ［ ▲ ］ ［ ▼ ］ keys. ...
- Page 14 ڦPoE Measurement Function Touch “Mode” at the top menu, and select “PoE” ڧConnection Connect PSE (Power Sourcing Equipment) into the port A and PD (Powered Device) into the port B. PD(Powered Device) PSE(Power Sourcing Equipment) PORT B PORT A Network hub with Web camera (etc.) PSE function (etc.)
-
Page 15: Setting Example1
・ PoE graph display Mark on the box on the right side of the screen. Selected data is displayed in graph. Touch “Target” to change the target data. Scroll data by [ ]keys or swipe the screen. Press [SHIFT]+[ ][ ] to scroll faster. ... - Page 16 ڦStatistic Function Touch “Mode” at top menu and select “Trend”. ڧConnection Connect the target network to the port A/B/C/D of analyzer. Refer to the manual of “Connection” for On-line monitor function → 「 Online Monitor Function 」 （ P8 ） ...
- Page 17 ڦPacket Generator Function Touch “Mode” at top menu and select “PG” ڧConnection Connect the target device and analyzer using the LAN cable. PORT C ڧPG setting Touch “ PG Opt.” and set the transmission packets and conditions. ...
- Page 18 ・ Edit protocol Select the protocol type from Ethernet, IPv4, ARP, ICMP, TCP, U DP and set the appropr iate header following the specification of each protocol. Tou ch “A p ply ” t o a p ply t h e setting and return to the data send table.
- Page 19 ڧPing Setup Touch “ Ping Opt.”. Set the send address and interval. ڧStart and end measuring Press [RUN] to start the ping test from selected port. It ends the test when it reaches to the 30000 times or press [STOP]. ...
-
Page 20: Useful Functions
Useful Functions ڦFilter function Filter function captures specific frames measured by on-line monitor function. It is able set 2 filters for port A-B and for port C-D. Touch “Filter” from on-line monitor function. ［ MENU ］ ,[0] Shortcut key ... - Page 21 ・ Monitoring example of TCP/IP frames between Device A and D by filtering. The filter 0 is configured to monitor TCP frames sent from the device D to device A and the filter 1 is configured to monitor TCP frames sent from the device A to device D.
- Page 22 It is configured by filter 4 to monitor only the frames of UDP protocol which have “192.16.2” for the network address part of both source IP and destination IP. ڦTrigger Setup Specific conditions or input from external terminal become the trigger factors, and outputs external signal or stops measuring.
- Page 23 ڦSave and Load of the Data An SD/SDHC card or USB flash drive can be used as a storage device, and measurement data and setting data can be saved to it. Touch “File Manager”. Shortcut key ［ MENU ］ ,[A] Storage device has to be formatted as “FAT32”.
- Page 24 The communication log file name is # XXXXXXX.DT (XXXXXXX is a sequential number that increases by 1 from 0000000) When you start the measurement by [RUN], a confirmation message for overwriting the file will be displayed. Tap [RUN] or “Continue” to start measurement. If you do not want to lose the communication log file and want to save it to another device, press [STOP] and save it to a PC or other device.
- Page 25 Measurable Interface Expansion By usi ng the option for measu rement expansion, you can expand the communication target to be measured. ڦExchange the board Remove the standard interface sub board and replace it with the optional interface sub board. ...
- Page 26 Specifications of Function and Hardware Item RJ-45 connector. Port A/ B/ C/ D: 10BASE-T/100BASE-TX/1000BASE-T Interface Between port A&B is the fail-safe tap. Capacity: 1G byte Capture memory （ 96 ～ 10,560 byte for 1 frame, 64 byte for 1 PoE data ） On-line Monitor Record LAN frames between port A&B and port C&D simultaneously, and Function...
- Page 27 4-pin for trigger function External I/O terminal SMA( female ) connector GPS Antenna Connector SMA( female ) connector PPS Signal Connector IEEE802.11b/g/n. Frequency range: 2412MHz ～ 2484 MHz Wi-Fi interface ・ Transmission power 802.11b: +18.5dBm 802.11g: +18.0dBm 802.11n: +17.0dBm ...
- Page 28 For any technical issues Read ‟FAQ” in our website or email us. https://www.lineeye.com/html/contactus.html LINEEYE CO., LTD 4F., Marufuku Bldg., 39-1, Karahashi Nishihiragaki-cho, Minami-ku, Kyoto, 601-8468, Japan Tel : 075(693)0161 Fax:075(693)0163 URL https://www.lineeye.com Email : info@lineeye.co.jp Printed in Japan M-1285XQJ/LE...
