Page 1
Utility CD Quick Start Guide ( this booklet ) □ □ Carrying bag [LEB-01] □ Registration card, Warranty Please let us know if you find any damage to the product or accessories lacking. 2022 by LINEEYE CO., LTD. All rights reserved.
Page 2
・ Reference page is displayed in (Pxxx). It is prohibited to reprint or duplicate any part of this manual without prior permission of LINEEYE. The content of this manual and specification of the product is subject to change without any notice...
Safety Information Please do not use the line monitor in the following conditions. 〔 Description of the symbol and mark 〕 Warning: There is a possibility of getting hurt, such as a death or a serious injury. Caution: There is a possibility of getting injured or damaging the product. Warning ●...
Page 4

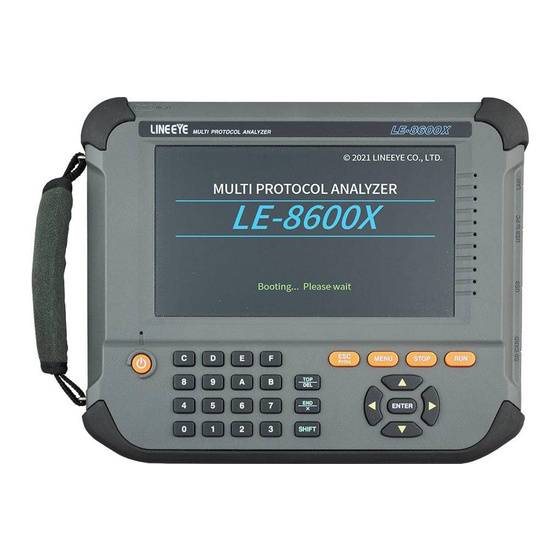

Nomenclature Name Function AC adapter plug Connects the AC adapter, which serves as a battery charger. Power Switch Press it for more than 1 sec to turn on/off the analyzer. SD Card Slot The inlet for a SD/SDHC card. USB Type-A connector USB Host Port Connect the USB flash drive or SSD for USB port.
< Notice for battery > ● Do not short the terminal of the battery. ● Use the battery and battery charger specified by LINEEYE. ● Do not disassemble or modify the battery. ● Do not use the analyzer near the heater or leave it in the place with high temperature.
Key operation There is a keyboard to input data and operate commands. ڦKeys Operations Function Turn ON/OFF the power. Press it for more than 1sec. [RUN] Start monitoring, measuring or testing operation. [STOP] Stop monitoring, measuring or testing operation. [MENU] Return to the top menu.
B ot h L E - 86 0 0X R a n d L E - 86 0 0X models are displayed as “LE-8600X”. To s e t e a ch c on f ig u r at ion , t ou ch the configuration menu or select by [▲],[▼],[ ],[ ] keys and then press...
Record Control Touch “Record Control” from top menu and set the record conditions of measured data. Shortcut key [ MENU ] , [B] Touch “Capt. Buffer” on the left upper or press [SHIFT] + [ ] or [SHIFT] + [ ] ...
Page 9
ڧNetwork Set each setting for wired LAN and wireless LAN. As a factory setting, wireless LAN is turned of f. To cha nge t he set t i ng of wireless LAN, touch “Set ting change” and select “station mode” or “access point mode”.
SFP module SFP modules (sold separately) must be installed in order to perform measurements with this unit. We have the following as optional items. Type Model Wave length: 850nm, maximum transfer distance: 1000BASE-SX SFP module LE-1G-SX-85 550m (LC) Wave le ng t h: 1310 n m , m a x i mu m t r a n sfe r 1000BASE-LX/LH SFP module LE-1G-LX-31 distance: 20km (LC) 1000BASE-T SFP module...
Page 11
Functions ڦOnline Monitor Function Touch “Mode” from top menu and select “Online”. ڧConnection Connect the cables (in which the communication data between the target devices run) with each port as follows. When you need additional cables for branch connection, use the attached LAN cable or a straight cable of the category 5e or later.
Page 12
To use one GPS active antenna and synchronize 2 sets of LE-8600X/LE-8500X, connect devices as following. GPS antenna Coaxial cable for PPS synchronization ڧInterface setting Touch “Interface”. Set each setting of port A/B individually. Shortcut key [ MENU ] ,[1] ...
Page 13
ڧFrame display It displays the LAN frames with the time stamp information on the screen. Scroll data by [▲] [▼] keys or swipe the screen. Press [ENTER] to display more details. Time stamp “Time Resolution” Source address ss.nsec or mm:ss.μsec*1 Destination address Protocol ↓...
Page 14
・ HEX dump view Touch “Dump” in the detailed display. The target frame for dump view. It is able to scroll data by swiping the screen. Dump display of Ethernet frame. Scroll frames by [ ▲ ] [ ▼ ] keys. ...
Page 15
ڦSFP module information display function Displays detailed information of the SFP module inserted in the unit. Tap “Mode” on the top menu screen and select “SFP Info.” ڧInformation display Press [RU N] to obtain and display the information. Tap “Transceiver” and “Diagnostic”...
Page 16
ڦPacket Generator Function Touch “Mode” at top menu and select “PG” ڧConnection Connect the target device and analyzer using the LAN cable. PORT A ڧPG setting Touch “ PG Opt.” and set the transmission packets and conditions. ...
Page 17
・ Edit protocol Select the protocol type from Ethernet, IPv4, ARP, ICMP, TCP, U DP and set the appropr iate header following the specification of each protocol. Tou ch “A p ply ” t o a p ply t h e setting and return to the data send table.
Page 18
ڧPing Setup Touch “ Ping Opt.”. Set the send address and interval. ڧStart and end measuring Press [RUN] to start the ping test from selected port. It ends the test when it reaches to the 30000 times or press [STOP]. ...
Useful Functions ڦFilter function Filter function captures specific frames measured by on-line monitor function. It is able set 2 filters. Touch “Filter” from on-line monitor function. [ MENU ] ,[0] Shortcut key ڧMode If selecting “Common”, the setting on Tx is applied on Rx as well.
Page 20
・ Monitoring example of TCP/IP frames between Device A and D by filtering. The filter 0 is configured to monitor TCP frames sent from the device D to device A and the filter 1 is configured to monitor TCP frames sent from the device A to device D.
Page 21
It is configured by filter 4 to monitor only the frames of UDP protocol which have “192.168.1” for the network address part of both source IP and destination IP. ڦTrigger Setup Specific conditions or input from external terminal become the trigger factors, and outputs external signal or stops measuring.
Page 22
ڦSave and Load of the Data In addition to the built-in SSD, SD/SDHC cards and USB memory can be used as storage devices to save measurement data and setting data. Touch “File Manager”. Shortcut key [ MENU ] ,[A] Storage device has to be formatted as “FAT32”.
Page 23
Max. Files : Set the maximum number of files to be recorded. The communication log file name is # XXXXXXX.DT (XXXXXXX is a sequential number that increases by 1 from 0000000) When you start the measurement by [RUN], a confirmation message for overwriting the file will be displayed.
Page 24
Measurable Interface Expansion By usi ng the option for measu rement expansion, you can expand the communication target to be measured. ڦExchange the board Remove the standard interface sub board and replace it with the optional interface sub board. ...
PC Link Function Using the attached utility software, you can perform remote operation while displaying the screen of the analyzer, transfer online monitored data to a PC, and convert it to Wireshark format. Connect the analyzer to a computer via USB, LAN or Wi-Fi (supported models only).
Page 26
ڦTransfer of online monitored data to a PC Usi ng the utilit y sof t ware that converts the communication data of the analyzer into a format that can be handled by Wireshark, you can transfer the online monitored data in the memory to a PC.
Page 27
Specifications of Function and Hardware Item SFP+ 2ports. A and B (optional SFP/SFP+ modules to be connected) Interface 10Gbe such as 10GBASE-T/SR/LR/ER, and 1GbE. M e m o r y / I n t e r n a l Capture memory: 1Gbyte (96byte to 12320byte for 1 frame) Storage Internal storage: 500Gbyte On-line Monitor...
Page 28
For standard size SD / SDHC memory cards, compliant with SD Association SD Card Slot standard 4-pin connector for TTL level trigger input/output signals External I/O terminal SMA (female) connector GPS Antenna Connector SMA (female) connector PPS Signal Connector IEEE802.11b/g/n frequency range: 2412MHz to 2484MHz Wi-Fi interface ・...
