USB 2.0 Protocol Analyzer
LE-650H2 / LE-650H2-A
INSTRUCTION MANUAL
（10th Edition)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LE-650H2 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for LineEye LE-650H2

Summary of Contents for LineEye LE-650H2

  • Page 1 USB 2.0 Protocol Analyzer LE-650H2 / LE-650H2-A INSTRUCTION MANUAL （10th Edition)

  • Page 3: Before Using The Product

    Before Using the Product Introduce Thank you for your purchase of USB Protocol Analyzer LE-650H2/LE-650H2-A. Please read the operating instruction carefully before use to ensure safe operation of LE-650H2/ LE-650H2-A. Please be sure to save this Manual. After installing the online help, you can use it from the software menu "Help" (or click the "...
  • Page 4 Safety Information Read this first ! ! Please read the operating instruction carefully before use to ensure safe operation of LE-650H2/LE- 650H2-A. The general safety rules are provided for your benefit to protect you and those around you. Please read and follow them to avoid unnecessary injury and damage to the product and property and touse LE-650H2/LE-650H2-A right and safely.
  • Page 5 The rights and copyrights of the SOFTWARE are owned by LINEEYE. 2 Grant of License LINEEYE grants to you this software can be used on only one computer when you get this software and agree to our License agreement. Therefore, you may not transfer, rent lease and loan to third parties.

  • Page 6: Table Of Contents

    Contents Before Using the Product ………………………………………………………………………………… 1 Outline …………………………………………………………………………………………………… 5 Composition ……………………………………………………………………………………………… 5 System Requirement ……………………………………………………………………………………… 5 1.　Explanation of each part ……………………………………………………………………………… 6 2.　Installation of software and drivers …………………………………………………………………… 7 2-1.　Installation of PC soft and USB Driver (Windows7/8.1/10) ……………………………… 7 2-2.　Installation to PC via LAN …………………………………………………………………...

  • Page 7: Outline

    Outline LE-650H2/LE-650H2-A is apparatus which connects with a PC, and analyzes "USB Protocol". "USB Protocol" is recorded on the hard disk of PC on real time, and it is displayed intelligibly for a LE-650H2/LE-650H2-A Software window. ●HIGH/FULL/LOW speed modes automatic identification The device speed to observe is judged automatically.

  • Page 8: Explanation Of Each Part

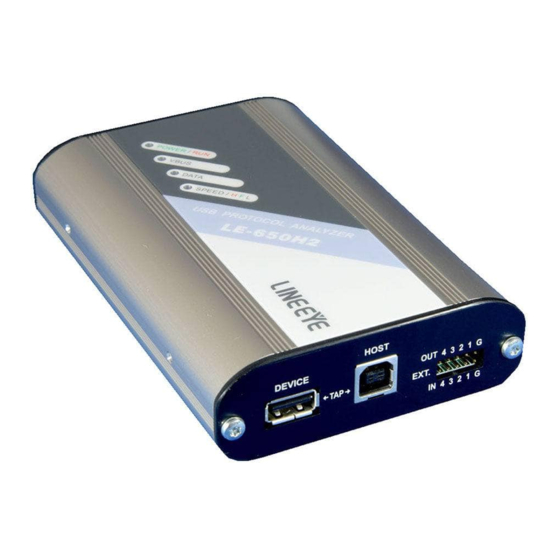

    1. 　 Explanation of each part < LE-650H2 / LE-650H2-A > ④ ① ③ ② ⑤ ⑥ ⑦ ⑧ 1. 　 USB connector for analysis PC Connect to an analysis PC with the attached cable. 2. 　 USB device connector Connect to a USB device to be measured.

  • Page 9: Installation Of Software And Drivers

    Installation of software and drivers 　 2-1. 　 Installation of PC soft and USB Driver (Windows7/8.1/10) Insert the attachment CD-ROM into the CD-ROM Drive of PC. Then, the installer automatically starts. If it does not start automatically, click "setup.exe" on the CD-ROM. Attention: Please install the software before connecting the analyzer.
  • Page 10 6.Click “Next” to continue. If you would like to 9.Click [Next] when starting the installation of the select a different folder, click Browse. device driver. 10.Click “Install” , when the following dialog is 7.Select the additional tasks which you would displayed.

  • Page 11: Installation To Pc Via Lan

    3.Copy “setup.exe(v1.0.0.2 or above)” to the appropriate folder in the PC without the CD drive. *If you have the CD which version is v1.0.0.1 or below, install the latest software from LINEEYE web-page. The PC with a CD drive The PC for installation without a CD drive...
  • Page 12 4.Execute “setup.exe” in the PC with the CD drive. Then proceed the process until “The USB Protocol Analyzer LE-650H2 setup wizard” appears. The PC with a CD drive The PC for installation without a CD drive Execute setup. exe. 5.Execute the “setup.exe” from the PC without the CD drive. The license key number is automatically filled and then complete the setup wizard.

  • Page 13: About Version Up

    6.After finishing the installation at (5), cancel the setup wizard started at (4). The PC with a CD drive The PC for installation without a CD drive 2-3. 　 About Version Up The latest version of monitoring software can be used by downloading it from our website. However, it requires a “license”to use new functions which are added later than about 1 year after your purchase of the product.

  • Page 14: Connection

    3. 　 Connection 3-1. 　 Basic connection USB protocol analyzer LE-650H2 / LE-650H2-A displays and records the captured log on a PC. This PC used for displaying and recording is called "Analysis PC." The host PC for USB protocol analyzer needs to have a USB interface supporting USB2.0 High- Speed.

  • Page 15: Notes On The Usb Cables

    USB2.0 standard certified cable to connect USB. ●Follow the conditions below such as the length of the USB cable. Connecting LE-650H2 / LE-650H2-A to the USB protocol analyzer host PC ・ Use One USB2.0 standard certified cable 5m or shorter.

  • Page 16: Basic Operation

    This setting is required only when you run the analysis software for the first time. 4.Connect the USB host and USB device which you want to measure to LE-650H2 / LE- 650H2-A. * We recommend you to connect only the USB device for which you want to acquire logs, and...
  • Page 17 5. 　 Press the space key or the "Log start" button to start the measurement. 6. 　 While saving the data from the first USB packet found to the HDD / SSD of the analysis PC, it displays it on the screen with an easy-to-understand transaction unit. The analysis software can scroll the data display even during the measurement.

  • Page 18: The Display Screen

    5. 　 The display screen 5-1. 　 Explanation of Packet Display ① ⑧ ⑫ ⑩ ② ⑪ ③ ⑨ ⑤ ⑥ ⑦ ④ ①： VBus measurement bar 　 The power (W), voltage (V), and current (mA) of the BUS line being measured are measured and displayed.

  • Page 19: Detailed Display Of Request / Descriptor By Class

    　・ Wireless controller Class-Specific device request device classes which the USB protocol analyzer *only for HCI protocol for Bluetooth dongle LE-650H2 / LE-650H2-A does not support will be displayed as "Undefind". <Types of descriptors supported> * By clicking the arrow on the upper right of the request 　・...

  • Page 20: How To Set The Screen Display

    <Commands specific to the supported device class> 　・ Mass Storage / Bulk Only Transport commands 　・ USBTMC class commands 　・ Operations, Responses, and events of MTP/PTP 　・ Bluetooth dongle HCI protocol commands and events 5-3. 　 How to set the screen display You can set and change the screen display as you like.
  • Page 21 　 ●Display Filtering Function This function displays only the applicable transactions on specific conditions. This function makes it possible to quickly verify only the desired packets/transactions without displaying unnecessary packets/transactions. ＜ Display filtering conditions ＞ Hides the SOF packet.When capturing data from the Low-Speed Hide SOF packets (*) device only, those settings are not required because it does not generate SOF packets.

  • Page 22: Log Settings And Save

    　　・ Specifying a temporary folder and setting regarding how to check the free space ＜ Operation method ＞ 1. 　 Connection port setting Select either the serial number (LE-650H2) or the serial number (LE-650H2-A) from the drop-down list. 2. 　 Log operation setup Item Meaning ・...
  • Page 23 3. 　 Temporary folder Set a temporary folder to temporarily save log data. Select "Options"-> "Temporary Folder" from "Log" in the menu. 　 Use of a prearranged temporary folder Use the Windows default temporary folder as the temporary folder. in windows as the temporary folder (When the "Use of a prearranged temporary folder in windows as the temporary folder"...

  • Page 24: Saving A Log File

    6-2. 　 Saving a log file To save the log data in the file, click "Save" or "Save As" from the File menu. Even if you start logging new data after saving data and try to close the window, the file save dialog appears. Name the file to save the updated data if needed.

  • Page 25: Useful Functions

    7. 　 Useful functions 7-1. 　 Retrieval Function You can retrieve a specific type of packets. ＜ How to use the retrieval function ＞ 1. 　 Click "Find" from "Edit" menu to display the following dialog. 2. 　 Select the object which you want to retrieve from "find target". * Refer to "USB address / endpoint"...

  • Page 26: Mark Function

    7-2. 　 Mark Function Using "Mark Function", you can put sequential numbers on a transaction in the log. For example, marks can be put at the point where the USB host controller identifies a new USB device and starts setting up, or at the point where the USB device starts a transmission. An arbitrary mark comment can be input to each mark, and the explanation can be added to analyzed content and transaction.

  • Page 27: Real Time Filter

    7-4. 　 Real Time Filter This function makes it possible to capture the necessary log data only onto host PC and to decrease the file size of the log data. ＜ Operation procedure ＞ 1 ： Click "Setup" from "Log" menu. 2 ：...

  • Page 28: Repeat Mode

    This function allows you to capture more than log data of 2GB, and to capture up to about 10GB (up to about 40GB for LE-650H2-A ). This mode lets log data go to from 2 and 5th (2 and 20th for LE-650H2-A ) log window in order as ring buffer.

  • Page 29: Trigger Settings

    8. 　 Trigger settings ・ By using this feature, can perform log stop and trigger output from near the data which you want to confirm. ・ The plural trigger condition and trigger operation are set beforehand, and the trigger condition can be judged one by one. ＜...
  • Page 30 ・ External trigger External trigger I/O connection port on the back side of LE-650H2 / LE- 650H2-A allows you to start and stop external logs, and also it allows you to perform the signal output to the outside when the specific conditions are satisfied.
  • Page 31 "Trigger 1", click the item name and press "F2", or right-click on the item name and select "Rename." Note ： Stop the software once, and restart. All the trigger setting conditions will move to "Spare settings" folder after stopping the software of LE-650H2/LE-650H2-A.

  • Page 32: Detailed Analysis Function

    9. 　 Detailed analysis function 9-1. 　 USB Device Class Setting Even you do not have any emulation information in the log file, you can display translation information by setting "USB Device Class Setting". ＜ When only mono feature device ＞ 1.

  • Page 33: Statistical Information

    9-2. 　 Statistical Information This function helps statistically check data by totaling the following regarding the log: total transactions, transfer bytes, and transfer rate [bytes/sec]. Statistical Information of each address or each address/endpoint will be displayed. ＜ Operation ＞ 1.Select the target area: "Entire transactions/packets" or "Selected." 2.Select the type: total transaction, transfer bytes, and transfer rate [bytes/sec].

  • Page 34: About The Measurement Of Vbus Value(Voltage(V),Current(Ma),Power(W))

    10. 　 About the measurement of VBus value(Voltage(V),Current(mA),Power(W)) You can measure the VBus value (Voltage (V), Current (mA), Power (W)of the USB to be measured and display it in real time. 1.Click [Display] from the menu bar and mark on [VBus bar] to check the VBus value 2.VBus measurement is displayed as shown below.

  • Page 35: Vbus Logger Mode

    * If you leave the measurement time blank, it will automatically stop when the recorded data reaches 2GB.(5 bytes are used for one sampling.) model Sampling rate LE-650H2 100msec , 200msec , 500msec,1sec 0.1msec , 0.2msec , 0.5msec,1msec , 2msec , 5msec, 10msec , LE-650H2-A 20msec , 50msec, 100msec , 200msec , 500msec,1sec 2.
  • Page 36 3.VBus measurement data will be displayed and recorded. Graph Damp Data 4.Stop measurement. It stops measuring automatically when it passes the measurement period, or records 2GB of data. To stop measuring manually, press stop button or select [ Log ] --> [ Stop ] 5.Log data can be saved and outputted as CSV file after the measurement.

  • Page 37: Op-Sb84 Data Conversion

    (the USB expansion board of LE-8200(A)), to display the data and save it as the log file of LE- 650H2 (file extension: usr). *If the data file contains both USB data and VBus measurement data, the file cannot be opened by LE-650H2 software. ＜ Operation ＞...

  • Page 38: Function / Reference

    13. 　 Function / reference Description of each function of the menu Menu item Toolbar Shortcut key Function Ctrl+N Open a new log window. Open... Ctrl+O Open a saved file. Close a log window. If the log data needs to Close be saved to a file, the save dialog appears.
  • Page 39 Menu item Toolbar Shortcut key Function Mark the selected row with a number. Add/Delete Mark Or, delete it. Mark List/Edit Shift+F9 Shows the table for marks. Jump to the next mark from the selected row with a mark. Go to the Next Mark Jump to the first mark of the row below if the selected row does not have any mark.

  • Page 40: Uninstall

    In case of Windows 10, open "Apps" at the setting screen from the window panel. Select "Apps & features" from the application list, and then select "USB Protocol Analyzer LE-650H2" from the list. Press "Uninstall" to uninstall. 2 ． From the Windows Control Panel You can also uninstall the program by clicking "Uninstall"...

  • Page 41: Specifications

    (Bus Reset, Suspend, Disconnect, Device Recording Method Chirp, Hub Chirp, VBUS value) on the HDD/SDD of the PC through the capture memory of LE-650H2 (can record multiple log files continuously). Records timestamps along with USB packets and External input trigger log. Time Stamp 16.7ns for 5 hours max., then start from 0 again.
  • Page 42 VBUS Measurement Voltage: range 0 to 8V, Accuracy ±1%FS Accuracy Current: range -0.9A*2 to 1A, Accuracy ±1%FS VBus measurement Display (or do not display) VBus measurement Bar. VBus Measurement 100ms - 1s (4 steps) 0.1ms – 1s (13 steps) logger Cycle mode Storage...

  • Page 43: Warranty And After-Sales Service

    ■ The warranty card is The warranty card his attached to this product. Please confirm its description and keep it in the safe place. Warranty period : 1 year from the date of shipment from LINEEYE (It does not include software contents) User Registration For after service and other information, please register your product in our Website.
  • Page 44 Please register your product for further support. We will provide you the firmware update information and sales information etc. LINE EYE CO., LTD. 4F., Marufuku Bldg., 39-1Karahashi Nishihiragaki-cho, Minami-ku, Kyoto, 601-8468 Japan Phone: 81-75-693-0161 Fax: 81-75-693-0163 URL https://www.lineeye.com Email :info@lineeye.co.jp M-A1650E/LE...
