AMIAD Automatic Filters
"SAF-4500" FILTER
cat. no. 2-84
Serial Number: ____________________
Order Number: ____________________
Catalogue Number: ________________
Filtration Degree: __________________
Tested By: _______________________
Installation, Operation
and Maintenance
Instructions
Ref. 92-9450-5
06.98
amiad filtration systems
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for amiad SAF-4500
Summary of Contents for amiad SAF-4500
- Page 1 AMIAD Automatic Filters "SAF-4500" FILTER cat. no. 2-84 Serial Number: ____________________ Order Number: ____________________ Catalogue Number: ________________ Filtration Degree: __________________ Tested By: _______________________ Installation, Operation and Maintenance Instructions Ref. 92-9450-5 06.98 amiad filtration systems...
-
Page 2: Table Of Contents
Parts Drawing - Section 2..............13 Control system, PLC Type "D" ............ 14 - 19 Control system, Relay Type "C" ..........20 - 24 With any inquiry please quote Filter Serial Number, located on the filter housing. amiad filtration systems... -
Page 3: Technical Specifications
Cleaning mechanism Stainless Steel 316, POM Exhaust valve Epoxy-coated cast iron, Natural Rubber Seals Synthetic Rubber, Teflon Control Aluminum, Brass, Stainless Steel, PVC Standard Filtration Degrees Stainless Steel Weavewire Screen micron 0.13 0.08 0.05 0.02 0.01 Mesh amiad filtration systems... -
Page 4: Safety Instructions
Avoid working below lifted equipment. 7. Extra safety devices should be installed on hot 3. Ware a safety helmet while using l i fting equipment water applications to avoid skin burn danger. amiad filtration systems... -
Page 5: Dimensional And Recommended Installation Drawing
DIMENSIONAL DRAWING AND RECOMMENDED INSTALLATION Key: Dimensions in mm (inches) 1. 6" SAF-C 4500 2. 6" inlet butterfly valve 3. 6" by-pass valve (option) 4. 6" downstream valve (recommended) 5. 6" non-return check valve (option) • Minimum distance required for maintenance. amiad filtration systems... -
Page 6: Description And Filter Operation

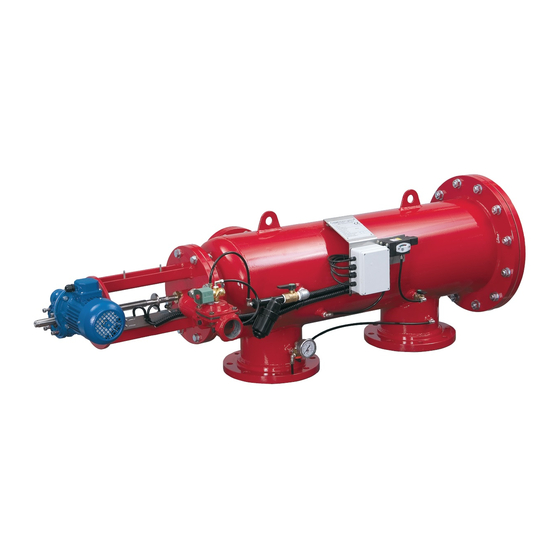

The SAF-4500 is a sophisticated yet easy-to-operate automatic filter, with a self-cleaning mechanism driven by an electric motor. The SAF-4500 is designed to work with various types of screens in filtration degrees from 500 to 10 micron, and is available in 4", 6" and 8" inlet/outlet diameter. -
Page 7: Installation
7. Check and re-tight all bolts after the first week of operation. • When using Control board type "C" (Relay type) it is necessary to press the "Test" push button in order to start the motor operation for the first time. amiad filtration systems... -
Page 8: Maintenance
4. Clean the coarse screen: - To remove large particles insert your hand into the coarse screen area. - To remove fine particles and organic matter rinse the screen. Afterwards, partially open the inlet valve and let water flow out. amiad filtration systems... -
Page 9: Disassembling And Reassembling
3. Insert the connecting pin (8.3) to the parallel hole of the suction scanner shaft (2.2) and the drive shaft (8) and lock it with the split pin (8.4). 4. Continue to assemble the parts as per 1-7 in the chapter "Assembling the fine screen". amiad filtration systems... - Page 10 15. Assemble the limit switch sling (10) in its place and push in the plug of the solenoid coil. 16. Connect the drain pipe to the exhaust valve (15). 17. Operate the control board and make sure the filter is operating properly. 18. Open the inlet and outlet valves and recheck filter operation. amiad filtration systems...
-
Page 11: Parts Schedule
85-2112-06-035 21.2 Nut M5 (x 4) 85-2212-05-000 St.St. Washer M6 (X3) 85-2312-06-000 21.3 Washer M5 (x 4) 85-2312-05-000 St.St. Washer M6 (X3) 85-2312-06-000 * Catalog number might differ according to filter diameter, flange standard or electric specifications. amiad filtration systems... -
Page 12: Parts Drawing - Section 1
PARTS DRAWING - Section 1 amiad filtration systems... -
Page 13: Parts Drawing - Section 2
PARTS DRAWING - Section 2 amiad filtration systems...
