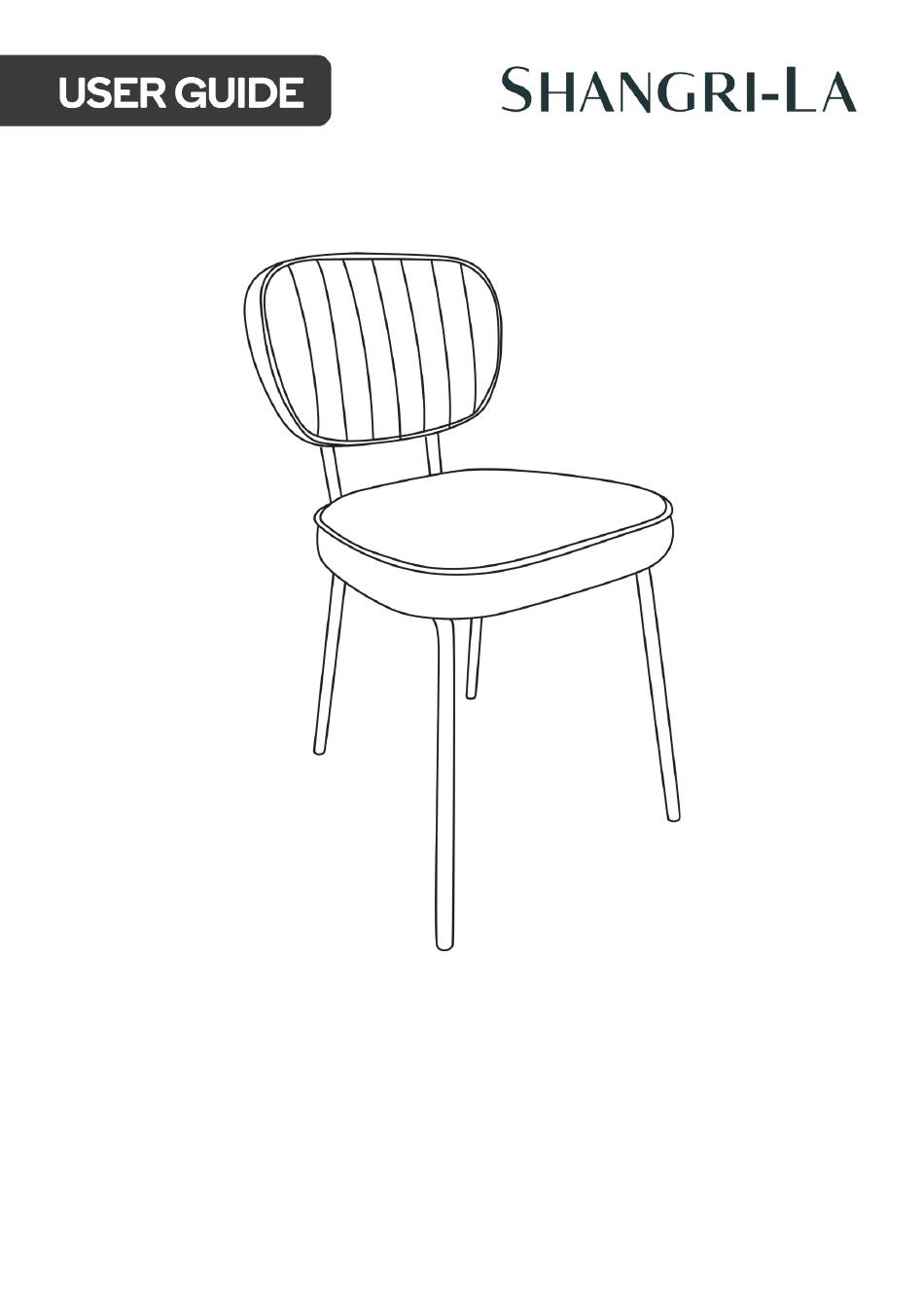

- Page 1 SET OF 2 CLAIR DINING CHAIRS SLCLAI2DCCA, SLCLAI2DCNA, SLCLAI2DCOA, SLCLAI2DCBA, SLCLAI2DCFA...
- Page 3 COMPONENTS Hardware A 35mm M6 screw (x4) B 30mm M6 screw (x2) C 25mm M6 screw (x2) D 20mm M6 screw (x4) E Washer (x4) F Allen key (x1)
- Page 4 ASSEMBLY Step 1: Using the Allen key (F), secure the back frame (3) onto chair seat (2) with 35mm M6 screws (A). Using the Allen key (F), secure the other end of the back frame (3) onto the chair back (1) with the 30mm and 25mm M6 screws (B, C) as shown below.
- Page 5 Step 2: Align the holes on the leg frame (4) with those on the chair seat (2). Place a washer (E) over one of the aligned holes, then using the Allen key (F), secure the washer (E) with a 20mm M6 screw (D). Repeat this process with the three remaining aligned holes. D (x4) E (x4) F (x1)
- Page 6 Step 3: Using the Allen key (F), tighten the screws on the back frame (3) to 100%. F (x1) 100% 100%...
- Page 7 Assembly is complete.
