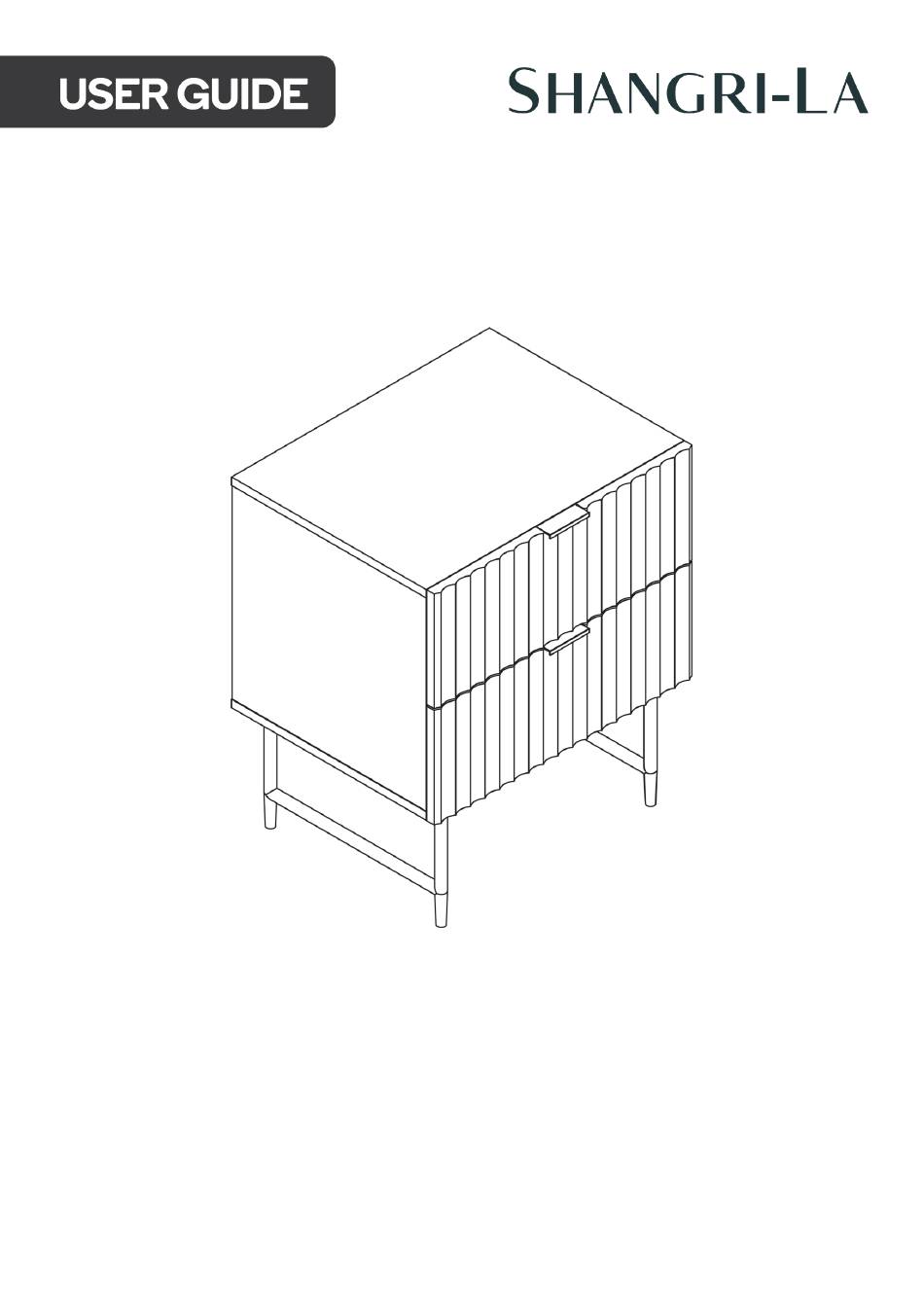

- Page 1 2 DRAWER NIGHT STAND EDINBURGH COLLECTION SLNS2DREWA, SLNS2DREBA...
- Page 3 COMPONENTS Dimensions (mm) Dimensions (mm) 530 x 400 x 15 530 x 230.5 x 20 530 x 400 x 15 530 x 230.5 x 20 399 x 380 x 15 350 x 150 x 12 399 x 380 x 15 350 x 150 x 12 508 x 390 x 3 449 x 186 x 12...
- Page 4 Hardware A ø6x35mm (x12) B ø15x9mm (x12) C M4x35mm (x4) D ø8x30mm (x8) E M4x30mm (x8) F (x2) G (x2) H (x2) I (x2) J M3.5x12mm (x24) K M3.5x12mm (x4) L (x4) M M6x12mm (x8) N (x2) O (x1)
- Page 5 ASSEMBLY Step 1: Using a Phillips head screwdriver (not supplied), secure F and G rails to parts 3 and 4 respectively with J screws. Insert A into parts 1, 7, and 8 as shown below. A (x12) F (x2) G (x2) J (x12)
- Page 6 Step 2: Using a Phillips head screwdriver, secure parts 9, 10, and 11 with E screws. Slide part 12 along the grooves on parts 9, 10 and 11. Secure H and I rails onto the assembly with J screws. Align part 7 with the assembly. Ensuring the arrows on each B piece are pointing to the corresponding A piece, insert B pieces into parts labelled 9 and 10 then secure B to A.
- Page 7 Step 3: B (x4) D (x4)
- Page 8 Step 4: Step 5: C (x4) D (x4)
- Page 9 Step 6: M (x8) O (x1)
- Page 10 Step 7: L (x4) Step 8:...
- Page 11 Assembly complete.
- Page 12 Need more information? We hope that this user guide has given you the assistance needed for a simple set-up. For the most up-to-date guide for your product, as well as any additional assistance you may require, head online to help.kogan.com...
