Summary of Contents for Kobold LFM
- Page 1 Operating Instruction Micro Flow Meter Model: LFM...
- Page 2 Technical Information ..................6 Dimensions ....................7 EU Declaration of Conformance ..............8 Manufactured and sold by: Kobold Messring GmbH Nordring 22-24 D-65719 Hofheim Tel.: +49(0)6192-2990 Fax: +49(0)6192-23398 E-Mail: info.de@kobold.com Internet: www.kobold.com Page 2 LFM K03/0422...
- Page 3 Please read these operating instructions before unpacking and putting the unit into operation and follow the instructions precisely as described herein. The instruction manuals on our website www.kobold.com are always for currently manufactured version of our products. Due to technical changes, the instruction manuals available online may not always correspond to the product version you have purchased.

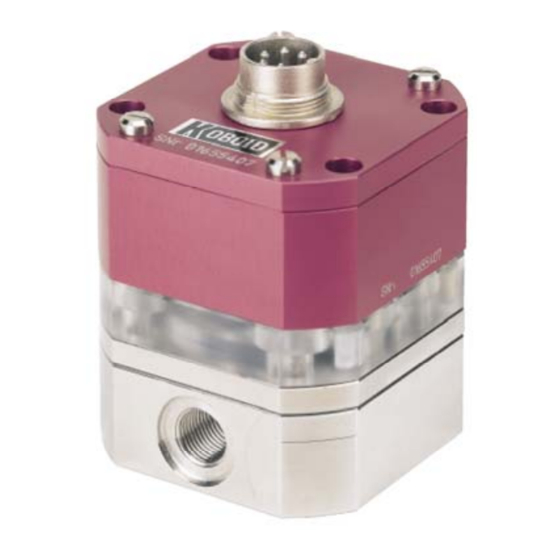

- Page 4 4. Regulation Use The LFM is a new flowmeter designed for use on clean low-viscosity liquids and is particularly suitable for dosing and filling applications. Extremely low flow rates can be measured down to 0.005 l/min. Care should be taken that liquid which may attack the wetted parts of the flowmeter are not used.
- Page 5 5 = n.c. 8. Operation Please pay attention to the technical data printed on the type-label as well as given in the data sheets. The system must be evacuated from air otherwise the accuracy will be affected. LFM K03/0422 Page 5...
- Page 6 300 mbar at 5 cSt/0.25 L/min Max. temperature: -40 °C...+80 °C Electrical data: Push-pull U max = 30 V Electrical connection: 5-pin M12 Installation position: vertical, flow rate from bottom to top Weight (with transducer): approx. 650 g Protection: IP 65 Page 6 LFM K03/0422...
- Page 7 10. Dimensions LFM K03/0422 Page 7...
- Page 8 11. EU Declaration of Conformance We, KOBOLD-Messring GmbH, Hofheim-Ts, Germany, declare under our sole responsibility that the product: Micro Flow Meter Model: LFM to which this declaration relates is in conformity with the standards noted below: EN 61000-6-2:2005 Electromagnetic compatibility...
