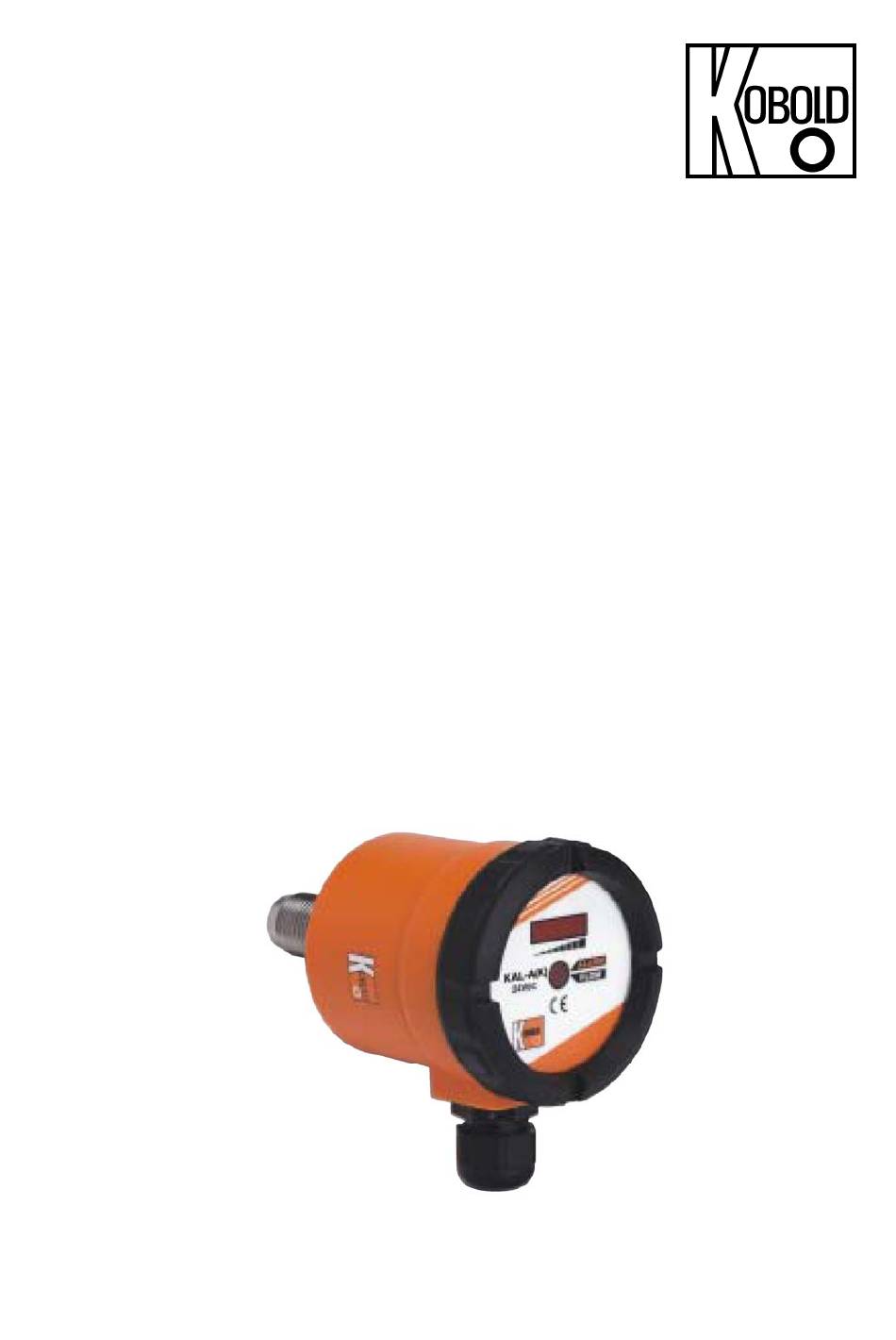

- Page 1 Operating Instruction Electronic Flow Meter / Monitor Compact Version Model: KAL-A KAL-AK...
-
Page 2: Table Of Contents
. D imensions ....................14 . E U Declaration of Conformance ..............15 Manufactured and sold by: Kobold Messring GmbH Nordring 22-24 D-65719 Hofheim Tel.: +49(0)6192-2990 Fax: +49(0)6192-23398 E-Mail: info.de@kobold.com Internet: www.kobold.com Page 2... -
Page 3: Note
4. Regulation Use The KOBOLD KAL-A.. Flow Meter is intended for use in measuring moderate flow rates of low-viscous or dirty liquids. The KOBOLD KAL-AK.. Flow Meter is intended for use in measuring and monitoring moderate flow rates of low-viscous or dirty liquids. -
Page 4: Operating Principle
Attention! The flow ranges specified in the table above have been calculated for each pipe diameter based on the known velocity range of the KAL-A(K). It must be noted that flow in pipes is non- uniform across the pipe cross section, and approaches zero at the pipe wall. -
Page 5: Mechanical Connection
Prior to installation Ensure that the actual system flow rate the is within the measuring range of the KAL-A(K). Ensure that the maximum system temperature and pressure are within the limits specified per section (see section 12. Technical Information) - Page 6 If the flow rate has reached the set point value selected by the user, then the LED is flashing. Bi-coloured LED (KAL-A) If bi-coloured LED is green: Instrument is in operation mode. If bi-coloured LED is flashing green: Instrument is in calibration mode.
- Page 7 The output selector switch is used to select between the output logic NPN and PNP. This adjustment is factory-made and needs not to be changed anymore under normal conditions. Output selector switch right: NPN-output Output selector switch left: PNP-output KAL-A(K) K05/1116 Page 7...
-
Page 8: Output
The reference point for the NPN-output is +24 VDC PNP-output The semiconductor output switches to +24 VDC or is highly resistant. The maximum output current is 400 mA. The reference point for the PNP-output is GND (GROUND = 0 VDC). Page 8 KAL-A(K) K05/1116... -
Page 9: Commissioning
When the bi-coloured LED stops flashing, the zero flow calibration is set. The device now switches automatically to the monitoring mode and displays no flow. The LED strip is not illuminated; only the threshold value LED is flashing. KAL-A(K) K05/1116 Page 9... - Page 10 The adjustment procedure is now complete. It may be repeated as often as necessary. c) Measuring mode After adjustment, the flow monitor is once again in measuring mode. The flow is constantly monitored and the actual value of the flow speed is displayed on the LED strip. Page 10 KAL-A(K) K05/1116...
- Page 11 Flow status (ideal conditions) LED actual value This is the most desirable status. Bi-coloured LED = green After the settings are completed, screw the cover tightly back on the housing KAL-A(K) K05/1116 Page 11...
-
Page 12: Maintenance
(calcination etc.) and if necessary be cleaned. 11. Diagnostics The KAL-A(K) continuously self monitors the sensing probe and the micro- processor system upon short-circuit and circuit breaking. Any fault in these parts of the electronics will be signalled by a flashing red bi-coloured LED and a simultaneous flashing LED-bar ( ... -
Page 13: Order Codes
KAL-AK1315AS KAL-AK1215AS KAL-AK1415AS 4-20 mA/ PG=cable gland KAL-AK1320AS KAL-AK1420AS* N/O contact M16x1,5 M 12 x 1 KAL-AK0312AS KAL-AK5308AS KAL-AK5408AS* NPN/PNP ST=Connector KAL-AK5315AS KAL-AK5415AS M12x1 switchable KAL-AK5320AS KAL-AK5420AS* Tri-Clamp, DIN 32676 KAL-AK4440AS** *stainless steel hexagon 1.4301 **stainless steel 1.4404 KAL-A(K) K05/1116 Page 13... -
Page 14: Dimensions
KAL-A(K) 14. Dimensions KAL-K.., KAL-A(K) A (mm) C (mm) D (mm) G ¼ G ½ G ¾ M12x1 ¼ NPT ½ NPT ¾ NPT KAL-... Sensor A (mm) C (mm) D (mm) M12x1 SW 19 G ¼ SW 19 G ½... -
Page 15: Eu Declaration Of Conformance
KAL-A(K) 15. EU Declaration of Conformance We, KOBOLD-Messring GmbH, Hofheim-Ts, Germany, declare under our sole responsibility that the product: KAL-A Electronic Flow Meter KAL-AK Electronic Flow Meter / Monitor to which this declaration relates is in conformity with the standards noted below:...
