Summary of Contents for Kobold SWK 1201

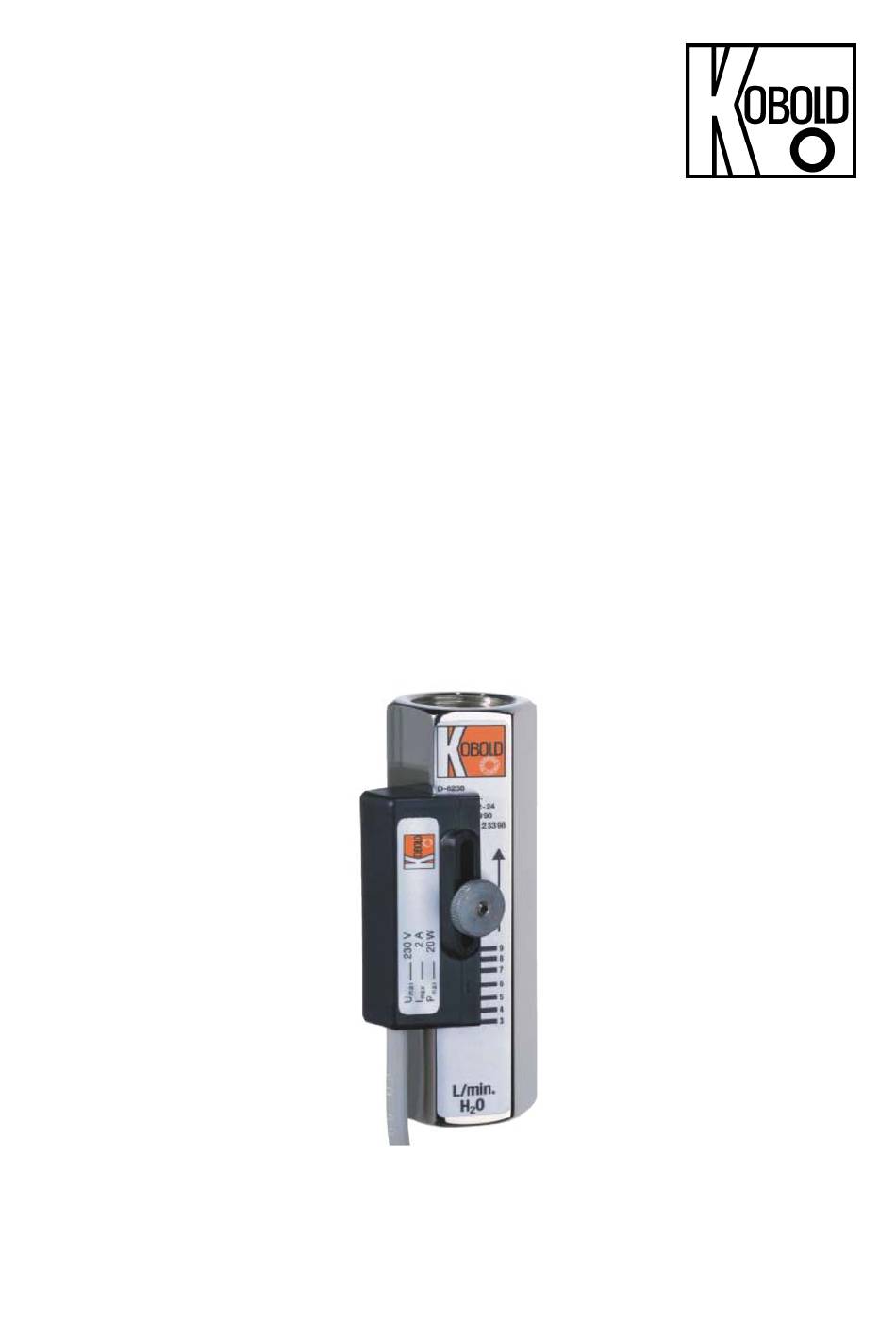

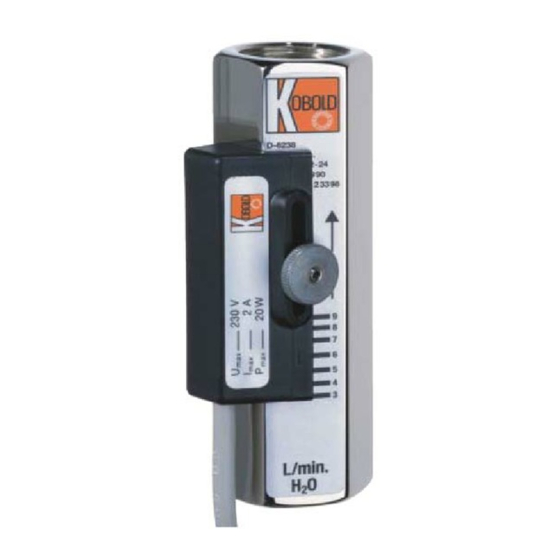

- Page 1 Operating Instructions Float Flow Meter / Monitor Model: SWK...
-
Page 2: Table Of Contents
Order Codes ....................9 Dimensions ....................10 EU Declaration of Conformance ..............11 Manufactured and sold by: Kobold Messring GmbH Nordring 22-24 D-65719 Hofheim Tel.: +49(0)6192-2990 Fax: +49(0)6192-23398 E-Mail: info.de@kobold.com Internet: www.kobold.com page 2 SWK K06/0618... -
Page 3: Note
2. Note Please read these operating instructions before unpacking and putting the unit into operation. Follow the instructions precisely as described herein. The devices are only to be used, maintained and serviced by persons familiar with these operating instructions and in accordance with local regulations applying to Health &... -
Page 4: Regulation Use
Attached and aligned pointer display (option) 5. Operating Principle KOBOLD Flow Meter/Monitor of type SWK operates according to the well known float principle, however without making use of the generally employed extended measuring tube. Inside a cylindrical flow-tube a float with aperture moves in the direction of the flow against the recoiling force of a spring. -
Page 5: Use In Hazardous Areas
6. Use in Hazardous Areas 6.1 General The Flow Meter/ Monitor does not have a potential igniting source of its own as a mechanical operating resource; it does not get any identification according to the guideline 94/9/EC ("ATEX 100a”). The mounted contact can be used in intrinsically safe circuits as a “simple apparatus”... -
Page 6: Mechanical Connection
7. Mechanical Connection Before installation: Make sure that the permitted maximum operating pressure and the operating temperature of the device are not exceeded. Make sure that the electrical supply for the devices corresponds with the operational data of the device. ... -
Page 7: Operation / Configuration / Adjustments
9. Operation / Configuration / Adjustments The commissioning of these units is prohibited in machines (as long as the guidelines 89/392/EWG remain enforced), which do not comply with these guidelines. The unit is supplied in 'ready for operation' condition. The switching point is adjusted on the lowest scale value. -
Page 8: Maintenance
[mbar] Material Material Material Material Material stainless stainless brass Brass steel steel SWK 1101 SWK 1201 SWK 2101 SWK 2201 SWK 1102 SWK 1202 SWK 2102 SWK 2202 SWK 1108 SWK 1208 SWK 1308 SWK 2108 SWK 2208 SWK 1118... -
Page 9: Order Codes
Material Material stainless stainless brass brass steel steel 0.05 - 0.1 G 1/2 SWK 1101 SWK 1201 SWK 2101 SWK 2201 0.1 - 0.2 G 1/2 without = N/O SWK 1102 SWK 1202 SWK 2102 SWK 2202 0.2 - 0.8... -
Page 10: Dimensions
13. Dimensions page 10 SWK K06/0618... -
Page 11: Eu Declaration Of Conformance
14. EU Declaration of Conformance We, KOBOLD Messring GmbH, Hofheim-Ts, Germany, declare under our sole responsibility that the product: Float Flow Meter / Monitor Model: SWK... to which this declaration relates is in conformity with the standards noted below: EN 61010-1:2011...
