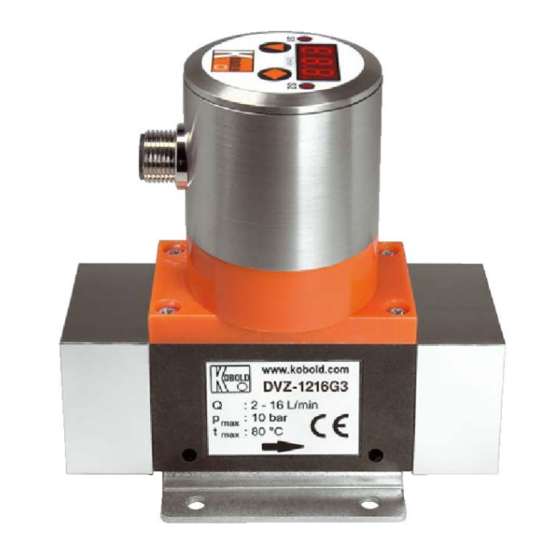

Compact vortex flow meter
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Operating Instructions
for
Compact Vortex Flow Meter
Model: DVZ

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DVZ series and is the answer not in the manual?

Questions and answers

Related Manuals for Kobold DVZ series

Summary of Contents for Kobold DVZ series

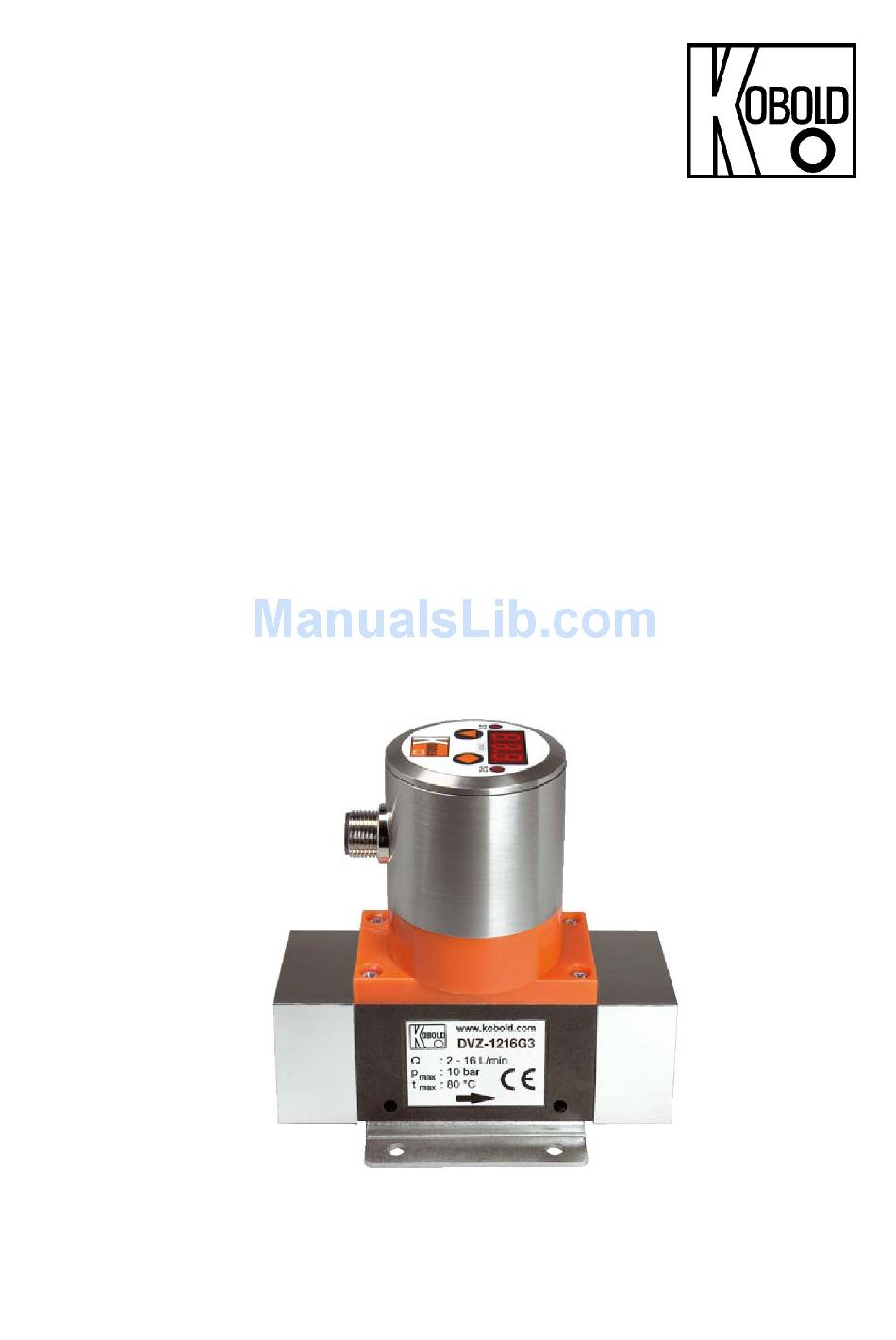

  • Page 1 Operating Instructions Compact Vortex Flow Meter Model: DVZ...

  • Page 2: Table Of Contents

    12. Order Codes ....................20 13. Dimensions ....................22 13.1 Dimensions - Sensor................22 13.2 Dimensions - Electronics ..............28 14. Declaration of Conformance ............... 31 Manufactured and sold by: Kobold Messring GmbH Nordring 22-24 D-65719 Hofheim Tel.: +49(0)6192-2990 Fax: +49(0)6192-23398 E-Mail: info.de@kobold.com Internet: www.kobold.com...

  • Page 3: Note

    2. Note Please read these operating instructions before unpacking and putting the unit into operation. Follow the instructions precisely as described herein. The devices are only to be used, maintained and serviced by persons familiar with these operating instructions and in accordance with local regulations applying to Health &...

  • Page 4: Operating Principle

    5. Operating Principle The compact KOBOLD Vortex flow meter, model DVZ, is used for measuring and monitoring smaller and medium-sized flow of low viscosity, water-like fluids in pipes. The device works using the vortex process, making it virtually maintenance-free. This involves the installation of a sharp-edged object (the vortex generator) in the flow duct.

  • Page 5: Electrical Connection

    Nominal size of Proper tightening torque threads 3/8” 22 bis 24 Nm 1/2” 28 bis 30 Nm 3/4” 28 bis 30 Nm 1” 36 bis 38 Nm Note! The switch may be damaged if it is tightened above the tightening torque range. Also, if it is tightened below the tightening torque range, the connecting thread section may loosen.

  • Page 6: Dvz

    7.2 DVZ-...S300 Output Output Common Output 7.3 DVZ-...S30D Output Output 7.4 DVZ-...F300; DVZ-...L3x3 Connection example DVZ-...L3x3 n.c. n.c. Signal Signal page 6 DVZ K04/0810...

  • Page 7: Dvz

    7.5 DVZ-...L443 Signal 7.6 DVZ-...C30 Switch Out 2 Switch Out 1 7.7 DVZ-...C34 0(4)-20 mA Switch out 1 DVZ K04/0810 page 7...

  • Page 8: Dvz

    DVZ-...Ex4R, DVZ-...Gx4R Cable connection DVZ-...E14R DVZ-...G14R Wire number Counter electronics Dosing electronics +24 V +24 V 4-20 mA 4-20 mA n. c. control 2* reset part quantity control 1* relay S1 relay S1 normally open normally open relay S2 relay S2 normally open normally open *Start-dosing: Control 1 connect with GND...

  • Page 9: Operation

    8. Operation The units are preset and after electrical connection ready for operation. 8.1 Switch point setting DVZ-...S300, DVZ-…S30D Switch setting Switch point switch function deactivated start of measuring range 20% of f.s. 30% of f.s. 40% of f.s. 50% of f.s. 60% of f.s.

  • Page 10: Adjustments - Compact Electronic Dvz

    9. Adjustments – Compact Electronic DVZ-...C3.. Connect the compact electronic according to previous connection diagram. After power on, the measuring range (end current) will be shown for 3 seconds. 9.1 Button function In the normal mode (measuring mode) : Press 3 sec. Setup mode : Switch point/Window point In the set-up mode...

  • Page 11: Value Setting

    9.3 Value setting From the main menu item (for example: switch point, " SPo "), press the " " button to set the value. The flow chart below illustrates the universal routine for changing individual parameters. [From the main menu item] 1.

  • Page 12: Set-Up Mode

    9.4 Set-up mode Compact electronic DVZ-...C30.. 3 sec Code entering Value setting Switching point 1 Value setting Switching point 2 Value setting Hysteresis Value setting Contact 1 function Save Frequency Contact 2 function Save Code entering Value setting page 12 DVZ K04/0810...
  • Page 13 Compact electronic DVZ-...C34 3 sec Code entering Value setting Switching point Value setting Hysteresis Value setting Window point Value setting Contact function Save Frequency Start current 7sec Value setting End current 7sec Value setting DVZ K04/0810 page 13...

  • Page 14: Main Menu Items

    0-20 Analog output choosing 7sec Storing 4-20 Changing code Value setting 9.5 Main menu items 9.5.1 Switching point The switching point is entered in the menu item " Spo, SP1, SP2 ". A setting value between 000 and 999 can be selected. This value can also include a decimal point.
  • Page 15 If the window point (duo-point) is less than or equal to the switching point, an error report (Er4) will be indicated on the display and its value is deleted and its function is invalid (in the case that the window point and switching point out of adjustment). The value is set in the same way as the switching point.

  • Page 16: Maintenance

    9.5.4 Contact type The function of the transistor switching output is set in menu item " Con, Co1 or Co2 ". The switching function switches from no - N/O contact to nc - N/C to Fr – frequency (only Con and Co1) and back.

  • Page 17: Technical Information

    11. Technical Information Measurement process: Vortex principle Mounting position: any, flow in direction of arrow Response time: Accuracy: ±2.5% of f.s. Repeat accuracy: ±1% of f.s. Inlet / outlet runs: 10xDN Protection: IP 65 Media temperature: 0...80 °C Ambient temperature: -10...+60 °C Max.
  • Page 18 Wetted parts Sensor housing: PPS, fibreglass-reinforced Sensor: PVDF Connections: brass (from 32 L/min nickel plated from 40 L/min blank) or stainless steel 1.4404 Bluff body: PPS, fibreglass-reinforced or oxide ceramic (non-wear version) Seal: NBR, EPDM or FPM DVZ-...S300, DVZ-…S30D Display: duo-LED for switching condition and when range limit is exceeded Switching output:...
  • Page 19 DVZ-...C3 (Compact electronics)* Display: 3-digit LED Analogue output: (0)4...20 mA adjustable, max. 500 Ω (only DVZ-…C34*) Switching output: 1 or 2 Open Collector PNP or NPN, set at factory, max. 300 mA Contact function: N/C, N/O, frequency, programmable (frequency output not calibrated, frequency at f.s.

  • Page 20: Order Codes

    12. Order Codes Fixed connection Order details (Example: DVZ-1 1 04 G2 S300 ) Storage body/ Connection Connection Measuring range Electronics housing material/seal fixed ..G2.. = G 1/4 switching output ..G3.. = G 3/8 ..S300 = relay, M12-plug ..04.. = 0.5 - 4.5 L/min ..G4..
  • Page 21 Axial rotatable connection Connection Storage body/ Connection material/ Measuring range Electronics housing rotatable Seal ..B2.. = G 1/4 switching output ..B3.. = G 3/8 ..S300 =relay, M12-plug ..04.. = 0.5 - 4.5 L/min ..B4.. = G 1/2 ..S30D =active 24 VDC, M12-plug ..07..

  • Page 22: Dimensions

    13. Dimensions 13.1 Dimensions - Sensor DVZ-sensor with fixed connection, measuring range up to 32 L/min Meas. ..04/..07/ ..04/..07/..10/ ..04/..07/..10 ..16/..22/..32 ..22/..32 range ..10/..16 ..16/..22/..32 1/4" 3/8" 1/2" 3/4" 1" page 22 DVZ K04/0810...
  • Page 23 DVZ-sensor with fixed connection, measuring range from 40 L/min DVZ K04/0810 page 23...
  • Page 24 DVZ-sensor with strengthened connection, measuring range up to 32 L/min Meas. ..04/..07/ ..04/..07/..10/ ..04/..07/..10 ..16/..22/..32 ..22/..32 range ..10/..16 ..16/..22/..32 1/4" 3/8" 1/2" 3/4" 1" page 24 DVZ K04/0810...
  • Page 25 DVZ-sensor with strengthened connection, measuring range from 40 L/min DVZ K04/0810 page 25...
  • Page 26 DVZ-Sensor with rotatable connection, measuring range up to 32 L/min ..04/..07/ Meas. ..04/..07/ ..04/..07/ ..16/..22/ ..10/..16/ ..22/..32 range ..10 ..10/..16 ..32 ..22/..32 1/4" 3/8" 1/2" 3/4" 1" page 26 DVZ K04/0810...
  • Page 27 DVZ-Sensor with rotatable connection, measuring range from 40 L/min ..40/..50/ ..40/..50/ Meas. ..60/..80/ ..60/..80/ range ..99 ..99 3/4" 1" DVZ K04/0810 page 27...

  • Page 28: Dimensions - Electronics

    13.2 Dimensions - Electronics DVZ-...S30x, DVZ-...F3x0, DVZ-...L3x3 DVZ-...L443 page 28 DVZ K04/0810...
  • Page 29 DVZ-...C3xx DVZ K04/0810 page 29...
  • Page 30 DVZ-...Exxx, DVZ-...Gxxx page 30 DVZ K04/0810...

  • Page 31: Declaration Of Conformance

    14. Declaration of Conformance We, KOBOLD Messring GmbH, Hofheim-Ts, Germany, declare under our sole responsibility that the product: Compact Vortex Flow Meter Model: DVZ to which this declaration relates is in conformity with the standards noted below: EN 61326/A1 2004-05 Electrical equipment for control and instrumentation technology and laboratory use –...
