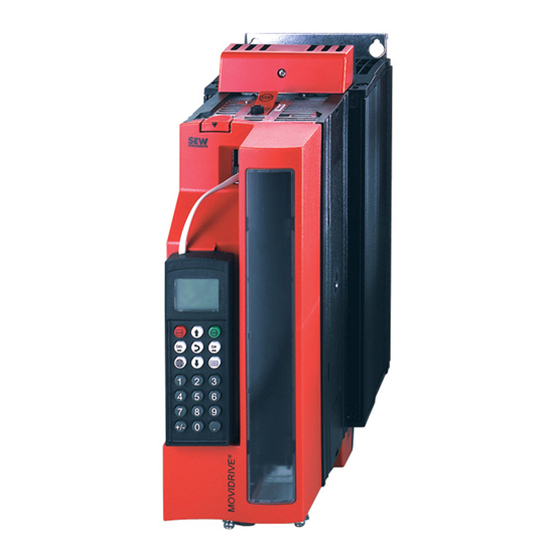

SEW-Eurodrive MOVIDRIVE MDX60B Manual

Hide thumbs Also See for MOVIDRIVE MDX60B:
Table of Contents

Advertisement

Quick Links

Download this manual
*27778037_0122*
Drive Technology \ Drive Automation \ System Integration \ Services
Manual
®
MOVIDRIVE
MDX60B/61B Functional Safety
Edition 01/2022
27778037/EN

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MOVIDRIVE MDX60B and is the answer not in the manual?

Questions and answers

Related Manuals for SEW-Eurodrive MOVIDRIVE MDX60B

Summary of Contents for SEW-Eurodrive MOVIDRIVE MDX60B

  • Page 1 *27778037_0122* Drive Technology \ Drive Automation \ System Integration \ Services Manual ® MOVIDRIVE MDX60B/61B Functional Safety Edition 01/2022 27778037/EN...
  • Page 2 SEW-EURODRIVE—Driving the world...

  • Page 3: Table Of Contents

    Contents Contents General information........................  5 About this documentation .................... 5 Underlying standards ...................... 5 Structure of the safety notes ................... 5 1.3.1 Meaning of signal words ................  5 1.3.2 Structure of section-related safety notes............  6 1.3.3 Structure of embedded safety notes ..............   6 Rights to claim under limited warranty ................ 6 Decimal separator in numerical values ................ 6 Copyright notice ...................... 7...
  • Page 4 Contents Safety characteristics.................... 29 Electronics data X17: Signal terminal block for STO safety contact ...... 29 Index ............................  31 ® Manual – MOVIDRIVE MDX60B/61B Functional Safety...

  • Page 5: General Information

    General information About this documentation General information About this documentation The documentation at hand is the original. This documentation is an integral part of the product. The documentation is intended for all employees who perform work on the product. Make sure this documentation is accessible and legible. Ensure that persons respon- sible for the systems and their operation as well as persons who work on the product independently have read through the documentation carefully and understood it.

  • Page 6: Structure Of Section-Related Safety Notes

    General information Rights to claim under limited warranty 1.3.2 Structure of section-related safety notes Section-related safety notes do not apply to a specific action but to several actions pertaining to one subject. The hazard symbols used either indicate a general hazard or a specific hazard.

  • Page 7: Copyright Notice

    General information Copyright notice Copyright notice © 2022 SEW‑EURODRIVE. All rights reserved. Unauthorized reproduction, modifica- tion, distribution or any other use of the whole or any part of this documentation is strictly prohibited. Document content ® This documentation contains conditions and amendments for MOVIDRIVE MDX60B/61B in safety-related applications.

  • Page 8: Integrated Safety Technology

    Integrated safety technology General Integrated safety technology General ® The safety technology of MOVIDRIVE   MDX60B/61B described below has been de- veloped and tested in accordance with the following safety requirements: • PL d according to EN ISO 13849-1 This was certified by TÜV Nord. Copies of the TÜV certificate can be obtained from SEW‑EURODRIVE.

  • Page 9: Schematic Representation "Safety Concept For Movidrive

    Integrated safety technology Schematic representation of the "safety concept for MOVIDRIVE B" Schematic representat ion of the "safety concept for MOVIDRIVE B" ® Schematic representation "Safety concept for MOVIDRIVE  B" S24V S0V24 L1 L2 L3 9007201052003595 [1] Safety-related DC 24 V voltage supply [2] Electrical isolation [3] Voltage supply for controlling the power transistors [4] Pulse width modulated signals for the output stage...

  • Page 10: Safety Subfunctions

    Integrated safety technology Safety subfunctions Safety subfunctions The following drive-related safety functions can be used: • STO (Safe Torque Off according to EN 61800-5-2) by disconnecting the STO in- put. If the STO function is activated, the frequency inverter no longer supplies power to the motor for generating torque.

  • Page 11: Restrictions

    Integrated safety technology Restrictions Restrictions • Note that if the drive does not have a mechanical brake, or if the brake is defec- tive, the drive may coast to a halt (depending on the friction and mass moment of inertia of the system). In case of regenerative loads, the drive can even accelerate. This must be taken into account in a risk assessment of the system/machine.

  • Page 12: Safety Requirements

    Safety requirements Requirements Safety requirements Requirements requirement safe operation that safety functions ® MOVIDRIVE   MDX60B/61B are properly integrated into an application-specific, higher-level safety function. In any case, a system/machine-specific risk assessment must be carried out by the system/machine manufacturer and taken into consideration ®...

  • Page 13: Movidrive ® Mdx61B For A Connection Voltage Of Ac 230 V

    Safety requirements Approved devices Power rating Size Type MDX61B0110-5A3-4-XX MDX61B0150-503-4-XX MDX61B0220-503-4-XX MDX61B0300-503-4-XX MDX61B0370-503-4-XX MDX61B0450-503-4-XX MDX61B0550-503-4-XX MDX61B0750-503-4-XX MDX61B0900-503-4-XX MDX61B1100-503-4-XX MDX61B1320-503-4-XX MDX61B1600-503-4-XX MDX61B2000-503-4-XX MDX61B2500-503-4-XX ® 3.2.2 MOVIDRIVE MDX61B for a connection voltage of AC 230 V Power rating Size Type MDX61B0015-2A3-4-XX MDX61B0022-2A3-4-XX MDX61B0037-2A3-4-XX MDX61B0055-2A3-4-XX MDX61B0075-2A3-4-XX MDX61B0110-203-4-XX...

  • Page 14: Requirements On The Installation

    Safety requirements Requirements on the installation Requirements on the installation • The safety-related DC 24  V supply voltage must be routed according to EMC guidelines as follows: – Outside an electrical installation space, shielded cables must be routed perma- nently (fixed) and protected against external damage, or other equivalent mea- sures have to be taken.
  • Page 15 Safety requirements Requirements on the installation – Short circuits between a conductor and any exposed conductive part within an installation space. • For applications with safety-related drive disconnection, remove the jumpers on X17:1 to X17:4 (see following figure). 1797603595 Removing jumpers ®...

  • Page 16: Requirements On The External Safety Controller

    Safety requirements Requirements on the external safety controller Requirements on the external safety controller [2] U 18014400103440907 [1] Safety relay with approval [2] DC 24 V voltage supply [3] Fuses in accordance with the manufacturer's specifications of the safety relay [4] Safety-related DC 24 V voltage supply [5] Reset button for manual reset [6] Approved emergency stop actuating device A safety relay can be used as an alternative to a safety controller.

  • Page 17: Requirements On Startup

    Safety requirements Requirements on startup – SEW‑EURODRIVE recommends to switch off the 24  V voltage supply at two poles. • The values specified for the safety controller must be strictly adhered to when designing the circuit. • The switching capacity of the safety relays or the relay outputs of the safety con- troller must correspond at least to the maximally permitted, limited output current of the 24 V supply voltage.

  • Page 18: Connection Variants

    Connection variants General information Connection variants General information Generally, all the connection variants listed in this documentation are permitted for safety-relevant applications as long as the basic safety concept is met. This means that you must always make sure that the DC 24 V safety inputs are operated by an ex- ternal safety relay or safety controller, thereby preventing an automatic restart.

  • Page 19: Requirements

    Connection variants Requirements Requirements 4.2.1 Use of safety relays The requirements of the manufacturers of safety relays (such as protecting the output contacts against welding) or of other safety components must be strictly observed. For cable routing, the basic requirements apply as described in this documentation. ®...

  • Page 20: Disconnection Of A Single Drive

    Connection variants Disconnection of a single drive Disconnection of a single drive 4.3.1 STO according to PL d (EN ISO 13849-1) The procedure is as follows: • Recommendation: X13:1 and X13:4 are disconnected at the same time, e.g. in the event of an emergency stop. •...
  • Page 21 Connection variants Disconnection of a single drive Binary control with safety relay (single-channel) Mains Higher level +24 V controller Start Emergency stop Stop Feedback emergency stop Safety relay '0'=Ctrl. inhibit '1'=Ctrl. enable Reset '0'=Stop '1'=START CW '0'=Rapid stop '1'=Enable 7 DCOM MDX60B/61B DGND VO24...

  • Page 22: Ss1-T In Accordance With Pl D (En Iso 13849-1)

    Connection variants Disconnection of a single drive Fieldbus control with safety PLC Mains +24 V Start Emerg. stop Stop Higher-level controller PROFINET Standard Safe PROFIsafe DFS 21B (F_DO_M) (F_DO_P) (GND) (24 V_LS) (GND) (24 V_PS) MDX60B/61B DGND VO24 SOV24 SVI24 9007202486522635 INFORMATION •...
  • Page 23 Connection variants Disconnection of a single drive INFORMATION The shown SS1-t disconnections can be used up to PL d according to EN ISO 13849-1, taking the chapter "Requirements" (→ 2 19) into consideration. Binary control with safety relay (dual-channel) Mains Higher-level +24 V controller Start Emerg.
  • Page 24 Connection variants Disconnection of a single drive INFORMATION With single-channel disconnection, you have to make certain fault assumptions and provide corresponding fault exclusions. Observe chapter "Require- ments" (→ 2 19). SEW‑EURODRIVE recommends switching off the 24 V voltage supply of the STO in- put X17 at two poles. Binary control with safety PLC Mains Higher-level...

  • Page 25: Disconnection Of Group Drives

    Connection variants Disconnection of group drives INFORMATION • Controller inhibit/enable and rapid stop/enable are set via fieldbus. • Pay attention to the respective fieldbus manuals, e.g. – "DFS11B PROFIBUS DP-V1 Fieldbus Interface with PROFIsafe" manual – "DFS21B PROFINET IO Fieldbus Interface with PROFIsafe" manual Disconnection of group drives ®...

  • Page 26: Implementing Group Disconnection With A Safety Relay

    Connection variants Disconnection of group drives 5. When using self-testing semiconductor outputs, the increased capacitances of STO input X17 caused by group disconnection (parallel connection) might result in diagnostics errors. 4.4.2 Implementing group disconnection with a safety relay Group disconnection with one safety relay ®...

  • Page 27: Sto According To Pl D (En Iso 13849-1)

    Connection variants Disconnection of group drives 4.4.3 STO according to PL d (EN ISO 13849-1) The procedure is as follows: • Recommendation: X13:1 and X13:4 are disconnected at the same time, e.g. in the event of an emergency stop. • The 24 V safety input X17 is disconnected. •...
  • Page 28 Connection variants Disconnection of group drives ® Example: Group shut-off with 3 MOVIDRIVE MDX60B/61B Mains Higher-level +24 V controller Start Emerg. stop Stop Power supply connection Feedback emergency stop Safety '0'=Ctrl. inhibit relay '1'=Ctrl. enable Reset '0'=Stop '1'=START CW '0'=Rapid stop '1'=Enable 7 DCOM MDX60B/61B...

  • Page 29: Technical Data

    Technical data Safety characteristics Technical data ® The following table shows the technical data of MOVIDRIVE MDX60B/61B in relation to the integrated safety equipment. The technical data and approvals from the relevant ® MOVIDRIVE MDX60B/61B operating instructions must be observed. Safety characteristics Characteristic safety values Tested safety class/underlying stan-...
  • Page 30 Technical data Electronics data X17: Signal terminal block for STO safety contact Min. Typical Max. Input voltage range DC 19.2 V DC 24 V DC 30 V Time to inhibit output stage 100 ms Time for restart 200 ms ® Manual – MOVIDRIVE MDX60B/61B Functional Safety...
