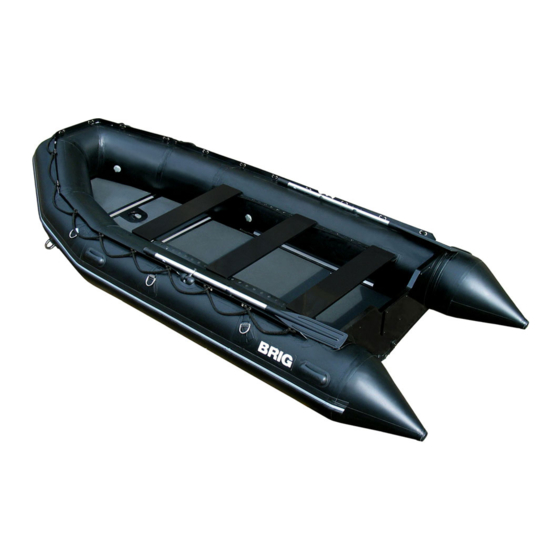

- Page 1 INFLATABLE HEAVY-DUTY BOAT "BRIG" Design category (94/25/EC): ISO6185-3: Category VII User's manual...
-
Page 2: Specifications
I N T R O D U C T I O N The "BRIG" inflatable heavy-duty boat, hereinafter referred to as the "Boat", was designed in two modifications HD410 and HD460 by the "BRIG" Company basing on the principal provisions of International Organization for Standardization ISO 6185 "Plastomer and Elastomer Inflatable Boats". - Page 3 3. COMPLETE DELIVERY SET The "BRIG" Boat is provided as package, as specified in Table 2. Table 2 Quantity Package No. DESCRIPTION H D 4 1 0 H D 4 6 0 Inflatable boat Inflatable keel Rigid boarding: boarding segment...
-
Page 4: Boat Design
4. BOAT DESIGN In the base plane projection the Boat is of U-shaped configuration (Fig.1). The body of the Boat consists of inflatable sides (balloons) interconnected by means of a bottom part and pasted in between transom sides. The balloon is separated by means of inner elastic partitions into five independent compartments of a similar volume, each being provided with a fill valve. - Page 5 Fig.1 1 – inflatable balloon; – rowlock; 2 – elastic partitions; – solid rigid separable boarding; 3 – fill valve; – lifeline stanchion; 4 – transom; – l i f e l i n e ; 5 – water discharge valve; –...
-
Page 6: Design And Operation
DESIGN OPERATION BOAT COMPONENTS ASSEMBLIES 5.1. ENGINE UNIT The design of the Boat provides accommodation of an outboard engine with an elongated deadwood (with the transom height being 510 mm). The engine is fixed on the transom in a place specially provided for the purpose. The fuel tank is arranged in a space specially provided on the boarding close to the transom. - Page 7 5.3. VALVES The Boat design provides for two types of valves described below. 5.3.1.Inflation/deflation valve. The inflation/deflation valve is installed in each compartment of the balloon and consists of (fig.3): - housing 1, - cup 2 with strap 3, - washer with gasket 4, - nut 5, - spindle 6 with spring 7 and cup diaphragm 8.
- Page 8 5.4. SUSPENSION OF BOAT ON HOOKS The arrangement of suspension of Boat HD410 and HD460 is identical. Provided with the purpose of Boat suspension are six suspension rings (three rings on each side, Fig.5). If necessary, the Boat may be fixed by means of eight hooks: six hooks - to the rings and two hooks - to the transom lacing eyes.
- Page 9 Assemble the boarding according to the following procedure: 6.4.Insert the boarding segment No.5 in the boat between the stops provided on the transom (Fig.7). The segment number is applied on the section upper surface in its left lower corner. Attention! Assemble the boarding so that the non-slip coating of the sections may be faced upwards.
- Page 10 6.9.Set the lateral beams in the cut-outs provided on segments No.5, No.4, No.3 (Fig.10). To do it, place the beam in the boat from one side in opposition to the cut-outs, hook the boarding edge with the beam from below and make a pushing motion from top to bottom and forward.
-
Page 11: Safety Precautions
6.15.Bring the pressure in the compartments up to the operating value (0.15 kgf/cm2). Afterwards, close reliably the inlet holes of the valves. 6.16.Fill the inflatable keel with air up to the rated pressure value. 6.17.Assemble the oars by entering the removable parts with blades into the locks until the click. -
Page 12: Maintenance
It’s forbidden to lift/to lower the Boat with the people inside. 7.8.In case of alongside landing of the Boat and its lying alongside a vessel, an excessive friction of the Boat against the board shall be avoided. 7.9.Any cargo having sharp edges, as well as active chemical agents which may cause damage to the coating and textile base of the material of the Boat sides and bottom shall not be allowed to be loaded in the Boat. - Page 13 8.4.No water shall penetrate inside the balloons of the Boat and any contacts of fuel and oil with its external surfaces shall be avoided. In case of fouling of surfaces of the Boat with combustible materials, a fouled place shall be thoroughly washed with soapy water and dried out. Avoid an excessive increase of pressure in the balloons of the Boat, especially, by its exposure to direct sunlight.
-
Page 14: Troubles And Trouble-Shooting
POTENTIAL TROUBLES TROUBLE-SHOOTING METHODS. Type of trouble Probable cause Trouble-shooting method 1. Boat's body is not air-tight Puncture, cut, stripping of fabric Apply strengthening means. Unsticking of tapes, lamination of seals Stick tapes, bond seals. Leakages through fill valves Check tightness of connection between valves and flanges. - Page 15 C O N T E N T S INTRODUCTION PURPOSE SPECIFICATIONS COMPLETE DELIVERY SET BOAT DESIGN DESIGN AND OPERATION OF BOAT COMPONENTS AND ASSEMBLIES 5.1. ENGINE UNIT 5.2. RIGID BOARDING 5.3. VALVES 5.4. SUSPENSION OF BOAT ON HOOKS ASSEMBLY PROCEDURE SAFETY PRECAUTIONS AT OPERATION MAINTENANCE SERVICING STORAGE AND TRANSPORTATION...
- Page 16 inflatable boats M O D E L SERIAL No. Date of manufacture Quality inspection stamp...
