HDMI EXTENDER
4K@60HZ
FEATURES
This is a point-to-point extender kit, it can realize zero-latency transmission. The
4K@60Hz HDMI signal can be extended by 70m through CAT6/6A/7network cable.
It supports HDMI loop out, IR passthrough. 3.5 mm audio output, ...This is a reliable,
ultra-high-definition video transmission solution, which is widely used in security
monitoring, home theater, broadcasting, training and other fields.
• Zero-latency transmission
• Extend 4K@60Hz HDMI signal up to 70m over Cat6/6A/7 cable
• The receiver supports 3.5 mm stereo output
• Supports HDR10
• Supports EDID Passthrough and audio downscaling
• The transmitter supports HDMI loop out
• Supports IR passthrough
• Lightning protection, surge protection, EDS protection

PACKAGE CONTENTS

Make sure your package includes the following items:
• Transmitter unit *1
• Receiver unit *1
• Power supply DC5V/1A*2
• IR Blaster extension cable *1
• IR receiver extension cable *1
• Mounting brackets *4; screws *10
• User' s manual

INSTALLATION REQUIREMENTS

Signal source
Cable
Display device

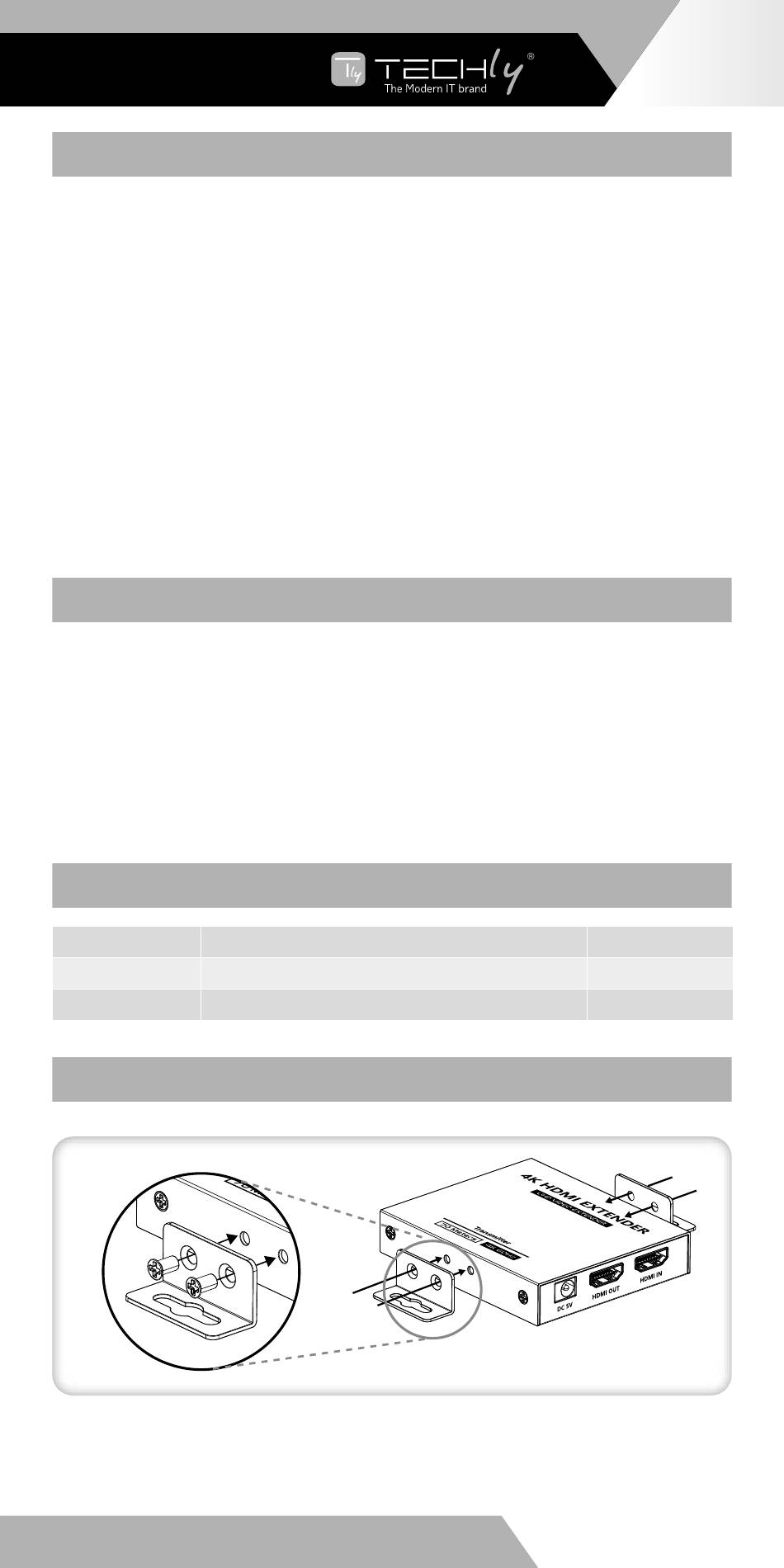

WALL MOUNTING

Install the mounting ears on the unit according with the diagram and select the wall
mounting position to fix it.
Devices with HDMI port (PC, DVR, NVR, etc)
Cat6/6A/7 following standard EIA-568B
TV, projectors, ... with HDMI port
EN - 3
HDMI cable ≤ 5m
Cat6/6A/7 ≤ 70m
HDMI cable ≤ 5m
