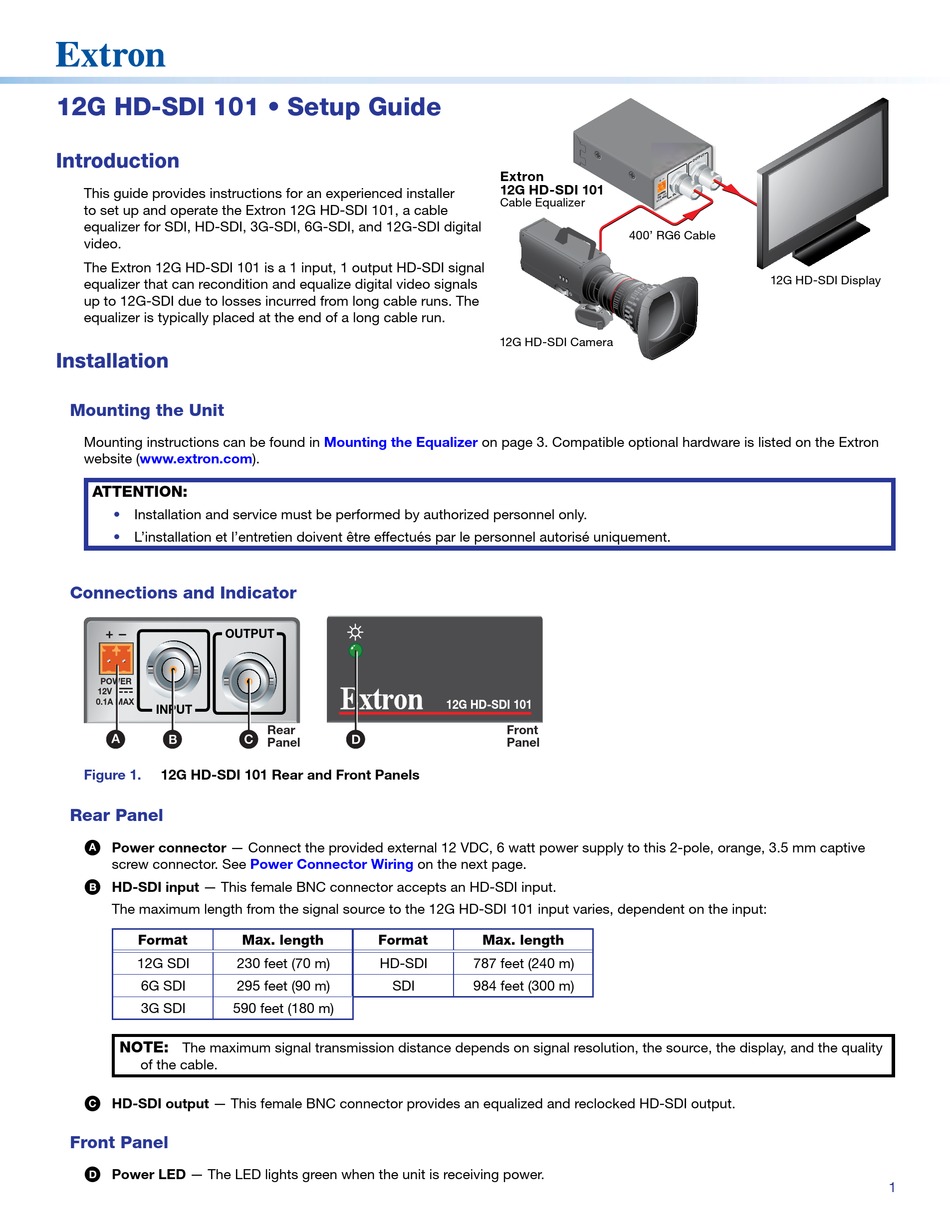

12G HD-SDI 101 • Setup Guide

Introduction

This guide provides instructions for an experienced installer
to set up and operate the Extron 12G HD-SDI 101, a cable
equalizer for SDI, HD-SDI, 3G-SDI, 6G-SDI, and 12G-SDI digital
video.
The Extron 12G HD-SDI 101 is a 1 input, 1 output HD-SDI signal
equalizer that can recondition and equalize digital video signals
up to 12G-SDI due to losses incurred from long cable runs. The
equalizer is typically placed at the end of a long cable run.

Installation

Mounting the Unit

Mounting instructions can be found in
website (www.extron.com).
ATTENTION:
• Installation and service must be performed by authorized personnel only.
• L'installation et l'entretien doivent être effectués par le personnel autorisé uniquement.

Connections and Indicator

OUTPUT
POWER
12V
0.1A MAX
INPUT
A A B B
Figure 1. 12G HD-SDI 101 Rear and Front Panels
Rear Panel
Power connector — Connect the provided external 12 VDC, 6 watt power supply to this 2-pole, orange, 3.5 mm captive
A
screw connector. See
HD-SDI input — This female BNC connector accepts an HD-SDI input.
B
The maximum length from the signal source to the 12G HD-SDI 101 input varies, dependent on the input:
Format
12G SDI
6G SDI
3G SDI 590 feet (180 m)
NOTE:
The maximum signal transmission distance depends on signal resolution, the source, the display, and the quality
of the cable.
HD-SDI output — This female BNC connector provides an equalized and reclocked HD-SDI output.
C
Front Panel
Power LED — The LED lights green when the unit is receiving power.
D
Mounting the Equalizer
Rear
C C D D
Panel
Power Connector Wiring
Max. length Format
230 feet (70 m) HD-SDI
295 feet (90 m) SDI
Extron
12G HD-SDI 101
Cable Equalizer
12G HD-SDI Camera
on page 3. Compatible optional hardware is listed on the Extron
12G HD-SDI 101
Front
Panel
on the next page.
Max. length
787 feet (240 m)
984 feet (300 m)
U T
T P
O U
R T
W E P U
P O
IN
V A X
1 2
A M
0 .1
400' RG6 Cable
12G HD-SDI Display
