Specifications — DVI-RGB 150 DVI Interface

Video

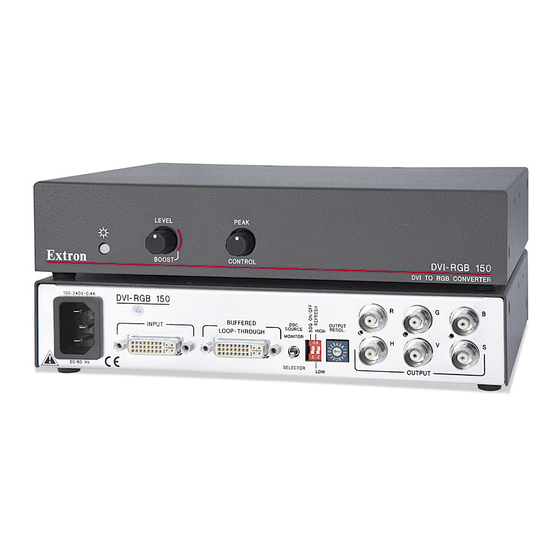

The DVI-RGB 150 converts a single link DVI signal to an analog RGB signal.
Using an adaptor (the Extron HDMI to DVI-D adapter, part #26-616-01), the DVI-RGB 150 can accept
HDMI signals. It converts HDMI digital RGB signals, but does not support the HDMI digital
component (YCrCb) signal format.

Video input and loop-through

Number/signal type ................... 1 single link DVI-D digital video input
Connectors .................................... 1 DVI-D female (DVI input)
TMDS nominal level ................... 0.4 V to 0.6 V swing
TMDS impedance ........................ 100 ohms
DC offset (max. allowable) ......... ±0.5 V

Video output

Number/signal type ................... 1 RGBHV, RGBS, RGsB
Connectors .................................... 6 BNC female
Nominal level ............................... 0.7 Vp-p for RGB
Level adjustment range .............. -3 dB to 6 dB (x0.7 to x2)
Peaking adjustment range .......... 0 dB to 6 dB (x1 to x2) at 100 MHz
Impedance .................................... 75 ohms
Output resolution ........................ Follows input, determined by the local DVI loop-through monitor or by the
Resolution selector resolutions and rates
Return loss .................................... -35 dB @ 5 MHz
DC offset ....................................... ±10 mV maximum with input at 0 offset
Output cable driving distance ... 150' (45 m) at 1600 x 1200 with Extron MHR cable

Sync

Output type .................................. RGBHV, RGBS, RGsB
Output level .................................. TTL (5 Vp-p, unterminated)
Output impedance ...................... 75 ohms
Polarity .......................................... Positive or negative (follows input)
1-2
DVI-RGB 150 DVI Interface • Specifications
1 single link DVI-D buffered loop-through
1 DVI-D female (DVI loop through)
selector on this product.
Setting Resolution Refresh Low Refresh High
0 640x480 60 Hz
1 800x600 60 Hz
2 852x480 60 Hz
3 1024x768 60 Hz
4 1024x852 60 Hz
5 1280x768 60 Hz
6 1280x1024 60 Hz
7 1365x768 60 Hz
8 1366x768 60 Hz
9 1400x1050 60 Hz
A 1600x1200 60 Hz
B 480p 60 Hz
C 576p 50 Hz
D 720p 50 Hz
E 1080i 50 Hz
F 1080p 50 Hz
250' (60 m) at 1024 x 768 with Extron MHR cable
75 Hz
75 Hz
75 Hz
75 Hz
75 Hz
75 Hz
75 Hz
75 Hz
75 Hz
60 Hz
60 Hz
60 Hz
50 Hz
60 Hz
60 Hz
60 Hz
