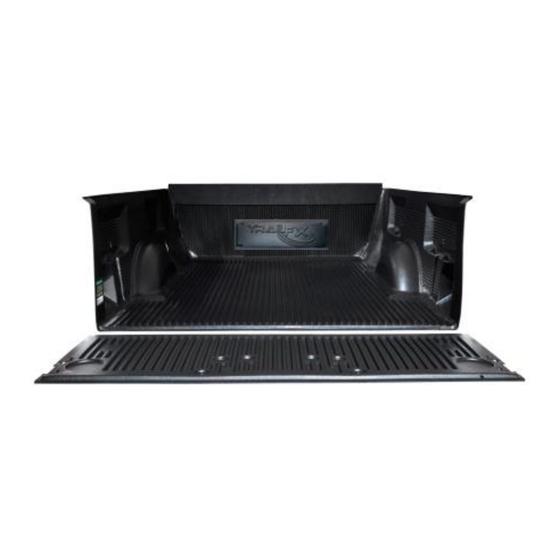

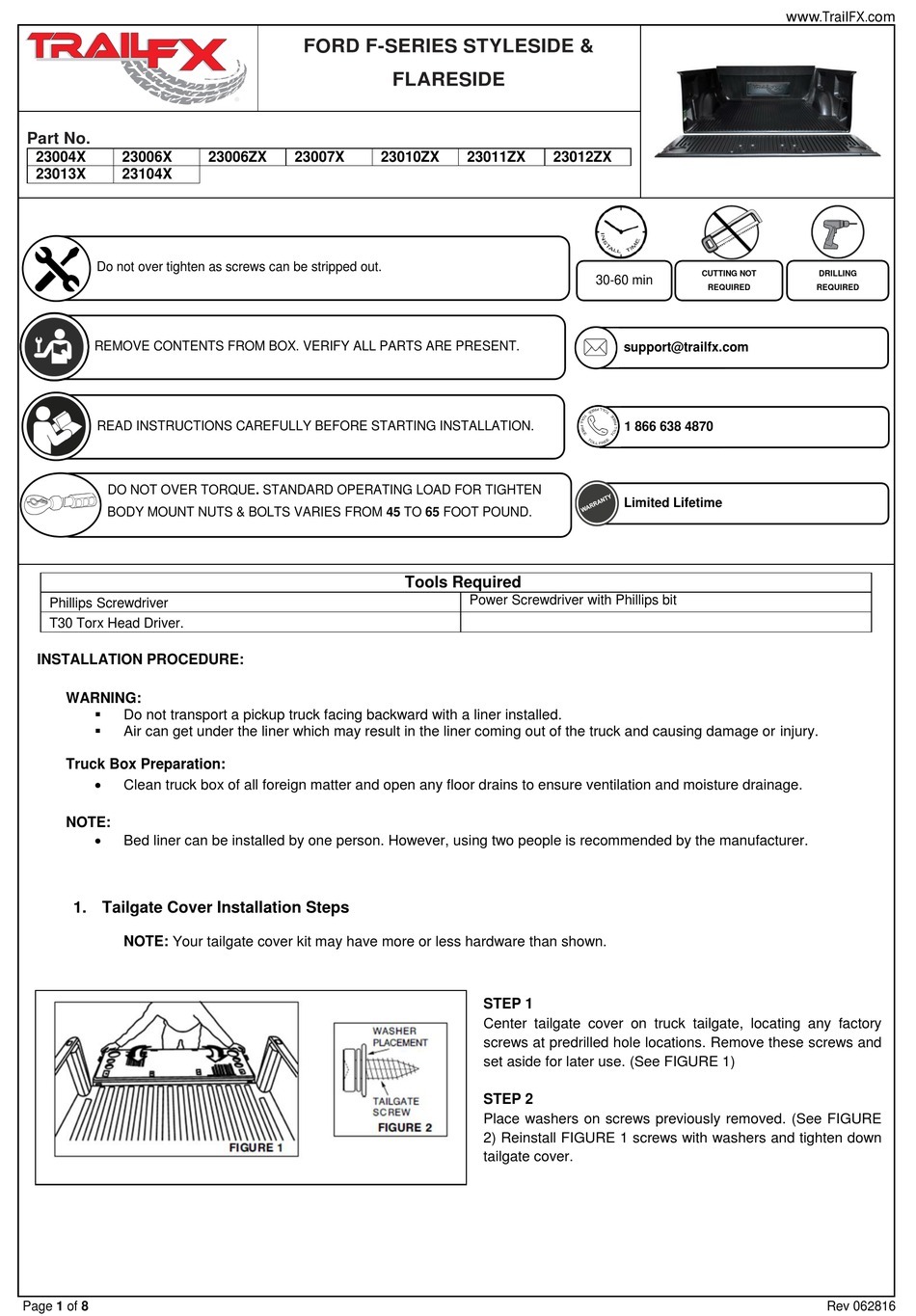

TrailFX 23004X Quick Start Manual

`
Part No.
23004X 23006X
23013X 23104X
Do not over tighten as screws can be stripped out.
REMOVE CONTENTS FROM BOX. VERIFY ALL PARTS ARE PRESENT.
READ INSTRUCTIONS CAREFULLY BEFORE STARTING INSTALLATION.
DO NOT OVER TORQUE. STANDARD OPERATING LOAD FOR TIGHTEN
BODY MOUNT NUTS & BOLTS VARIES FROM 45 TO 65 FOOT POUND.
Phillips Screwdriver
T30 Torx Head Driver.
INSTALLATION PROCEDURE:
WARNING:

Do not transport a pickup truck facing backward with a liner installed.

Air can get under the liner which may result in the liner coming out of the truck and causing damage or injury.
Truck Box Preparation:

Clean truck box of all foreign matter and open any floor drains to ensure ventilation and moisture drainage.
NOTE:

Bed liner can be installed by one person. However, using two people is recommended by the manufacturer.
1. Tailgate Cover Installation Steps
NOTE: Your tailgate cover kit may have more or less hardware than shown.
Page 1 of 8
FORD F-SERIES STYLESIDE &
23006ZX 23007X 23010ZX
FLARESIDE
23011ZX 23012ZX
Tools Required
Power Screwdriver with Phillips bit
STEP 1
Center tailgate cover on truck tailgate, locating any factory
screws at predrilled hole locations. Remove these screws and
set aside for later use. (See FIGURE 1)
STEP 2
Place washers on screws previously removed. (See FIGURE
2) Reinstall FIGURE 1 screws with washers and tighten down
tailgate cover.
CUTTING NOT
30-60 min
REQUIRED
support@trailfx.com
1 866 638 4870
Limited Lifetime
www.TrailFX.com
DRILLING
REQUIRED
Rev 062816
