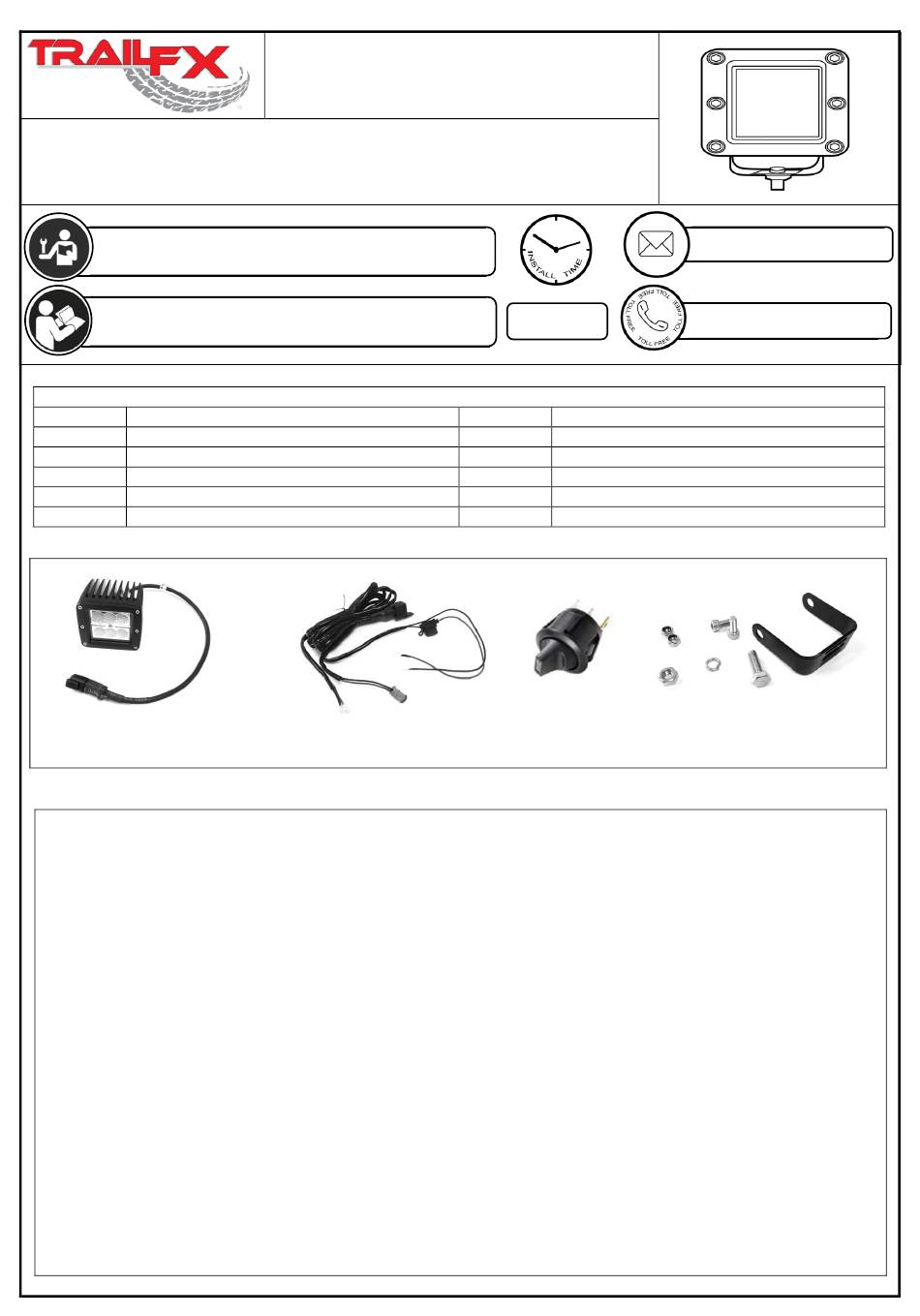

TrailFX 2123131 Quick User Manual

Part No: 2123131, 2123131P, 2123141, 2123141P
REMOVE CONTENTS FROM BOX. VERIFY ALL PARTS ARE
PRESENT.
READ INSTRUCTIONS CAREFULLY BEFORE STARTING
INSTALLATION.
Qty
1 Block Light*
1 Wiring Harness
1 Switch
1 U Bracket*
1 Lock Washer*
*Part quantity doubles for the paired kits
To Harness
BLOCK LIGHT

LIGHT INSTALLATION:

1. Install supplied bracket to block light using M6 x 16mm bolts and M6 Lock Nuts. Insert bracket into vents on back of block light
and then, insert M6 lock nuts into the open cavities next to inserted bracket. Once both have been placed, insert m6 x 16mm
bolt into hole on side of block light. Repeat on opposite side of light.
2. Identify the desired mounting location for the lights on the vehicle. Place block light and mark bracket hole locations on vehicle
(If mounting hole requires drilling).
3. If mounting hole requires drilling, drill a 5/16" hole in locations marked.
4. Mount using M8 x 25mm bolt, lock washer, and M8 hex nut. Once Light bar is in desired location tighten all hardware.
Page 1 of 2

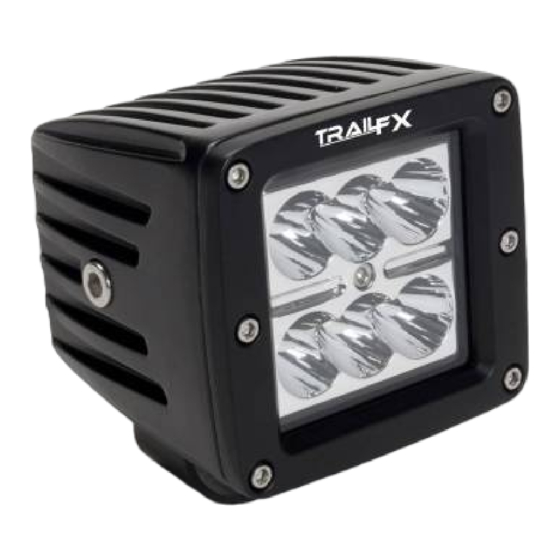

3" LED 18W Cube Light

PARTS LIST:

Part Description
WIRING HARNESS
120 min
Qty Part Description
2 M6 x 16mm Bolt*
1 M8 X 25mm Bolt*
2 M6 Lock Nut*
1 M8 Hex Nut*
SWITCH
www.TrailFX.com
support@trailfx.com
1 866 638 4870
MOUNTING KIT
Rev 030816
