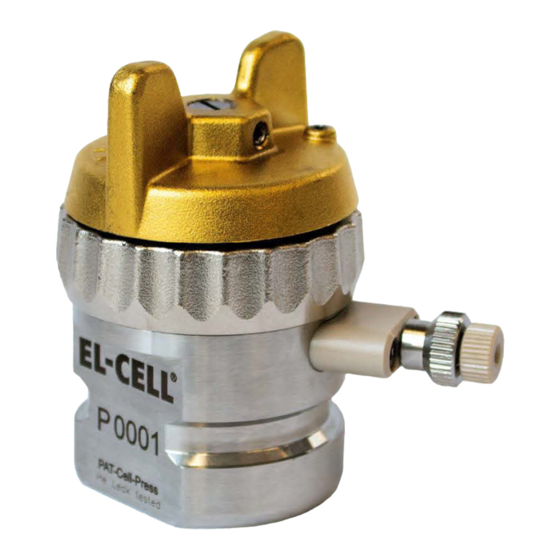

EL-CELL PAT-Cell-Press User Manual

EL-CELL PAT-Cell-Press User Manual

Electrochemical test cell
Hide thumbs Also See for PAT-Cell-Press:

Advertisement

Quick Links

User Manual
Release 1.46
PAT-Cell-Press
Electrochemical test cell
© 2022 EL-Cell GmbH

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PAT-Cell-Press and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for EL-CELL PAT-Cell-Press

  • Page 1 User Manual Release 1.46 PAT-Cell-Press Electrochemical test cell © 2022 EL-Cell GmbH...
  • Page 2 The information in this manual has been carefully checked and believed to be accurate; however, no responsibility is assumed for inaccuracies. EL-Cell GmbH maintains the right to make changes without further notice to prod ucts described in this manual to improve reliability, function, or design. EL -Cell GmbH does not assume any liability arising from the use or application of this product.
  • Page 3: Table Of Contents

    Content 1 Product description..........................4 2 Variants ..............................5 3 Safety precautions ........................... 5 4 Assembly of the PAT-Cell-Press ......................6 5 Disassembly and cleaning ........................8 6 Sample valve with septum port (if installed)..................9 7 Unpacking ............................... 10 8 Technical data ............................
  • Page 4: Product Description

    Can be used in multi-channel configuration in the PAT-Chamber- 16 and PAT-Tester-i-16 ▪ *The PAT-Cell-Press has been tested for leakage at the factory. For an empty cell, pressurized with air through the sample port by means of a syringe, at 2 bar absolute, at 50°C, the pressure decay after 24 hours is guaranteed to be less than 0.3 mbar per hour when using a PE seal, and less than 0.1 mbar per...
  • Page 5: Variants

    User Manual PAT-Cell-Press 2 Variants PAT-Cell-Press Features Laser welded pressure sensor, 0 to 3 bar abs ▪ PAT-Cell-Press PAT-Cell-Press S Features Laser welded pressure sensor, 0 to 3 bar abs ▪ Gas sample port ▪ PAT-Cell-Press S 3 Safety precautions Use proper safety precautions when using hazardous electrode materials and electrolytes.
  • Page 6: Assembly Of The Pat-Cell-Press

    PAT-Cell-Press 4 Assembly of the PAT-Cell-Press This section describes how to assemble the PAT-Cell-Press test cell. A more detailed description of the PAT-Core can be found in a separate manual. Note: The assembly has to take place under the protective atmosphere in a glove box.
  • Page 7 User Manual PAT-Cell-Press Put the insulation sleeve onto the worktop with the smaller side pointing upwards . Different insulation sleeves are available for different test purpose s, see chapters 6 and 7. Insert the lower electrode into the sleeve with the active layer facing downwards .
  • Page 8: Disassembly And Cleaning

    User Manual PAT-Cell-Press 5 Disassembly and cleaning When working with aprotic, moisture-sensitive electrolytes such as LiPF6, it is best to always leave the cell base and cell lid in the glove box and only expose the PAT core components to room air for cleaning or disposal.
  • Page 9: Sample Valve With Septum Port (If Installed)

    Valve Stem PAT-Press Septum Septum Thrust Screw II Gas sample port (PAT-Cell-Press) ECC1-00-0155-C In the closed state, the valve spindle is seated on the PTFE ferrule and is thus preventing any bleeding through the pierced septum. 6.1 How to draw gas samples Pierce the septum with a sample syringe appropriate for the subsequent gas analysis with e.g.
  • Page 10: Unpacking

    PAT-Cell-Press without PAT-Core ▪ Note: The PAT-Cell-press is shipped with an inserted PE-Seal serving only as transport lock. Replace the sealing ring before putting the cell into operation . The components of the PAT-Core (insulation sleeves and plungers) must be purchased separately.
  • Page 11: Technical Data

    User Manual PAT-Cell-Press 8 Technical data Diameter: 49.5 mm ▪ Height: 73 mm ▪ Width: 70 mm / 49.5 mm (with / without Sample port) ▪ Electrode diameter: 18 mm ▪ Temperature operation range: -20 to +80°C ▪ Dead volume: 3.565ml / 8.144 ml ( with inserted PAT-Core / without PAT-Core) ▪...
  • Page 12: Spare Parts

    User Manual PAT-Cell-Press 10 Spare parts Screw cap insulated (PAT), complete ECC1-00-0236-D Page 12 of 17 Release 1.46...
  • Page 13 User Manual PAT-Cell-Press Cell base GTMS (PAT-Press), assy ECC1-00-0255-A Page 13 of 17 Release 1.46...
  • Page 14 User Manual PAT-Cell-Press Spring contact pin holder, assy ECC1-00-0410-A Page 14 of 17 Release 1.46...
  • Page 15 User Manual PAT-Cell-Press Gas sample port (PAT-Press), assy ECC1-00-0155-C Page 15 of 17 Release 1.46...
  • Page 16: Troubleshooting

    13 Warranty For a period of one year from the date of shipment, EL-Cell GmbH (hereinafter Seller) warrants the goods to be free from defect in material and workmanship to the original purchaser. During the warranty period, Seller agrees to repair or replace defective and/or nonconforming goods or parts without charge for material or labor, or, at the Seller’s option, demand return...
  • Page 17 User Manual PAT-Cell-Press prepaid and Seller will bear all risks of loss until delivery to Buyer. Buyer and Seller agree that this Limited Warranty shall be governed by and construed in a ccordance with the laws of Germany. The warranties contained in this agreement are in lieu of all other warranties expressed or implied, including the warranties of merchantability and fitness for a particular purpose.
