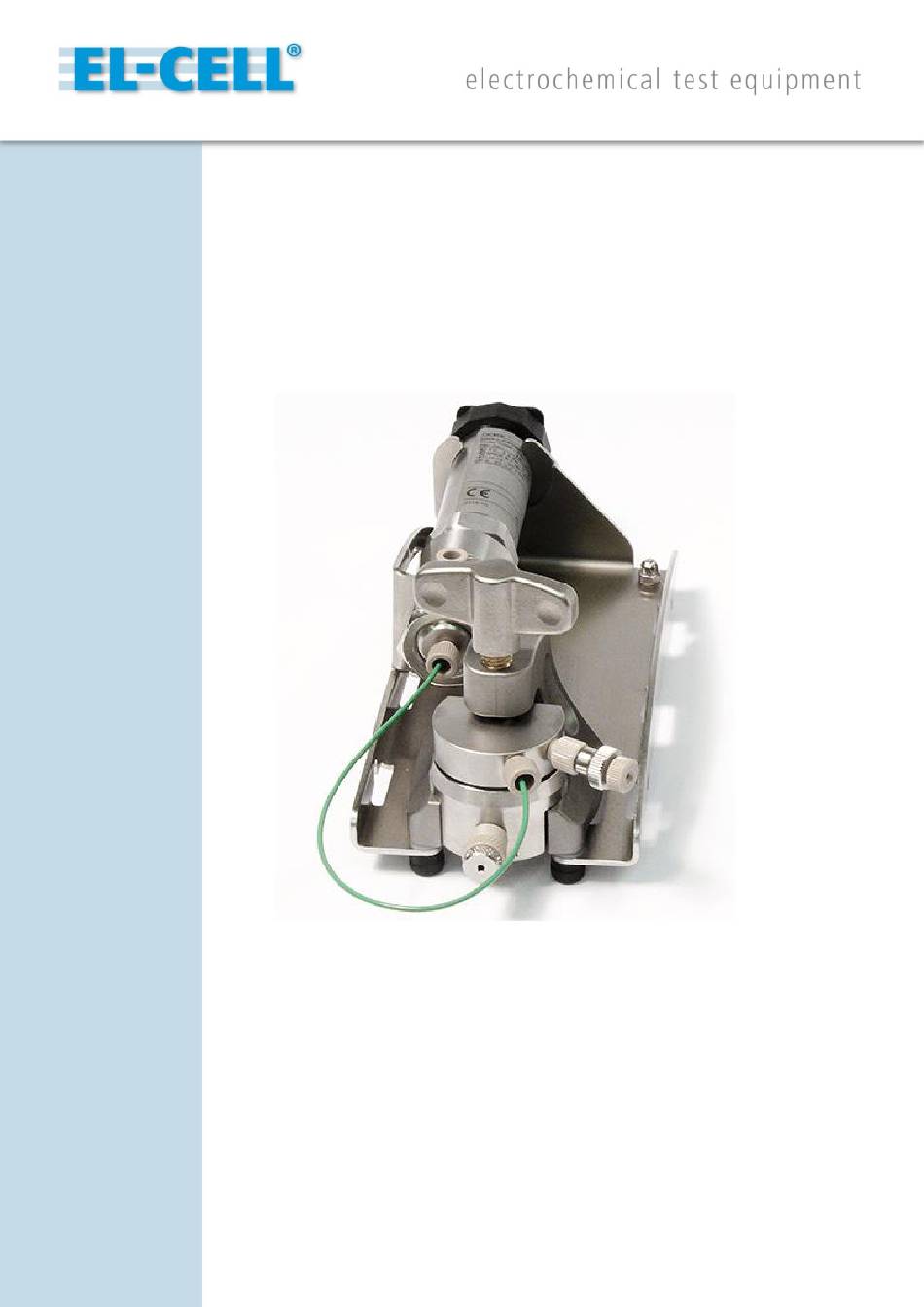

- Page 1 Electrochemical Test Cell ECC-PRESS (-DL) User Manual Release: 3.6 © 2010 - 2017 2017-06-12 EL-CELL GmbH...
-
Page 2: Table Of Contents
The information in this manual has been carefully checked and believed to be accurate; however, no responsibility is assumed for inaccuracies. EL-CELL GmbH maintains the right to make changes without further notice to products described in this manual to improve reliability, function, or design. EL-CELL GmbH does not assume any liability arising from the use or application of this product. -
Page 3: Product Description
1 Product Description The ECC-Press test cell is dedicated to the measurement of the pressure build-up during the electrochemical cycle. The low-dead-volume sampling port/valve serves to draw gas samples from the cell’s headspace. The cell hardware is based on the ECC-Std and ECC-Ref test cells and can be used with or without a reference electrode. -
Page 4: Features And Specification
2 Features and Specification Precise pressure sensor attached to the electrochemical cell for monitoring pressure changes during charge / discharge Sampling valve with septum port for drawing gas samples by means of a syringe Default pressure range of 0 to 2.5 bar (absolute) ... - Page 5 Modular cell construction with many interchangeable components. Size (including stand): 90 mm x 80 mm x 240 mm (height x width x depth) Weight: 900 g Dedicated tools available to ease cell assembly and operation http://el-cell.com/products/accessories-tools Page 5 of 18 Manual_ECC_PRESS_Release_3.6.docx / 12.06.2017...
- Page 6 Dimensions (Cell) Electrical Specifications (Controller) Input: 24V (0.6A) supplied by PSA15R-240P mains adapter Analog output voltages: 0 to 10V (1 kOhm / 100 nF) for pressure and temperature Resolution of pressure analog output: <0.05% of measurement range Error of pressure analog output: <0.5% of measurement range (comprising non-linearity including hysteresis and non-reproducibility) Resolution of temperature analog output: <0.01°C Error of temperature output: <...
-
Page 7: Safety Precautions
Contact the factory if anything is missing or damaged. NOTE: Damaged shipments must remain with the original packaging for freight company inspection. List of Components 1. ECC-Press test cell with pressure sensor, fully equipped for use in both 2-electrode and 3-electrode (reference) configuration 2. -
Page 8: Assembly And Connection
Load the feed-through hole of the Ref sleeve with a small amount of lithium metal with the aid of a metal wire. A dedicated tool is optionally available to ease the procedure (https://el-cell.com/products/tools-accessories/ecc- refload). Insert the Ref sleeve into the cell base. - Page 9 For best results, place the ECC-Press inside a temperature controlled chamber, at a constant temperature between -20 to +70°C. The chamber needs to have a feed- through for cable connection to the controller box outside the chamber. Inside the chamber, attach the square sensor plug to the pressure sensor, and connect the 2 mm banana plugs of the cell cable to the cell (red and green to the lid, blue and yellow to the base, black to the reference).
-
Page 10: Sample Valve With Septum Port
T = 8°C/V * Voltage 6 Sample Valve with Septum Port The gas sample valve serves to draw gas samples from the head space of the ECC test cell. In the closed state, the valve spindle is seated on the PTFE ferrule and is thus preventing any bleeding through the pierced septum. -
Page 11: Software Installation (Dl Option)
7 Software Installation (DL option) The ECC-Press-DL features an integrated USB data logger for recording cell pressure, temperature, cell potentials and current. The software installation on a ® Windows PC is described below. a. You must be logged into an account with Administrator privileges. -
Page 12: Recording The Pressure Signal With An External Potentiostat
Many of today’s battery testers and potentiostats provide additional analog inputs that may be used to record sensor signal along with cell current and potential. In the following, the combination of the ECC-Press-DL with a Biologic potentiostat (MPG-2, SP, VSP and VMP series) is described as an example. The Biologic potentiostats feature two analog inputs that are used here to record both pressure and temperature. -
Page 13: Disassembly And Cleaning
9 Disassembly and Cleaning Right after use, disassemble the cell in the reverse order of assembly. Note that the reference pin MUST be detached before the Ref sleeve can be removed. All chemicals used have to be disposed properly. All wetted parts are to be cleaned with water and/or other appropriate solvents. -
Page 14: Accessories And Spare Parts
10 Accessories and Spare Parts Page 14 of 18 Manual_ECC_PRESS_Release_3.6.docx / 12.06.2017... - Page 15 ECC-PRESS Test Cell Page 15 of 18 Manual_ECC_PRESS_Release_3.6.docx / 12.06.2017...
-
Page 16: Cables And Connectors
Cell Cable 6x2 twisted pairs; Sub-D M15 HD connector to box; 2 mm banana plugs and square sensor plug M16 to ECC-PRESS test cell; shield connected to Sub-D connector housing and to sensor housing; Pt100 sensor located inside sensor plug housing Part No. -
Page 17: Technical Support
The following procedure must be followed when the ECC test cell or any part of it is returned to EL-CELL GmbH for repair: 1. Send an e-mail to info@el-cell.com to obtain a return authorization number and a decontamination report form. -
Page 18: Warranty
Warranty For a period of one year from the date of shipment, EL-CELL GmbH (hereinafter Seller) warrants the goods to be free from defect in material and workmanship to the original purchaser. During the warranty period, Seller agrees to repair or replace defective and/or nonconforming goods or parts without charge for material or labour, or, at the Seller’s option, demand return of the goods and tender repayment of the...
