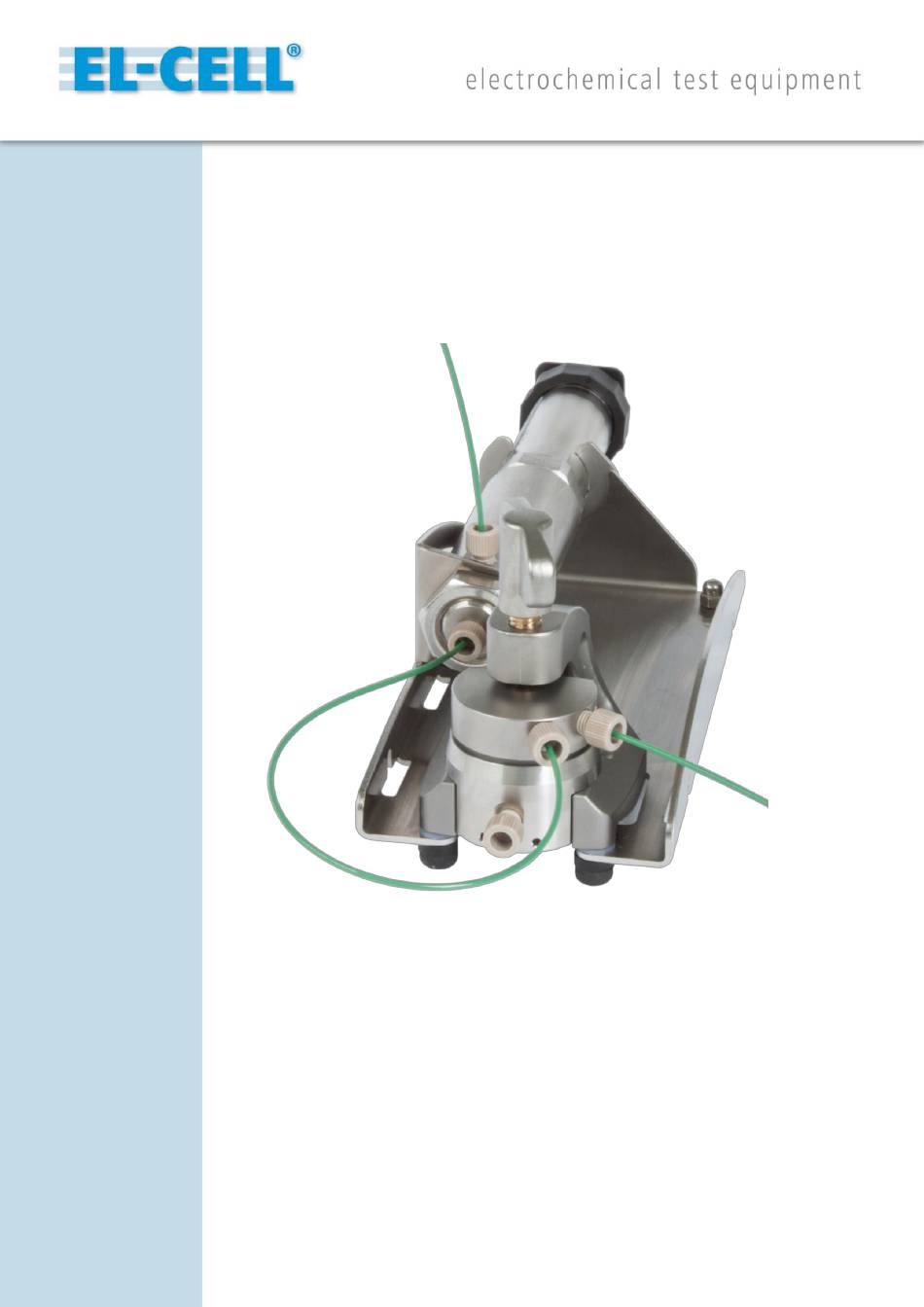

EL-CELL ECC-Press-Air User Manual

Electrochemical test cell

Advertisement

Quick Links

© 2012 - 2017
EL-CELL GmbH
Electrochemical Test Cell
ECC-Press-Air (-DL)
User Manual
Release: 1.5
2017-06-12

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ECC-Press-Air and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for EL-CELL ECC-Press-Air

  • Page 1 Electrochemical Test Cell ECC-Press-Air (-DL) User Manual Release: 1.5 © 2012 - 2017 2017-06-12 EL-CELL GmbH...
  • Page 2: Table Of Contents

    The information in this manual has been carefully checked and believed to be accurate; however, no responsibility is assumed for inaccuracies. EL-CELL GmbH maintains the right to make changes without further notice to products described in this manual to improve reliability, function, or design. EL-CELL GmbH does not assume any liability arising from the use or application of this product.
  • Page 3: Product Description

    The cell hardware is based on the ECC-Std and ECC-Ref test cells and can be used with or without a reference electrode. The ECC-Press-Air comes with a controller box for easy interfacing with an external potentiostat. The box provides analog outputs for both pressure and temperature. As an option, all relevant signals of the experiment –...
  • Page 4: Features And Specification

    2 Features and Specification  ECC-Press-Air test cell dedicated to the characterization of gas-diffusion electrodes in aprotic media  Upper electrode is contacted by, and breathes through a perforated current collector  Gas inlet and outlet for supply of pressurized gases to the gas diffusion electrode ...
  • Page 5  Size (including stand): 90 mm x 80 mm x 240 mm (height x width x depth)  Weight: 900 g  Dedicated tools available to ease cell assembly and operation http://el-cell.com/products/accessories-tools Dimensions (Cell) Page 5 of 23 Manual_ECC_PRESS_AIR_Release 1.5.docx / 13.06.2017...
  • Page 6 Electrical Specifications (Controller) Input: 24 V (0.6 A) supplied by PSA15R-240P mains adapter Analog output voltages: 0 to 10 V (1 kOhm / 100 nF) for pressure and temperature Resolution of pressure analog output: <0.05% of measurement range Error of pressure analog output: <0.5% of measurement range (comprising non-linearity including hysteresis and non-reproducibility) Resolution of temperature analog output: <0.01°C Error of temperature output: <...
  • Page 7: Safety Precautions

    NOTE: Damaged shipments must remain with the original packaging for freight company inspection. List of Components ECC-Press-Air test cell with pressure sensor, assembled for use in a 2-electrode dead-end pressurized set-up Gas sample port with septum and valve Reference electrode pin, REF sleeve and locking pin for 3-electrode...
  • Page 8: Cell Assembly

    5 Cell Assembly The test cell can either be operated in 2-electrode or 3-electrode (reference) configuration. In the following, the cell assembly is described for operation with a lithium metal reference electrode. Generally, all assembly steps are to be carried out in inert glove box atmosphere, and all components used are to be dried upfront in a vacuum oven at 80°C for at least 12 hours.
  • Page 9 vii) Put the glass fibre separator into the sleeve and dispense a defined amount of electrolyte onto it. The optimum amount of electrolyte depends on the electrodes and separator used, and has to be carefully determined in pre- tests. 0.5 cm are a reasonable amount for 1.5 mm thick glass fiber separator.
  • Page 10 Wing Nut Lid with 2mm banana jacks Gas inlet or gas sample port / valve Connection line to pressure sensor Siphon Spring PE seal Locking ring Cell base with 2mm banana jacks Piston REF sleeve Reference assembly Perforated current collector Cell stack Page 10 of 23 Manual_ECC_PRESS_AIR_Release 1.5.docx / 13.06.2017...
  • Page 11: Operation Modes / Gas Supply

    6 Operation Modes / Gas Supply Thanks to its modular design, the ECC-Press-Air may be operated in different modes. Two basic set-ups are described below. A. Flow-through set-up This is the most typical configuration for the characterization of Li-air batteries. In the...
  • Page 12 Outside the chamber, connect your potentiostat to the 4 mm banana sockets on the front panel of the controller box. The rightmost column in the table below refers to the terminology used for the lead connections of Biologic potentiostats (MPG-2, SP, VSP and VMP series).
  • Page 13: Sample Valve With Septum Port

    8 Sample Valve with Septum Port The gas sample valve serves to draw gas samples from the head space of the ECC- Press-Air test cell. In the closed state, the valve spindle is seated on the PTFE ferrule and is thus preventing any bleeding from inside the cell through the septum. In order to draw a gas sample, i) pierce the septum with the sample syringe, ii) open the valve by turning the valve handle counter-clockwise by 90 degrees, iii) charge the syringe, iv) close the valve by turning the valve handle clockwise till finger tight, and remove...
  • Page 14: Software Installation (Dl Option)

    9 Software Installation (DL option) The ECC-Press-Air-DL features an integrated USB data logger for recording cell pressure, temperature, cell potentials and current. The software installation on a ® Windows PC is described below. a. You must be logged into an account with Administrator privileges.
  • Page 15: Recording The Pressure Signal With An External Potentiostat

    Many of today’s battery testers and potentiostats provide additional analog inputs that may be used to record sensor signal along with cell current and potential. In the following, the combination of the ECC-Press-Air-DL with a Biologic potentiostat (MPG-2, SP, VSP and VMP series) is described as an example. The Biologic potentiostats feature two analog inputs that are used here to record both pressure and temperature.
  • Page 16: Disassembly And Cleaning

    11 Disassembly and Cleaning Right after use, disassemble the cell in the reverse order of assembly. Note that the reference pin MUST be detached before the REF sleeve can be removed. All chemicals used have to be disposed properly. All wetted parts are to be cleaned with water and/or other appropriate solvents.
  • Page 17: Accessories And Spare Parts

    12 Accessories and Spare Parts ECC-Press-Air (-DL) complete Page 17 of 23 Manual_ECC_PRESS_AIR_Release 1.5.docx / 13.06.2017...
  • Page 18 Test Cell (assembled as 3-electrode cell) Page 18 of 23 Manual_ECC_PRESS_AIR_Release 1.5.docx / 13.06.2017...
  • Page 19 Gas sample port, assy ECC1-00-0155-A Page 19 of 23 Manual_ECC_PRESS_AIR_Release 1.5.docx / 13.06.2017...
  • Page 20 Reference pin, assy ECC1-00-0010-D Page 20 of 23 Manual_ECC_PRESS_AIR_Release 1.5.docx / 13.06.2017...
  • Page 21: Cables And Connectors

    13 Cables and Connectors Cell Cable 6x2 twisted pairs; Sub-D M15 HD connector to box; 2 mm banana plugs and square sensor plug M16 to ECC-PRESS test cell; shield connected to Sub-D connector housing and to sensor housing; Pt100 sensor located inside sensor plug housing Part No.
  • Page 22: Technical Support

    The following procedure must be followed when the ECC test cell or any part of it is returned to EL-CELL GmbH for repair: 1. Send an e-mail to info@el-cell.com to obtain a return authorization number and a decontamination report form.
  • Page 23: Warranty

    Warranty For a period of one year from the date of shipment, EL-CELL GmbH (hereinafter Seller) warrants the goods to be free from defect in material and workmanship to the original purchaser. During the warranty period, Seller agrees to repair or replace defective and/or nonconforming goods or parts without charge for material or labour, or, at the Seller’s option, demand return of the goods and tender repayment of the...
