Summary of Contents for EL-CELL ECC-PAT-Core

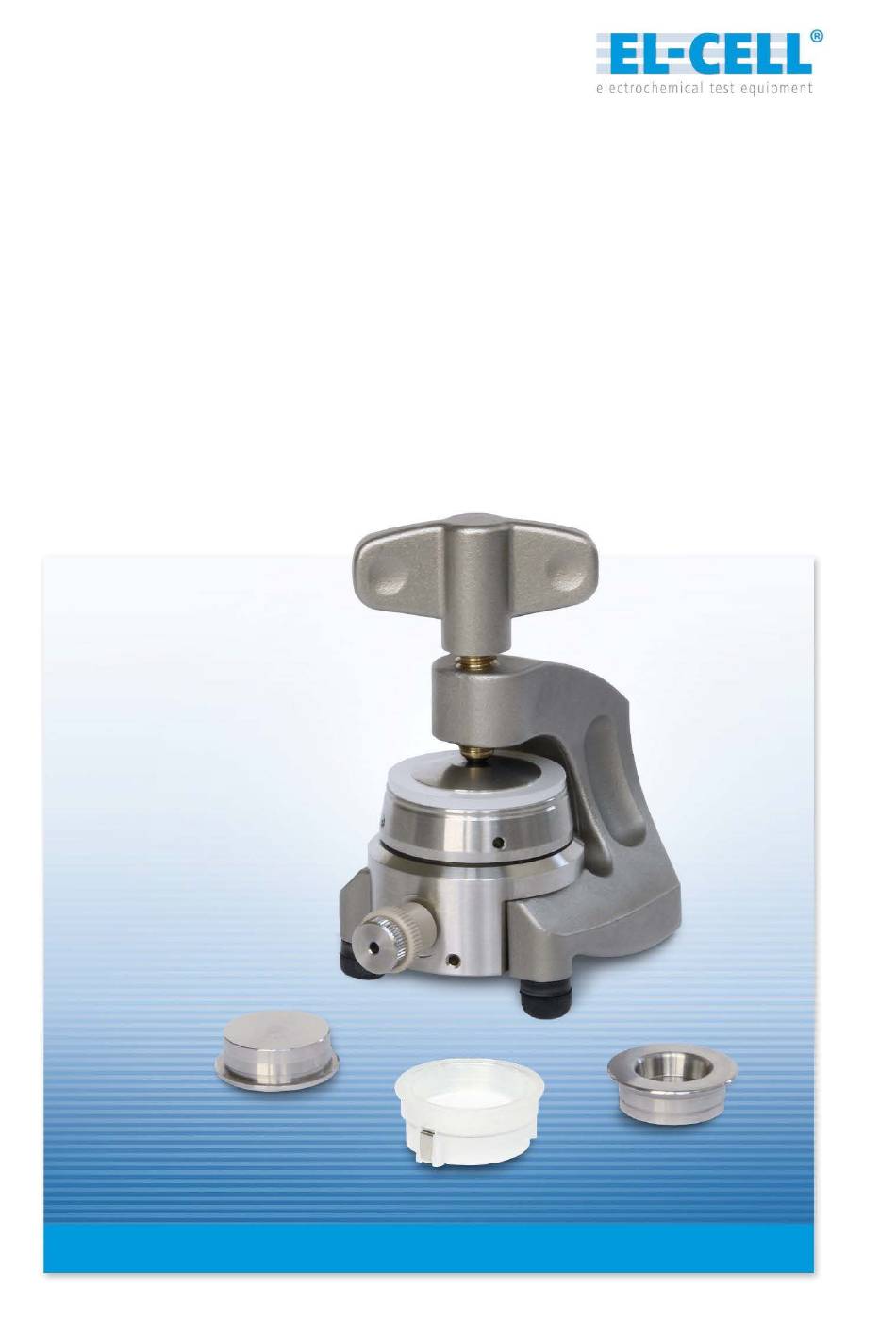

- Page 1 User Manual Release 2.02 Electrochemical Test Cell ECC-PAT-Core November 2016 © 2016 EL-CELL GmbH...
- Page 2 The information in this manual has been carefully checked and believed to be accurate; however, no responsibility is assumed for inaccuracies. EL-CELL GmbH maintains the right to make changes without further notice to products described in this manual to improve reliability, function, or design. EL -CELL GmbH does not assume any liability arising from the use or application of this p roduct.
-
Page 3: Table Of Contents
6 Different Test Cases ..................10 7 PAT-Core Components ..................11 9 Disassembly and Cleaning .................. 14 10 Consumables ....................14 11 Spare Parts ..................... 15 12 Technical Support .................... 16 13 Warranty ......................17 Page 3 of 17 User Manual ECC-PAT-Core – Release 2.02... -
Page 4: Product Description

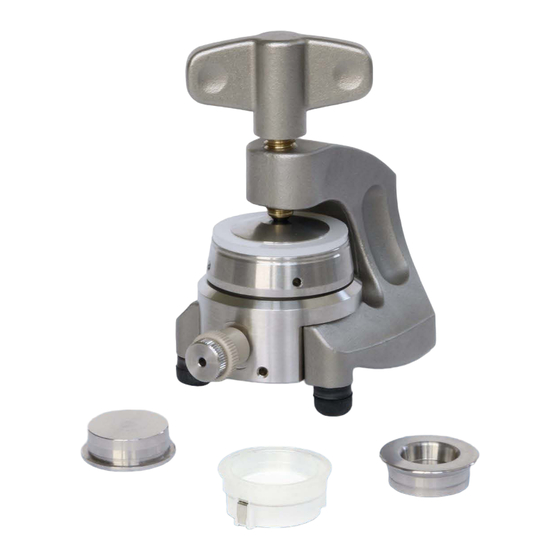

1 Product Description The ECC-PAT-Core is the latest test cell of the ECC series, which allows the application of the novel PAT-Core. The PAT-Core is comprised of three components: Insulation sleeve: The polypropylene insulation sleeve with a ring -shaped reference electrode and a separator, both pre-installed at the factory, sealed and ready for use in the glovebox. - Page 5 -use components (made of battery grade copper and aluminium) and as reusable components (made of stainless steel 316 L/ 1.4404). Upper plunger Insulation sleeve Lower plunger ECC-PAT-Core PAT-Core Page 5 of 17 User Manual ECC-PAT-Core – Release 2.02...
-
Page 6: Features
0.1 mm (electrode and separator dimensions are compatible with other test cells of the ECC series). The ECC-PAT-Core is designed for use in the temperature range from -20 to +70°C. 3 Safety Precautions Use proper safety precautions when using hazardous electrode materials and electrolytes. - Page 7 List of Components: ECC-PAT-Core test cell without PAT-Core Note: The components of the PAT-Core (insulation sleeves and plungers) must be purchased separately. Bracket PE-Seal Cell Base Feed wire assy Page 7 of 17 User Manual ECC-PAT-Core – Release 2.02...
-
Page 8: Cell Assembly
11. Hold the lid down and push the cell into the bracket (11). 12. Turn the wing nut (10) to close the cell. A video showing the assembly of the ECC-PAT-Core in detail, can be found here. Page 8 of 17... - Page 9 Wing nut Electrolyte Insulation sleeve Lower electrode Bracket Lower plunger PE-Seal Cell base Further recommended tools for working with the ECC-PAT-Core: ECC1-02-0005-A ECC-LiPunch 18 mm ECS1-00-0100-A EL-Cut Cutting Pliers 18 mm Page 9 of 17 User Manual ECC-PAT-Core – Release 2.02...
-
Page 10: Different Test Cases
The lower electrode can have a thickness of up to 800 µm provided that the proper gap size of the lower plunger is chosen. The maximum thickness of the upper electrode is 800 µm. Page 10 of 17 User Manual ECC-PAT-Core – Release 2.02... -
Page 11: Pat-Core Components
Good case: No bending of built-in separator; reference ring is in plane with separator. Gap too large: Excessive downward bending of built-in separator; reference ring is out of plane with separator. Page 11 of 17 User Manual ECC-PAT-Core – Release 2.02... - Page 12 Article code ECC1-01- ECC1-01- ECC1-01- ECC1-01- ECC1-01- lower plunger 0027-A_50 0027-A_100 0027-A_150 0027-A_200 0027-A_800 (Al) Article code ECC1-01- ECC1-01- ECC1-01- ECC1-01- ECC1-01- lower plunger 0027-B_50 0027-B_100 0027-B_150 0027-B_500 0027-B_800 (Cu) Page 12 of 17 User Manual ECC-PAT-Core – Release 2.02...
- Page 13 ECC1-00-0210-A/x with lithium metal ring reference, with Viledon separator (25 µm) Insulation sleeve ECC1-00-0210-P/x with glass fiber separator (260 µm) 2 electrodes Insulation sleeve ECC1-00-0210-B/x with Viledon separator (25 µm) Page 13 of 17 User Manual ECC-PAT-Core – Release 2.02...
-
Page 14: Disassembly And Cleaning
ECC1-00-0210-O/x Insulation sleeve with glass fiber separator only ECC1-00-0210-P/x Seals (single-use): Ferrule 1.0 ECC1-00-0029-B PE-Seal (lid)* ECC1-00-0053-A * We recommend replacement of the PE-Seal after every use. Page 14 of 17 User Manual ECC-PAT-Core – Release 2.02... -
Page 15: Spare Parts
Lower plunger (SS) ECC1-00-0210-P/x ECC1-01-0027-C_x more versions see chapter 7 or Lower plunger (Al) ECC1-01-0027-A_x more versions see chapter 7 Feed wire assy (ECC-PAT-Core) ECC1-00-0010-M PE-Seal ECC1-00-0053-A Cell base ECC1-00-0056-M Page 15 of 17 User Manual ECC-PAT-Core – Release 2.02... -
Page 16: Technical Support
Lower plunger (SS), ), gap x = 50 to 800 (steps of 50) ECC1-01-0027-C_x 12 Technical Support Technical support for this product is exclusively provided by EL-CELL GmbH. EL-CELL GmbH Tempowerkring 8 21079 Hamburg - Germany phone: +49 40 79012-737... -
Page 17: Warranty
13 Warranty For a period of one year from the date of shipment, EL-CELL GmbH (hereinafter Seller) warrants the goods to be free from defect in material and workmanship to the original purchaser. During the warranty period, Seller agrees to repair or replace defective and/or nonconforming goods or parts without charge for material or labor, or, at the Seller’s option, demand return of the goods and tender repayment of the price.
