  • Page 1 User Manual Release 1.01 PAT-Cell-Press Electrochemical test cell © 2016 EL-CELL GmbH...
  • Page 2 The information in this manual has been carefully checked and believed to be accurate; however, no responsibility is assumed for inaccuracies. EL-CELL GmbH maintains the right to make changes without further notice to products described in this manual to improve reliability, function, or design. EL -CELL GmbH does not assume any liability arising from the use or application of this product.
  • Page 3: Table Of Contents

    PAT-Cell-Press Content 1 Product description ............................4 2 Safety precautions............................5 3 Assembly of the PAT-Cell-Press ........................ 5 4 Disassembly and cleaning ........................... 6 5 Sample valve with septum port ......................... 7 6 Unpacking................................ 8 7 Spare parts and consumables ........................9 8 Technical support ............................
  • Page 4: Product Description

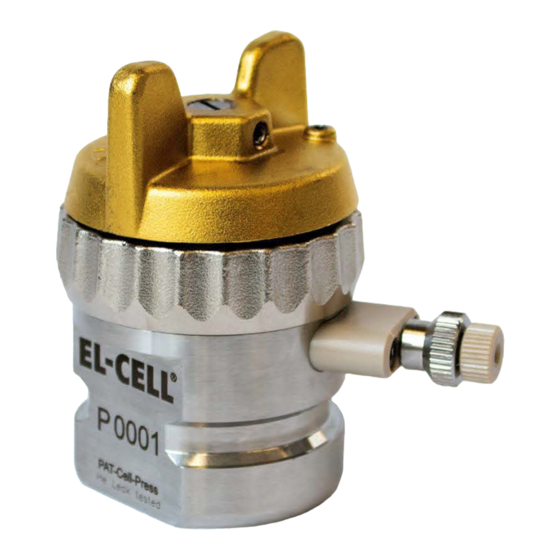

    PAT-Cell-Press 1 Product description The PAT-Cell-Press is a pressure test cell for measuring gas evolution during the electrochemical cycle and drawing gas samples with the sample port. It is a wireless test cell using the PAT-Core single-use concept. As an option, the PAT-Cell-Press is also available without the gas sample port.
  • Page 5: Safety Precautions

    3 Assembly of the PAT-Cell-Press This section describes how to assemble the PAT-Cell-Press test cell. A more detailed description of the PAT-Core can be found in a separate manual. Note: The assembly has to take place under the protective atmosphere in a glove box.
  • Page 6: Disassembly And Cleaning

    User Manual PAT-Cell-Press Put the insulation sleeve onto the worktop with the smaller side pointing upwards. Different insulation sleeves are available for different test purposes, see chapters 6 and 7. Insert the lower electrode into the sleeve with the active layer facing downwards.
  • Page 7: Sample Valve With Septum Port

    90 degrees, iii) charge the syringe, iv) close the valve by turning the valve handle clockwise till finger tight, and remove the syringe. Ferrule 1.0 Valve Seating Valve Stem PAT-Press Septum Septum Thrust Screw II Gas sample port (PAT-Cell-Press) ECC1-00-0155-C Page 7 of 13 Release 1.01...
  • Page 8: Unpacking

    Contact EL -CELL, if anything is missing or damaged. NOTE: Damaged shipments must remain within the original packaging for freight company inspection. List of components PAT-Cell-Press without PAT-Core  Note: The components of the PAT-Core (insulation sleeves and plungers) must be purchased separately.
  • Page 9: Spare Parts And Consumables

    User Manual PAT-Cell-Press 7 Spare parts and consumables Screw cap (PAT), complete ECC1-00-0236-B Page 9 of 13 Release 1.01...
  • Page 10 User Manual PAT-Cell-Press Cell base GTMS (PAT-Press), assy ECC1-00-0255-A Page 10 of 13 Release 1.01...
  • Page 11 User Manual PAT-Cell-Press Spring contact pin holder, assy ECC1-00-0410-A Page 11 of 13 Release 1.01...
  • Page 12 User Manual PAT-Cell-Press Gas sample port (PAT-Press), assy ECC1-00-0155-C Page 12 of 13 Release 1.01...
  • Page 13: Technical Support

    9 Warranty For a period of one year from the date of shipment, EL-CELL GmbH (hereinafter Seller) warrants the goods to be free from defect in material and workmanship to the original purchaser. During the warranty period, Seller agrees to repair or replace defective and/or nonconforming goods or parts without charge for material or labor, or, at the Seller’s option,...
