CyberData 011216 Installation Quick Reference

Wall Mounting Options
Backplate
Pick One of Four Mounting Hole
for Ground Wire Connection
Cable
Entry
Slot
Gang Box Mounting Options
Backplate
Network Cable
(Not Provided)
Cable
Entry
Slot
Mounting
Screw (3x)
121002B
Screw Accessory Kit
Single Gang Box use two
Two Gang Box use four
Contacting CyberData
Corporate Headquarters
CyberData Corporation
Sales: 831-373-2601 ext. 334
3 Justin Court
Support: 831-373-2601 ext. 333
Monterey, CA 93940, USA
Support Website:
RMA Department Contact and Status:
Phone: 831-373-2601
Warranty Information:
Fax: 831-373-4193
https://www.cyberdata.net/
© 2022, CyberData Corporation, ALL RIGHTS RESERVED
Pre Drill Holes
(4 Places) on Wall
Cable
Slots
Closed
Wall
Cutout
Network Cable &
Ground Wire
(Not Provided)
121001A
Screw
Accessory Kit
Mounting
Screw (3x)
Cable
Slots
Closed
Wall Cutout
Backplate accept
Single Gang Box
or Two Gang Box
Wall Cutout
Ground Wire
(Not Provided)
Ground Wire Connect to
Any Available Mounting Hole
https://support.cyberdata.net/
https://support.cyberdata.net/
https://support.cyberdata.net/
931558B Quick Reference
Installation Quick Reference

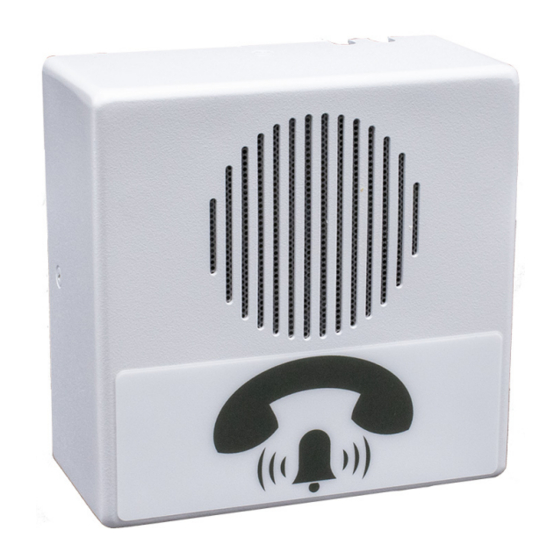

SIP Office Ringer
The IP Endpoint Company
SIP Compliant
011216
Parameter
IP Addressing
a
IP Address
Web Access Username
Web Access Password
a
Subnet Mask
a
Default Gateway
a. Default if there is not a DHCP server present.
Typical System Installation
*More installation and mounting 802.3af Compliant Ethernet Switch
options are available in the
Operations Guide.
SIP Office Ringer SIP Office Ringer SIP Office Ringer
Getting Started
• Download the Operations Guide PDF file, from the Downloads tab at the following webpage:
https://www.cyberdata.net/products/011216
• Create a plan for the locations of your Office Ringers.
• WARNING: This product should be installed by a licensed electrician according to all local electrical and building codes.
• WARNING: To prevent injury, this apparatus must be securely attached to the floor/wall in accordance with the installation
instructions.
• WARNING: The PoE connector is intended for intra-building connections only and does not route to the outside plant.
• WARNING: This enclosure is not rated for any AC voltages!
Parts
(1) Office Ringer Assembly (1) Wall Mounting Kit
(4) #6 x 1.25-inch
Sheet Metal Screw
Quick Reference
Factory Default Setting
DHCP
IPv4 Link Local
admin
admin
IPv4 Link Local
IPv4 Link Local
IP Phone IP PBX Server
(1) Gang Box Mounting Kit
(4) 6-32 x 0.5-inch flat
(4) Plastic ribbed anchor
undercut Phillips machine
screw
931558B © 2022, CyberData Corporation, ALL RIGHTS RESERVED
