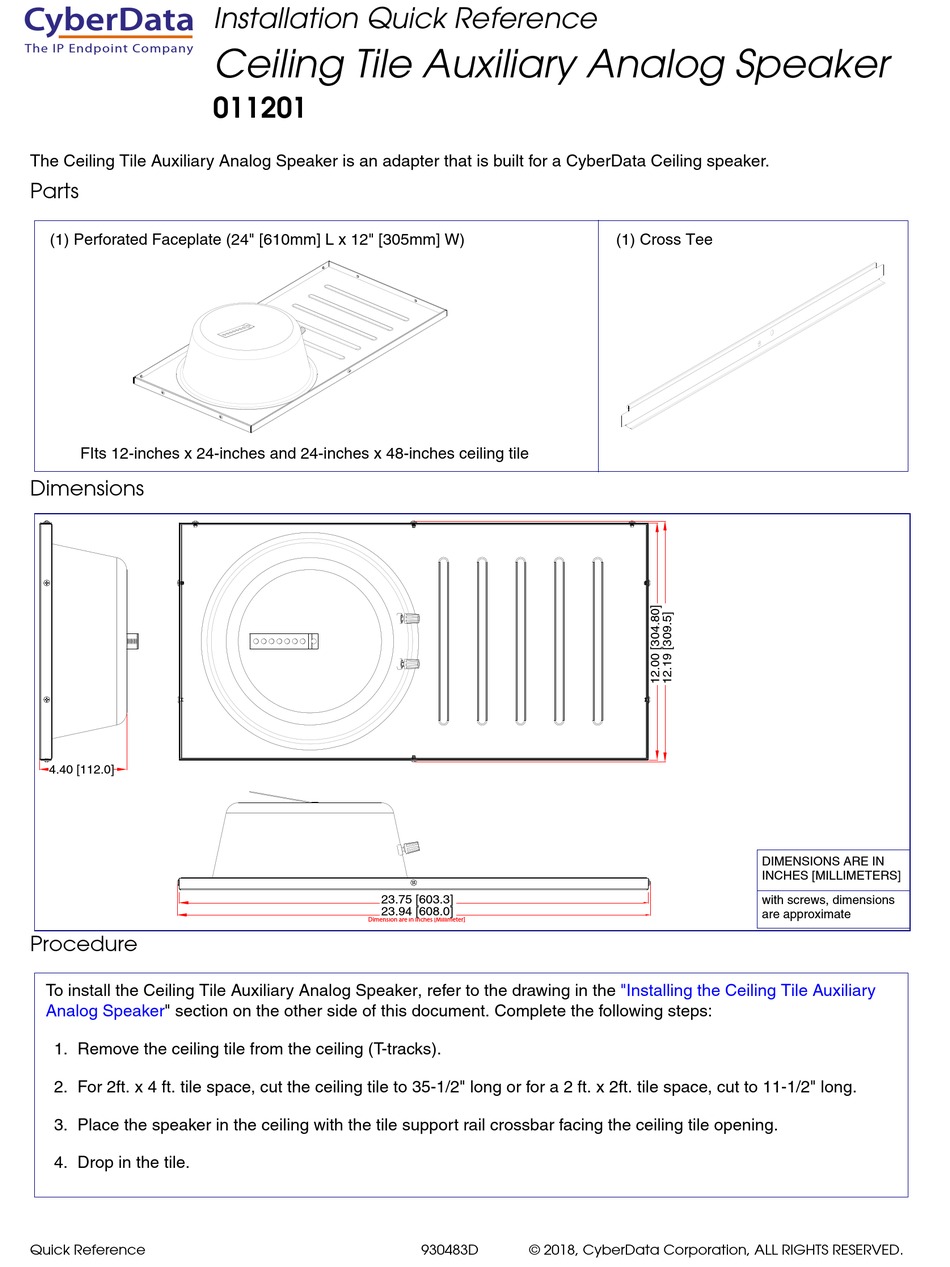

CyberData 011201 Installation Quick Reference

The IP Endpoint Company

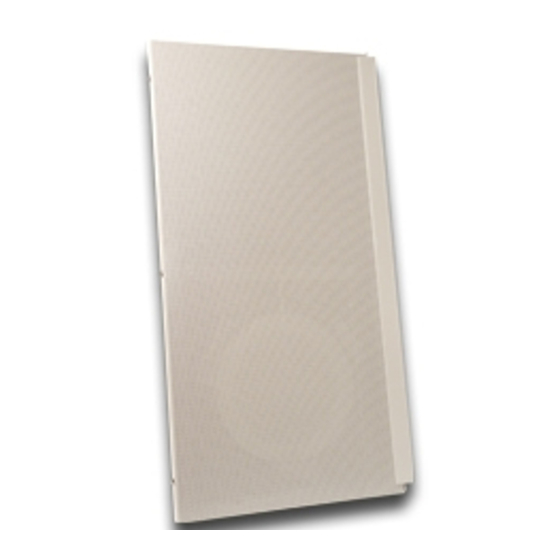

The Ceiling Tile Auxiliary Analog Speaker is an adapter that is built for a CyberData Ceiling speaker.
Parts
(1) Perforated Faceplate (24" [610mm] L x 12" [305mm] W)
FIts 12-inches x 24-inches and 24-inches x 48-inches ceiling tile
Dimensions
4.40 [112.0]
4.40 [112.0]
Procedure
To install the Ceiling Tile Auxiliary Analog Speaker, refer to the drawing in the
Analog Speaker" section on the other side of this document. Complete the following steps:
1. Remove the ceiling tile from the ceiling (T-tracks).
2. For 2ft. x 4 ft. tile space, cut the ceiling tile to 35-1/2" long or for a 2 ft. x 2ft. tile space, cut to 11-1/2" long.
3. Place the speaker in the ceiling with the tile support rail crossbar facing the ceiling tile opening.
4. Drop in the tile.
Quick Reference
Installation Quick Reference
Ceiling Tile Auxiliary Analog Speaker
011201
23.75 [603.3]
23.94 [608.0]
Dimension are in Inches [Millimeter]
23.75 [603.3]
23.94 [608.0]
930483D © 2018, CyberData Corporation, ALL RIGHTS RESERVED.
(1) Cross Tee
DIMENSIONS ARE IN
INCHES [MILLIMETERS]
with screws, dimensions
are approximate
"Installing the Ceiling Tile Auxiliary

