Assembly

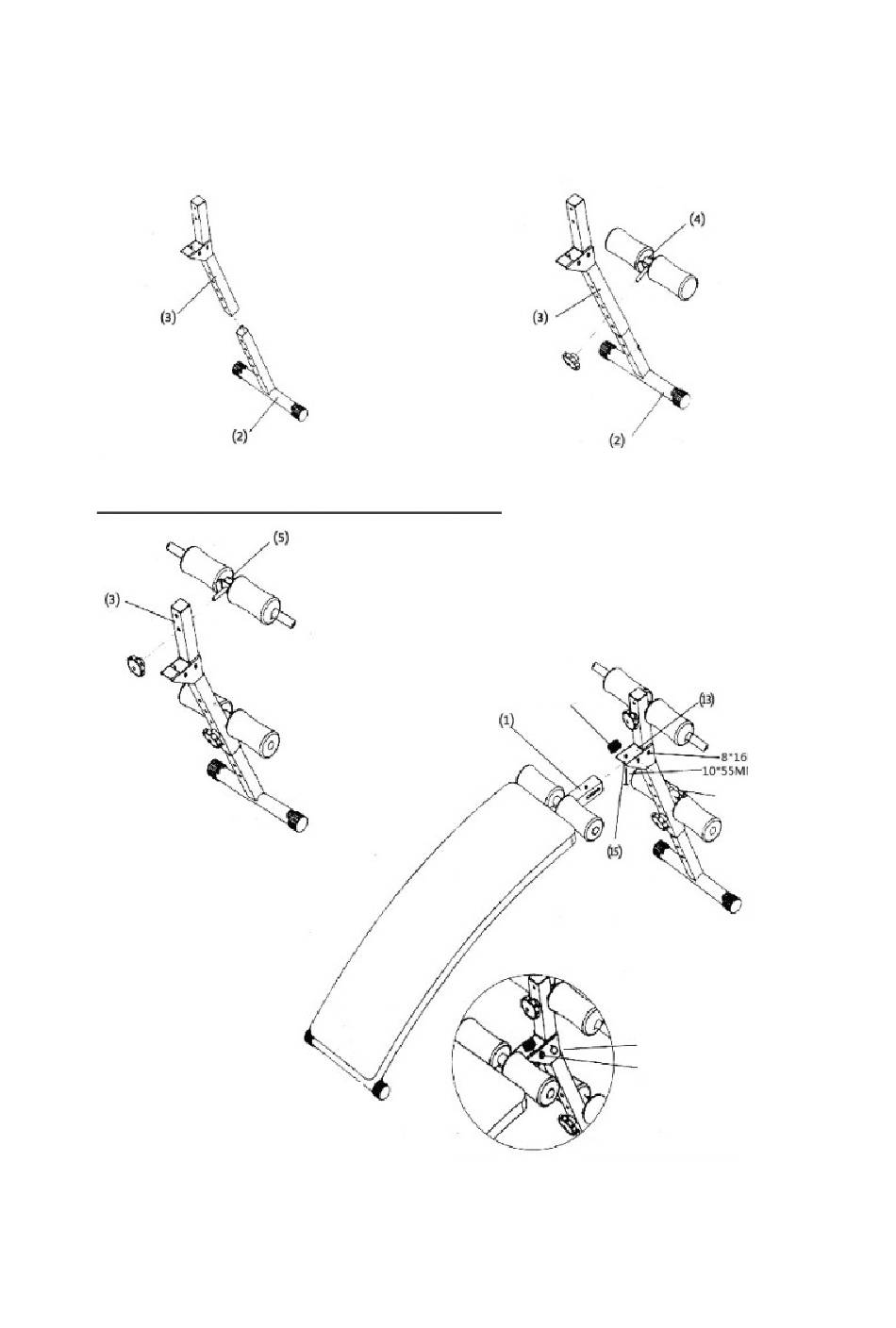

Step 1 : Insert (2) Front Frame to (3) Front Stand
Step 3: Insert (5) Upper Roller Pad the hole of
(3) Front Stand and fasten it with (9) Plastic
Screws
Step 4: Insert (1) Main Frame to (13), fasten
with 10*55mm screws and Plastic Screw Nut.
Step 2 : Insert (4) Lower Roller Pad to the hole of
(2) & (3), Fasten it with (9) Plastic Screws Nut.
The height can be adjusted.
(9)Plastic Screw Nut
Fasten it with 8*16mm Screw.
Fasten it with 10*55mm Screw.
