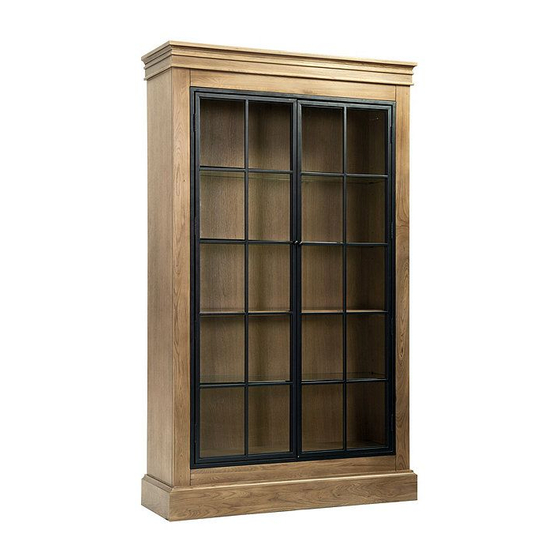

PRODUCT NAME: Delano Iron Door Cabinet
ITEM NUMBER: MA236
DIMENSIONS OF ITEM ASSEMBLED: 80 3/4"H x 48"W x 16"D
PRODUCTS ARE NOT INTENDED
MADE IN CHINA
FOR COMMERCIAL USE.
UPDATED: 5/4/2017
Page 1 of 5

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Delano MA236 and is the answer not in the manual?

Questions and answers

Summary of Contents for Ballard Designs Delano MA236

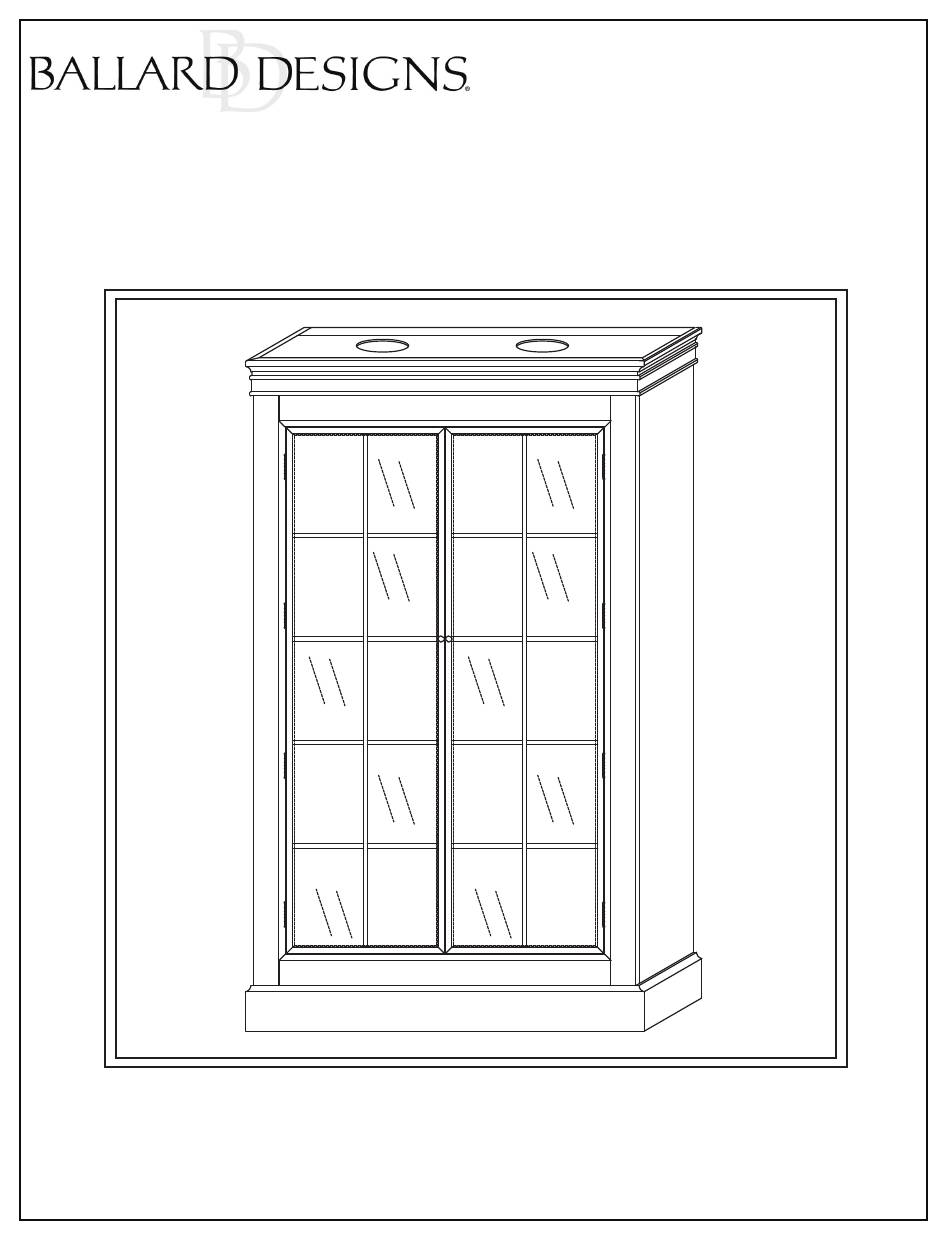

  • Page 1 Customer Service: 800-367-2810 Online: www.ballarddesigns.com PRODUCT NAME: Delano Iron Door Cabinet ITEM NUMBER: MA236 DIMENSIONS OF ITEM ASSEMBLED: 80 3/4”H x 48”W x 16”D PRODUCTS ARE NOT INTENDED MADE IN CHINA FOR COMMERCIAL USE. UPDATED: 5/4/2017 Page 1 of 5...
  • Page 2 NOTE: Assemble the Cabinet in desired location for use. Shelves (F,G) Hardware Located Here (A-E) TOOLS NEEDED: NOTE: When unpacking, lay the parts on -Requires a screwdriver. a padded surface such as the packaging provided. -Power drill suggested. Be sure to locate all hardware before throwing -Assembly requires 2 or more people.
  • Page 3 NOTE: Assemble the Cabinet in desired location for use. STEP 1: Insert the Shelf Supports (B) into the holes of the Cabinet at the desired shelf heights. Set the Shelves (G) on the Shelf Supports. Insert the Narrow Shelf (F) into the wooden tracks inside the Cabinet.
  • Page 4 NOTE: Assemble the Cabinet in desired location for use. STEP 3: Center the Cabinet in front of two studs and mark their location on the Wall. Push the Cabinet against the wall. Wall Stud STEP 4: Slide the L-Bracket (C) over the top corner of the Cabinet and in front of the previously marked stud.
  • Page 5 NOTE: Assemble the Cabinet in desired location for use. STEP 5: Pull the Cabinet away from the wall and attach the L-Brackets (C) to the studs using the Long Screws (A) and a screwdriver. If there are not studs in the desired Cabinet location, lightly tap in the Anchors (D) and attach the L-Brackets with the Long Screws.
