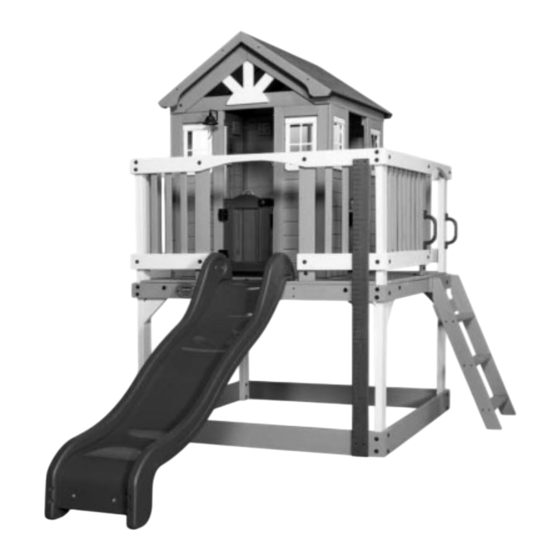

Backyard Discovery BEACON HEIGHTS 2102323 Assembly Instructions Manual
  1. Manuals
  2. Brands
  3. Backyard Discovery Manuals
  4. Play Sets & Playground Equipment
  5. BEACON HEIGHTS 2102323
  6. Assembly instructions manual

Backyard Discovery BEACON HEIGHTS 2102323 Assembly Instructions Manual

Hide thumbs

Advertisement

Quick Links

Download this manual
Basepoint Business Centre: Rivermead Drive,Westlea, Swindon SN5 7EX Phone: 0800-118-2476
J.P. Coenstraat 7, The Bridge, The Hague, 2595 WP, Netherlands
CAN ICES-003 (B)/NMB-003(B)
For the most up to date assembly manual, to register your product, or to order replacement parts
Please visit www.backyarddiscovery.com
Para obtener instrucciones en español, visite www.backyarddiscovery.com
EASY STEP-BY-STEP
3D INTERACTIVE INSTRUCTIONS
DOWNLOAD THE FREE APP
DOWNLOAD THE FREE APP
INSTALLATION
SERVICES
AVAILABLE!
*
See inside for details

Advertisement

loading
Need help?

Need help?

Do you have a question about the BEACON HEIGHTS 2102323 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Backyard Discovery BEACON HEIGHTS 2102323

Summary of Contents for Backyard Discovery BEACON HEIGHTS 2102323

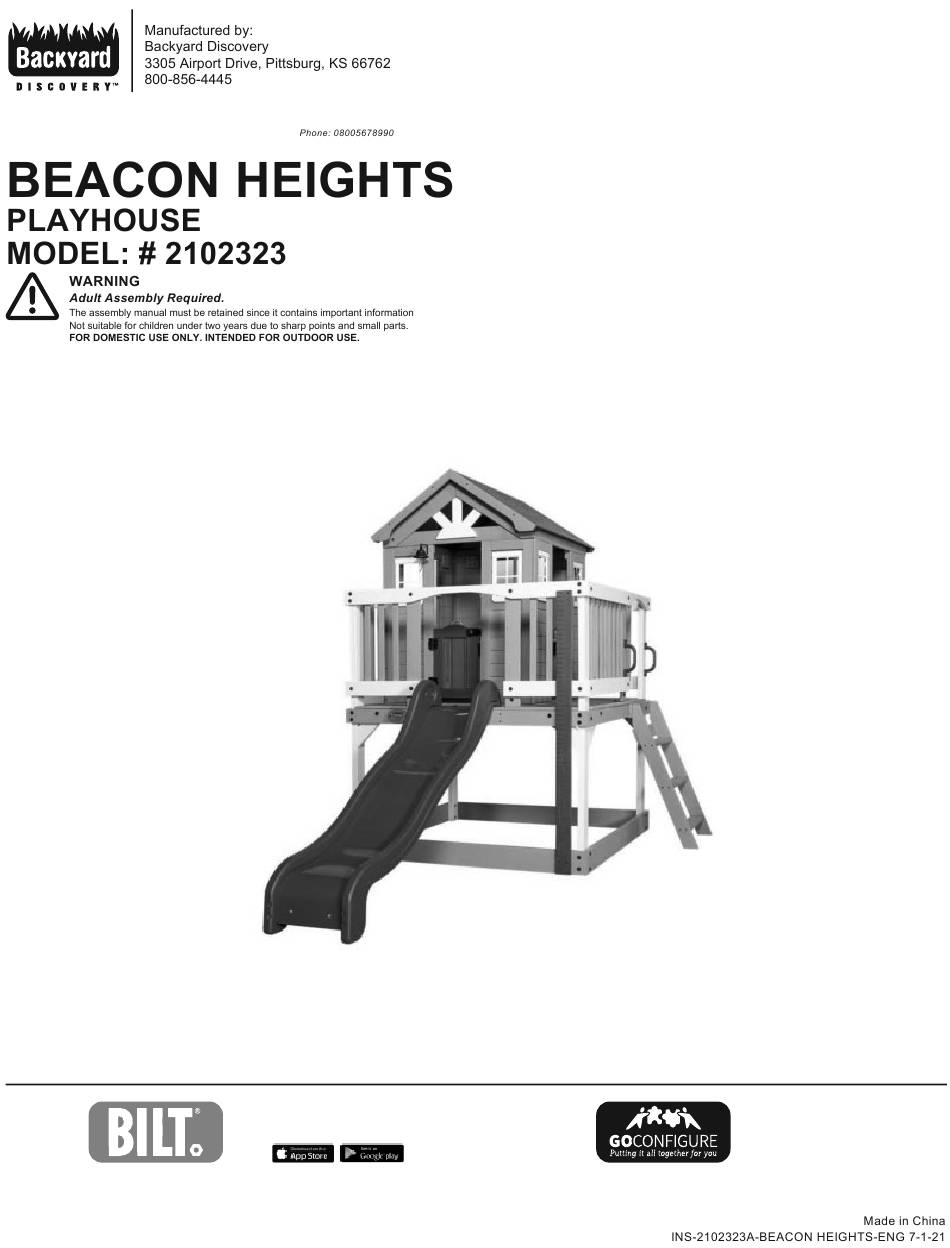

  • Page 1 Basepoint Business Centre: Rivermead Drive,Westlea, Swindon SN5 7EX Phone: 0800-118-2476 J.P. Coenstraat 7, The Bridge, The Hague, 2595 WP, Netherlands CAN ICES-003 (B)/NMB-003(B) Please visit www.backyarddiscovery.com For the most up to date assembly manual, to register your product, or to order replacement parts Para obtener instrucciones en español, visite www.backyarddiscovery.com EASY STEP-BY-STEP INSTALLATION...
  • Page 2 INSTALLATION SERVICES AVAILABLE! Need a helping hand? *Installation services are only available to U.S. customers. We do the heavy lifting, so you don’t have to! Visit www.goconfigure.com for more info! *Installation services are only available to U.S. customers.
  • Page 3 Owner’s Manual Please Read This Before Starting Assembly MISSING A PART? CALL US BEFORE GOING BACK TO THE STORE Please have the following information ready when you make your call: y fi...
  • Page 4 Limited Warranty Please read entire booklet completely before beginning the assembly process Please retain these instructions and your receipt for future reference. Keep them in a safe place where you can refer to them as needed. In order to provide you with the most service, it is required that you provide us with the part numbers when ordering parts.
  • Page 5 Owner’s Manual Operating Instructions and Safety Warnings WARNING: BURN HAZARD NOTE: Your Children’s Safety Is Our #1 Concern!
  • Page 6 Owner’s Manual Please Read This Before Starting Assembly Positioning Your Playhouse Suggested Playground Surfacing...
  • Page 7 Owner’s Manual Please Read This Before Starting Assembly APPENDIX A The following information is from the United States Consumer Product Safety Commission’s Information Sheet for playground surfacing material; also see the following website for additional information: www.cpsc.gov specifi Specifi specifi Specifi diff...
  • Page 8 Owner’s Manual Instructions for Proper Maintenance IT IS IMPORTANT TO CHECK AND TIGHTEN ALL HARDWARE AT THE BEGINNING AND DURING THE SEASON AS THEY MAY LOOSEN DUE TO WOOD EXPANSION AND CONTRACTION. At the beginning of each play season Additional Maintenance ake and check depth of loose fi Twice a month during play season Disposal Instructions...
  • Page 9 Owner’s Manual Instructions for Proper Maintenance Your Backyard Discovery structure is designed and constructed of quality materials. As with all outdoor products it will weather and wear. To maximize the enjoyment, safety and life of your structure it is important that you properly maintain it.
  • Page 10 Owner’s Manual Assembly Tips Protrusion Hazard Incorrect Correct Proper Hardware Assembly Bolt and T-Nut Assembly Bolt and Barrel Nut Assembly Lag Assembly...
  • Page 11 Owner’s Manual Assembly Tips ASSEMBLY TIP: Keep and eye out for these boxes which will contain helpful pictures and information making the assembly process as quick and painless as possible. Sorting Wood Sorting Hardware NUT BARREL SCREW T-NUT WASHER FLAT BOLT HEX BOLT SCREW PWH...
  • Page 12 Electronics Safety Warnings Owner's Manual Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
