Rear View - IBM WebSphere DataPower XC10 Installation Manual

Storage LED light
Error alarm LED light
Cache amber LED light
Cache writing LED light
Cache reading LED light

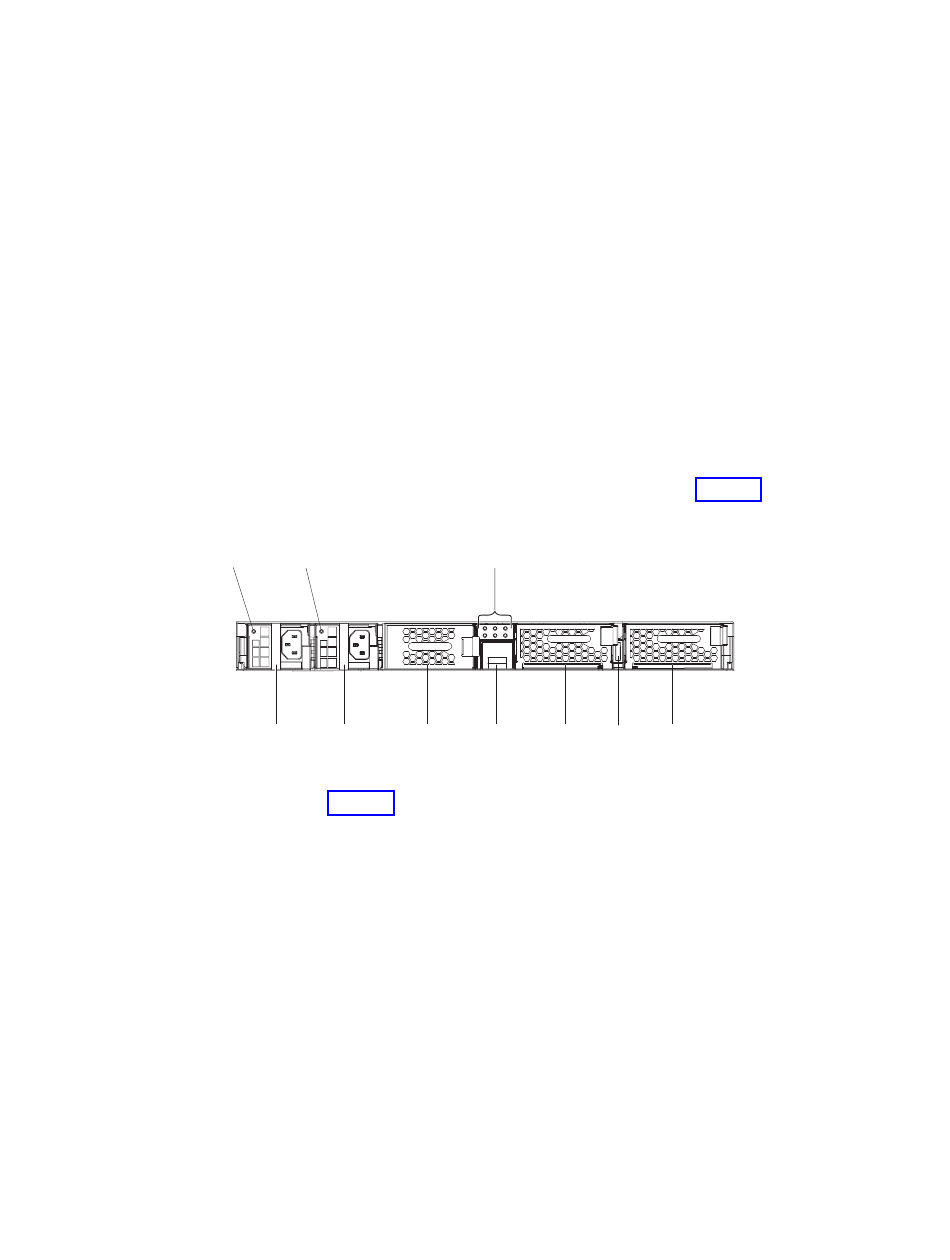

Rear view

The data storage, system battery, fan modules, and power modules are installed
from the rear of the WebSphere DataPower XC10 appliance. Figure 2 shows the
components on the rear panel of the WebSphere DataPower XC10 appliance.
A
Figure 2. Rear view
The labels in Figure 2 represent the following components on the rear panel of a
WebSphere DataPower XC10 appliance:
A
B
C
D
E
F
G
H
I
J
4
IBM WebSphere DataPower XC10: Installation Guide
The green storage LED light is illuminated when data storage is being
accessed.
The yellow error alarm LED light is illuminated when any LED light on
the rear of the appliance is illuminated or after a system event failure.
The amber storage LED light is illuminated when the driver needs to be
loaded or during firmware updates.
The yellow storage LED light is illuminated when data is being written to
the cache.
The green storage LED light is illuminated when the cache is being
accessed.
B
D E F
The power supply 1 LED light.
The power supply 2 LED light.
The LED diagnostics panel.
Power supply module 1.
Power supply module 2.
The data storage unit hard disk array.
The battery tray.
Fan module 2.
The power switch.
Fan module 1.
C
G J
H I
