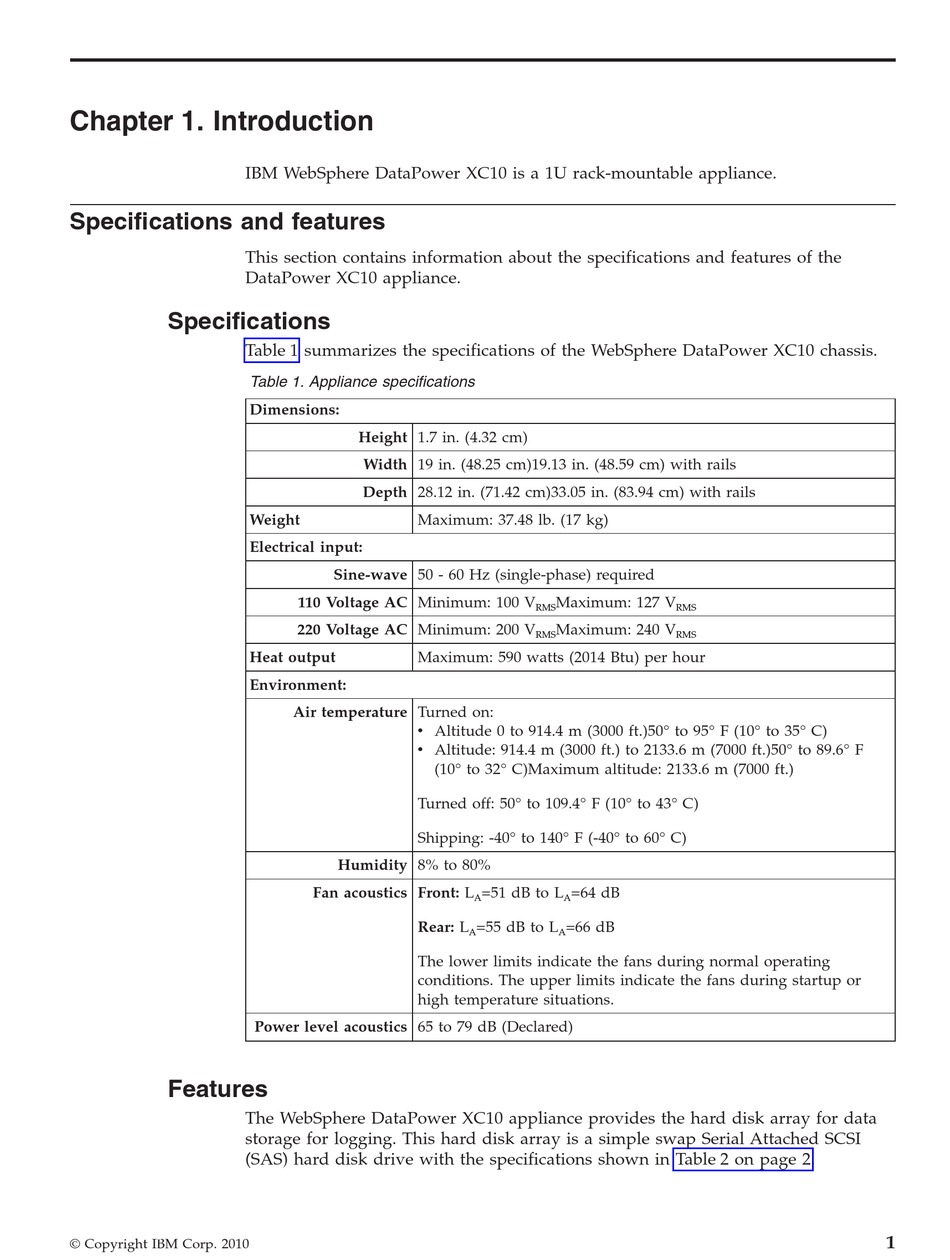

Chapter 1. Introduction

IBM WebSphere DataPower XC10 is a 1U rack-mountable appliance.

Specifications and features

This section contains information about the specifications and features of the
DataPower XC10 appliance.

Specifications

Table 1 summarizes the specifications of the WebSphere DataPower XC10 chassis.

Features

The WebSphere DataPower XC10 appliance provides the hard disk array for data
storage for logging. This hard disk array is a simple swap Serial Attached SCSI
(SAS) hard disk drive with the specifications shown in Table 2 on page 2.
© Copyright IBM Corp. 2010
Table 1. Appliance specifications
Dimensions:
Height 1.7 in. (4.32 cm)
Width 19 in. (48.25 cm)19.13 in. (48.59 cm) with rails
Depth 28.12 in. (71.42 cm)33.05 in. (83.94 cm) with rails
Maximum: 37.48 lb. (17 kg)
Weight
Electrical input:
Sine-wave 50 - 60 Hz (single-phase) required
110 Voltage AC Minimum: 100 V
220 Voltage AC Minimum: 200 V
Heat output Maximum: 590 watts (2014 Btu) per hour
Environment:
Air temperature Turned on:
v Altitude 0 to 914.4 m (3000 ft.)50° to 95° F (10° to 35° C)
v Altitude: 914.4 m (3000 ft.) to 2133.6 m (7000 ft.)50° to 89.6° F
Turned off: 50° to 109.4° F (10° to 43° C)
Shipping: -40° to 140° F (-40° to 60° C)
Humidity 8% to 80%
Fan acoustics Front: L
Rear: L
The lower limits indicate the fans during normal operating
conditions. The upper limits indicate the fans during startup or
high temperature situations.
Power level acoustics 65 to 79 dB (Declared)
Maximum: 127 V
RMS
Maximum: 240 V
RMS
(10° to 32° C)Maximum altitude: 2133.6 m (7000 ft.)
=51 dB to L =64 dB
A A
=55 dB to L =66 dB
A A
RMS
RMS
1
