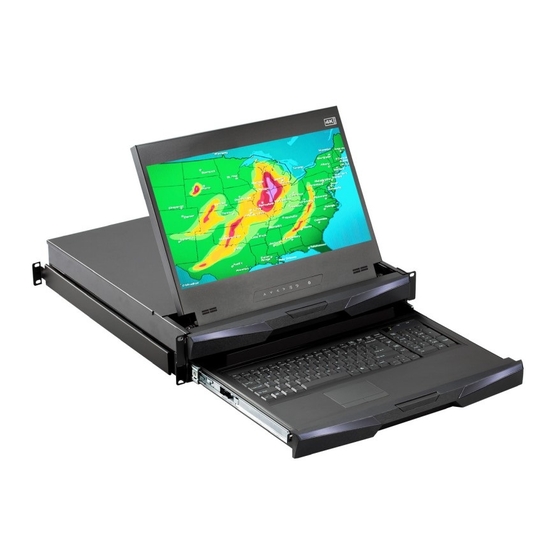

- Page 1 KVM switch and rackmount screen technology User Manual 2U 17″ 4K Dual Slide LCD Console Drawer RKP2417K 3840 x 2160@60Hz native resolution Designed and manufactured by Austin Hughes UM-CV-751-RKP2417K-Q221V1 www.austin-hughes.com...
- Page 2 Intentionally Left Blank UM-CV-751-RKP2417K-Q221V1 www.austin-hughes.com...
- Page 3 Legal Information First English printing, November 2020 Information in this document has been carefully checked for accuracy; however, no guarantee is given to the correctness of the contents. The information in this document is subject to change without notice. We are not liable for any injury or loss that results from the use of this equipment.
-
Page 4: Table Of Contents
Contents < Part. 1 > RKP2417K Package Content Structure Diagram & Dimension Installation Connection < Part. 2 > Specifications / OSD Product Specifications Keyboard / Mouse Specifications On-screen Display Operation ( OSD ) P.12 < Part. 3 > Options 3G / HD / SD-SDI Broadcast-grade input P.15 HDMI 2.0 video input P.16... - Page 5 Before Installation ■ It is very important to mount the equipment in a suitable cabinet or on a stable surface. ■ Make sure the place has a good ventilation, is out of direct sunlight, away from sources of excessive dust, dirt, heat, water, moisture and vibration. Unpacking The equipment comes with the standard parts shown in package content.
-
Page 6: Rkp2417K
< Part 1 > RKP2417K < 1.1 > Package Content RKP2417K unit X 1 USB cable X 2 - Power cord X 1 - M6 screw, cage nut & cup washer X 8 The above package content is only for the single console models. It varies with options such as SDI, HDMI &... - Page 7 < 1.2 > Dimension RKP2417K Front View Rear View AC Input Keyboard Mouse 100~240V Power attached 6ft DP cable UNIT : mm Side View 1mm = 0.03937 inch Top View Product Dimension Packing Dimension Gross Model Net Weight (W x D x H) (W x D x H) Weight 442 x 480 x 88 mm...
-
Page 8: Installation
< 1.3 > Installation - How to install Installation Slides Step ■ Insert the left and right rear mounting brackets into the LCD console drawer. Step ■ Measure the depth of the front and rear mounting rails. ■ Align each rear mounting bracket to a suitable length. Step Complete the installation ■... - Page 9 < 1.3 > Installation - How to Use the Dual Slides RKP2417K Figure 1. ■ A black arrow release button is located on the front of each slide. (shown in Figure 1). ■ Pull and hold the black arrow button on either side Figure 2.
-
Page 10: Connection
< 1.4 > Connection to DP Server LCD Console Drawer Keyboard Mouse Power attached 6ft DP cable DP server Connection to external KVM LCD Console Drawer Keyboard Mouse Power attached 6ft DP cable DP console KVM Caution : The LCD console drawer is hot-pluggable, but components of connected devices, such as the servers and KVM switch, may not be hot-pluggable. - Page 11 Intentionally Left Blank UM-CV-751-RKP2417K-Q221V1 www.austin-hughes.com...
-
Page 12: Specifications / Osd
< Part 2 > Specifications / OSD < 2.1 > Product Specifications Panel Size ( diagonal ) 17.3-inch Widescreen TFT color LCD Panel Display pixel ( dots x lines ) 3840 x 2160@60Hz Brightness ( typ. ) Contrast Ratio ( typ. ) 1000:1 Color 16.7 M, 8-bit... - Page 13 RKP2417K Physical Product ( W x D x H ) 442 x 480 x 88 mm Specification 17.4 x 18.9 x 3.5 inch Packing ( W x D x H ) 442 x 480 x 88 mm 17.4 x 18.9 x 3.5 inch Net Weight 20.4 kg / 44.9 lb Gross Weight...
-
Page 14: Keyboard / Mouse Specifications
< 2.2 > Standard Keyboard / Mouse Specifications G keyboard integrated with touchpad G keyboard integrated with trackball Key force 55 ± 5g Travelling distance 3 ± 0.3mm Switch life > 10 million life cycle time OS support Windows / Linux / Unix / Mac OS Supporting layouts America United States... - Page 15 MAC Keyboard / Mouse Options RKP2417K MAC keyboard integrated with touchpad MAC keyboard integrated with trackball Supporting layouts America United States How to Use "MAC" Keyboard Keyboard Features Decrease display brightness Fast-forward Increase display brightness Mute sound Mission control * Only works with OS X Lion Decrease volume default Keyboard Shortcuts.
- Page 16 < 2.2 > SUN Keyboard / Mouse Options S keyboard integrated with touchpad S keyboard integrated with trackball Ca ps Scro ll Comp ose Ca ps Scro ll Comp ose S keyboard integrated with touchpad / trackball ■ Incorporates SUN keys, including Stop, Cut, Paste, Compose, Copy and Help ■...
-
Page 17: On-Screen Display Operation ( Osd )
< 2.3 > On-screen Display Operation ( OSD ) RKP2417K Power light Green = On Orange = Power saving Membrane Switch Function Power on / off LCD Display the OSD menu Scrolls through menu options and adjusts the displayed control (To auto adjustment by pressing the button for 5 seconds) Exit the OSD screen... - Page 18 < 2.3 > On-screen Display Operation ( OSD ) Picture Brightness : Adjust the screen brightness Contrast : Adjust the difference between the image background ( black level ) and the foreground ( white level ) Black level : Adjust background black level of the screen : Screen in power saving mode Position Picture size : Adjust the image size...
- Page 19 On-screen Display Operation ( OSD ) RKP2417K Reset Reset : Return the adjustment back to factory setting PIP mode : Enter into PIP / PBP setting - PIP MODE / PBP 2WIN ( Main screen + 1 sub screen ) / PBP 3WIN ( Main screen + 2 sub screen ) / PBP 4WIN ( Main screen + 3 sub screen ) Select the signal input of each sub screen...
-
Page 20: Options
< Part 3 > Options < 3.1 > 3G / HD / SD-SDI input Austin Hughes’ SDI input is an ideal solution for the broadcast- grade video and high resolution CCTV market. Designed for use with CyberView displays, a SDI input... - Page 21 < 3.2 > HDMI RKP2417K - HDMI 2.0 ( HDCP 2.2 ) ( 1 ) In some circumstances, if the user connects the LCD to PC via HDMI port for video and audio signals, the LCD may display incorrectly on a full screen. If so, please adjust the display card setting on display size to fix the issue.
- Page 22 < 3.3 > Options : DC Power Model 125V Input rating Input voltage: 12-Volt 24-Volt 48-Volt 110-Volt Input range: 9 ~ 18V 18 ~ 36V 36 ~ 75V 66 ~ 160V Input current - No load 50 mA 50 mA 50 mA 35 mA - Full load...
-
Page 23: Rkp2417K
< Part 4 > RKP2417K RKP2417K < 4.1 > KVM Integration www.austin-hughes.com/support/usermanual/cyberview/UM-CV-4KKVM-KIT.pdf Remote 8-port 60Hz - 801K Product Dimension Packing Dimension Gross Model Net Weight (W x D x H) (W x D x H) Weight 442 x 480 x 88 mm 585 x 620 x 190 mm 21.1 kg 27 kg... - Page 24 The company reserves the right to modify product specifications without prior notice and assumes no responsibility for any error which may appear in this publication. All brand names, logo and registered trademarks are properties of their respective owners. Copyright 2021 Austin Hughes Electronics Ltd. All rights reserved. UM-CV-751-RKP2417K-Q221V1 www.austin-hughes.com...
