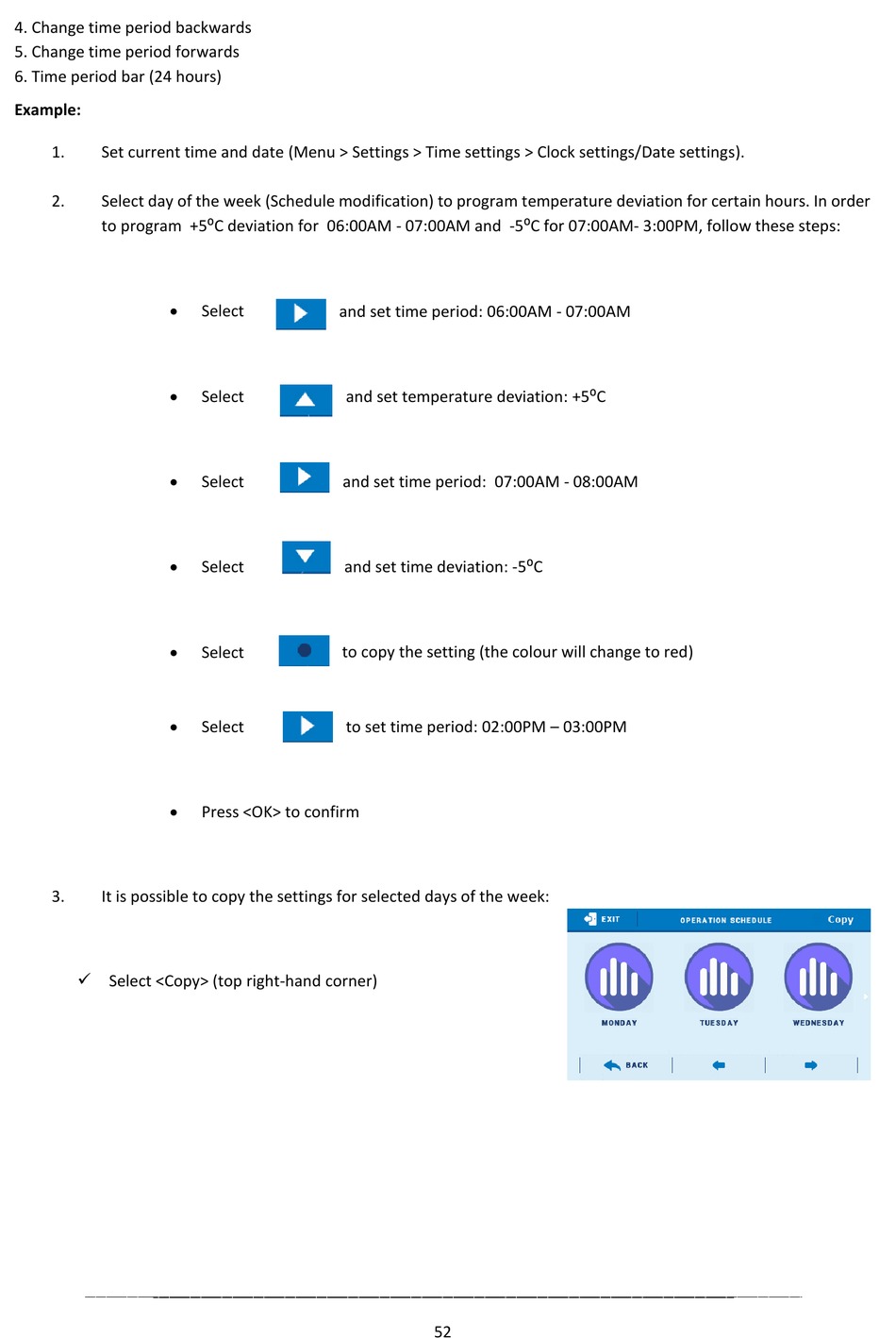

Tech Controllers EU-i-2 Plus OT User Manual page 52

4. Change time period backwards
5. Change time period forwards
6. Time period bar (24 hours)
Example:
1. Set current time and date (Menu > Settings > Time settings > Clock settings/Date settings).
2. Select day of the week (Schedule modification) to program temperature deviation for certain hours. In order
to program +5⁰C deviation for 06:00AM - 07:00AM and -5⁰C for 07:00AM- 3:00PM, follow these steps:







3. It is possible to copy the settings for selected days of the week:
 Select <Copy> (top right-hand corner)
Select and set time period: 06:00AM - 07:00AM
Select and set temperature deviation: +5⁰C
Select and set time period: 07:00AM - 08:00AM
Select
and set time deviation: -5⁰C
Select to copy the setting (the colour will change to red)
Select to set time period: 02:00PM – 03:00PM
Press <OK> to confirm
52
