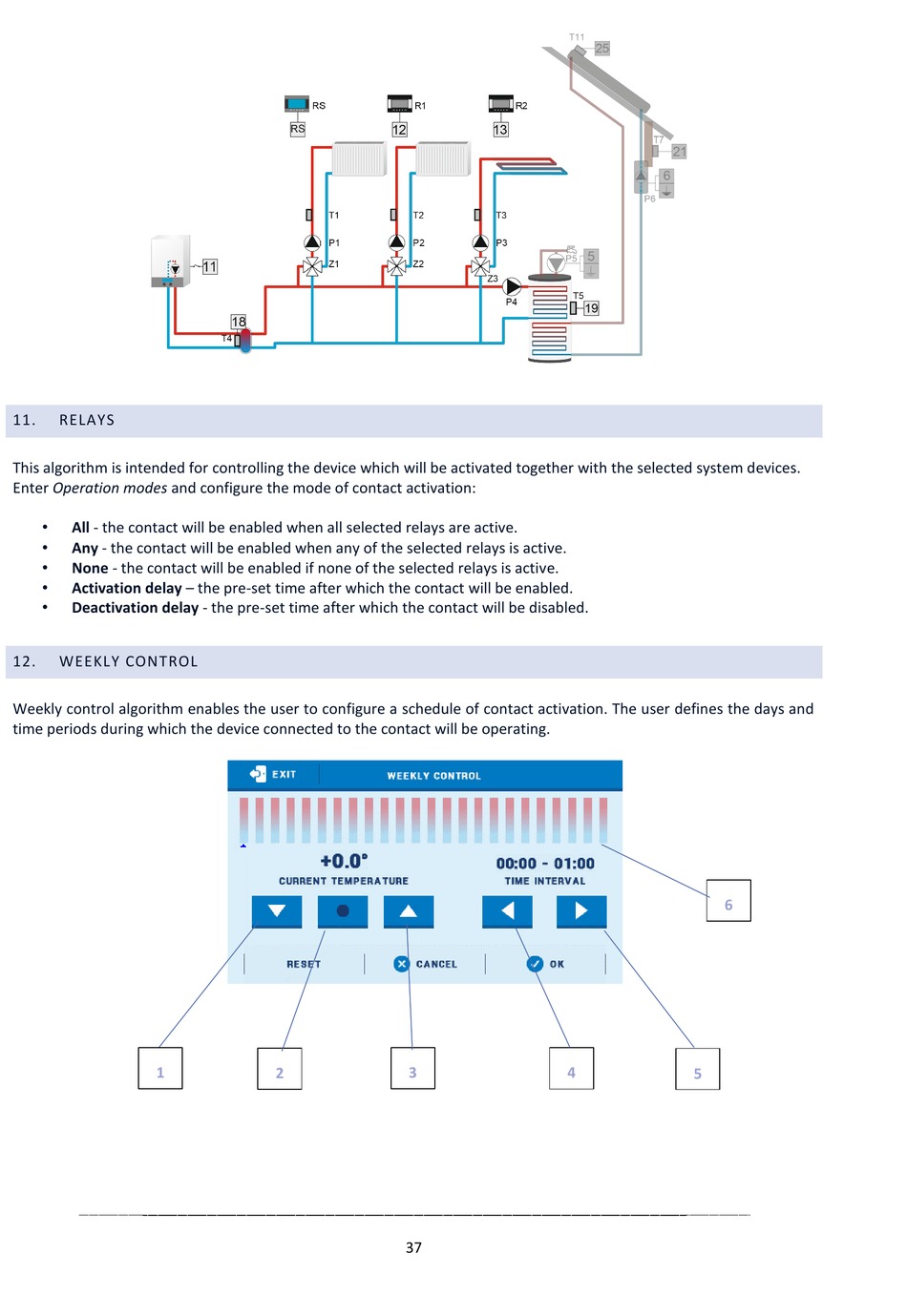

11.
RELAYS
This algorithm is intended for controlling the device which will be activated together with the selected system devices.
Enter Operation modes and configure the mode of contact activation:
•
All - the contact will be enabled when all selected relays are active.
•
Any - the contact will be enabled when any of the selected relays is active.
•
None - the contact will be enabled if none of the selected relays is active.
•
Activation delay – the pre-set time after which the contact will be enabled.
•
Deactivation delay - the pre-set time after which the contact will be disabled.
12.
WEEKLY CONTROL
Weekly control algorithm enables the user to configure a schedule of contact activation. The user defines the days and
time periods during which the device connected to the contact will be operating.
1
3
2
37
6
4
5
