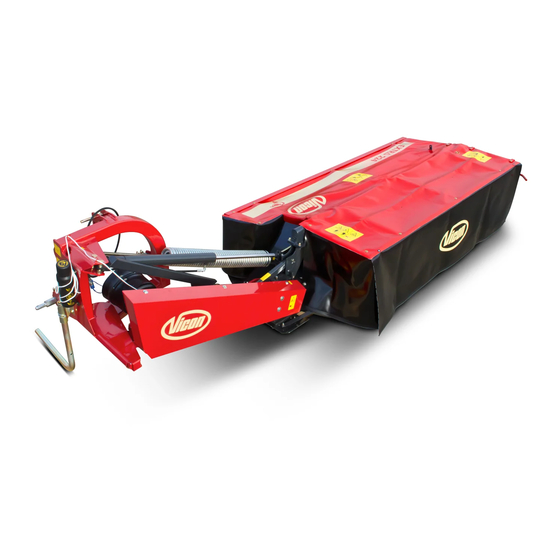

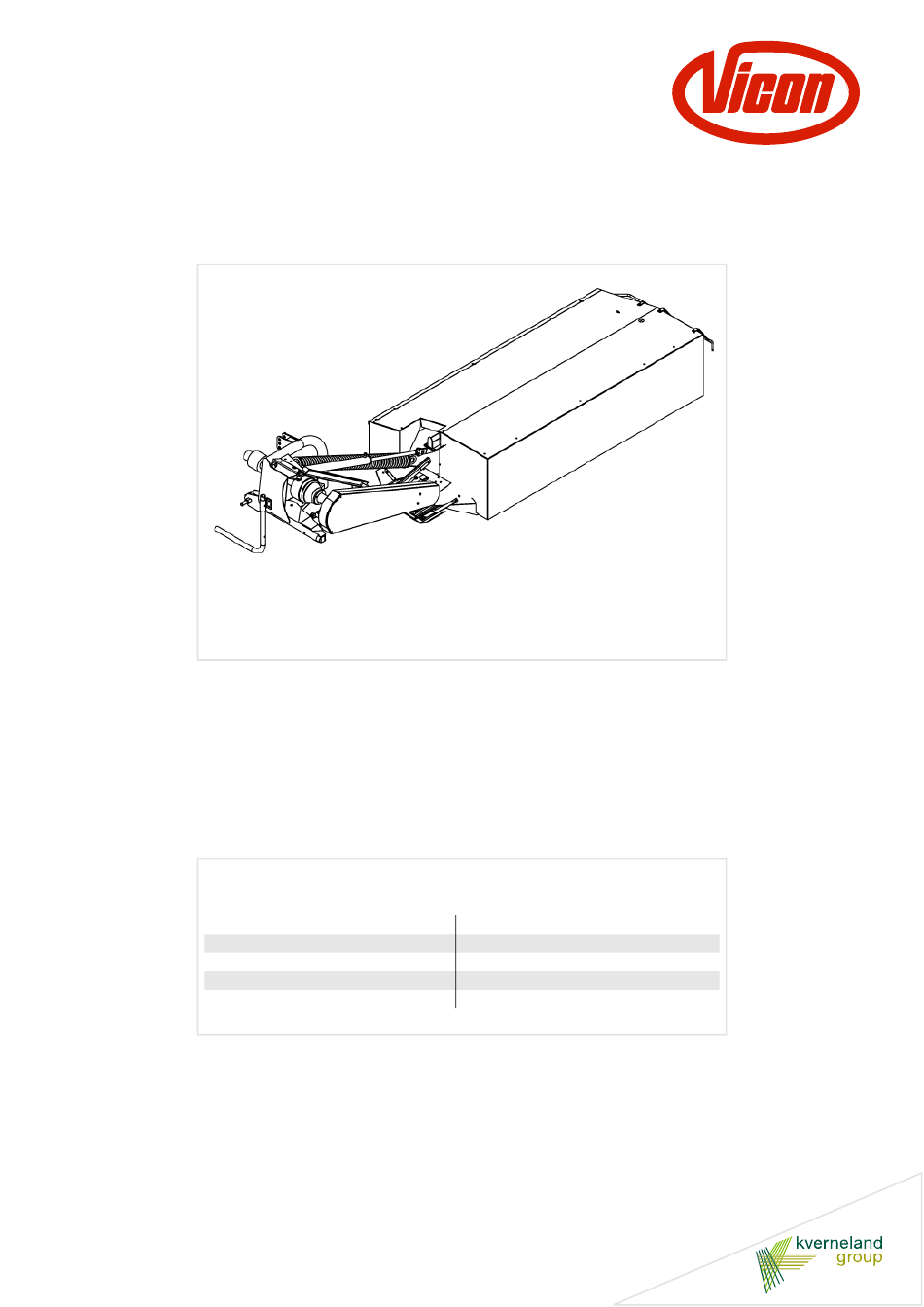

- Page 1 Extra 224 - 228 - 232 Assembly instruction Translation of the original assembly instruction Edition 11.2012 Date of print 04.2012 Language Document number 24020202EN Index number 2011-12...
- Page 2 INSTRUCTIONS FOR THE RECIPIENT These instructions describe unpacking and assembly of the machine. For the transport from the factory to the user the machine has been dismantled in main components. The fol- lowing assembly instructions will tell you how to reassemble the machine. Please follow the assembly order shown and use the types and sizes of bolts shown for assembly of the parts.
-
Page 3: Meaning Of The Symbols
Preface Preface Meaning of the symbols This pictogram indicates tips and additional information. This warning triangle indicates important safety information and danger. Failure to observe this safety information can result in: • Serious faults in the correct operation of the machine. - Page 4 Assembly Remove all loose parts from the box. Assembly Loosen and remove the bolt from the box. Use a crane to lift the cutterbar for the three-point hitch. Remove the three-point hitch. Use a crane to swing the transmission over as shown.
- Page 5 Assembly Lift the three-point hitch as shown. Place the three-point hitch around the crossbar as shown. Swing the three-point hitch into place as shown. Make sure that the three-point hitch is properly supported.
- Page 6 Assembly Mount the protection cap at the P.T.O. outlet. M8 x 20 (4 pcs.) M8 (4 pcs.) M8 (4 pcs.) Disc Fit the support.
- Page 7 Assembly Please note that the edge shown must turn towards the support. Do not forget to mount the bracket. 197 Nm +/- 5 145 ft.lbs. +/- 4 M16 x 55 (4 pcs.) ø30 x ø16,5 x 15 ø30 x ø16,5 x 10 ...
- Page 8 Assembly Secure the brace. ø35 x ø21 x 21 (2 pcs.) ø20 x 90 ø6 x 30 Fit the bracket as shown. Note the position of the washers. ø12 x 55 ø30.5-ø50x5 (3 pcs.) Check that the pawl is in the position shown.
- Page 9 Assembly Fit the hydraulic cylinder. Secure the hydraulic cylinder. ø20 x 95 ø6 x 30 Secure the hydraulic cylinder. M8 x 30 M8 Lock Nut...
- Page 10 Assembly Fit the stabilizer spring by taking the spindle through the hole shown. Fit the pressure ring. Screw the nut onto the spindle and knock the two pins through the nut and spindle. ø3,5 x 30 ø6 x 30 ...
- Page 11 Assembly Fit the bushing as shown. Fit washer “A”. Turn the recess of the washer outwards. Fit circlip “B”. Lubricate the spindle thoroughly. Tighten the spring. Pre-tighten the spring. • Model 224: 80 mm (3”). •...
- Page 12 Assembly Fit the support leg. M12 x 40 (2 pcs.) ø13-ø24x2,5 (2 pcs.) Fit the locking pawl “A” by means of the pin “B”. ø20 x 70 ø6 x 30 (2 pcs.) Fit the string to the locking pawl. ...
- Page 13 Assembly Secure the hydraulic hose as shown. Lift the machine as shown and remove the support. Mount the skid. Fit the skid. M12 x 35 (3 pcs.) ø13-ø24x2,5 (3 pcs.) M12 Lock Nut (3 pcs.)
- Page 14 Assembly Fit the guard. M10 x 25 ø10,5-ø20x2 M10 Lock Nut M12 x 45 ø13-ø24x2,5 M12 Lock Nut Special for model 232 Fit the guard. M10 x 25 ø10,5-ø20x2 M10 Lock Nut M10 Lock Nut M10 x 30 ø10,5-ø20x2 ...
- Page 15 Assembly Fit the rear tarpaulin frame. M12 x 40 (8 pcs.) ø13-ø24x2,5 (8 pcs.) M12 Lock Nut (8 pcs.) Fit the front tarpaulin frame. M12 x 40 224: 3 pcs. 228: 4 pcs. 232: 4 pcs. ø13-ø24x2,5 224: 3 pcs. 228: 4 pcs.
- Page 16 Assembly Place the tarpaulin over the frame as shown. Fit the end frames “A”, ”B” and the edging “C” and fasten the tarpaulin. M10 Lock Nut ø10,5-ø20x2 M10 x 25 2620: 8 pcs. 2620: 8 pcs. 2620: 8 pcs. 2624: 8 pcs.
- Page 17 Assembly Secure the tarpaulin. M10 x 19 ø10,5-ø30x2.5 M10 Lock Nut M10 x 25 ø10,5-ø20x2 M10 Lock Nut Fit the pin. Fit the lifting pins. M16 x 110 ø17-ø30x3 M16 Lock Nut 225 Nm (165 ft.lbs.)
- Page 18 Assembly Fit the lifting pins. Fit the P.T.O. shaft.
