Advantech ITA-5710 Series Startup Manual page 2

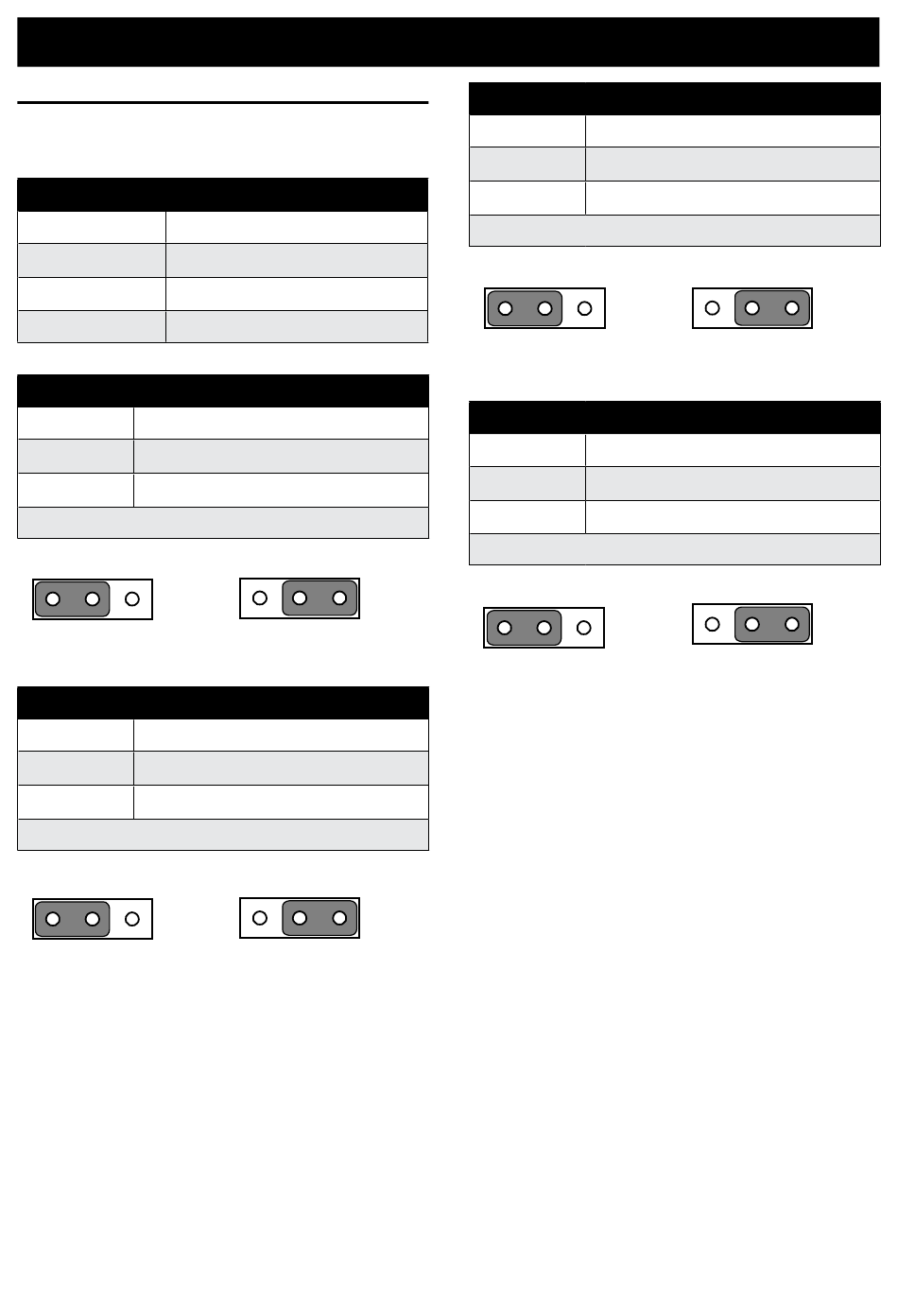

Jumpers
Jumper Setting
The board has a number of jumpers that allow you to con-
figure your system to suit your application.
The table below lists the function of each of the jumpers.
Name/Function
JLVDS1 LVDS voltage setting
JCMOS1 Clear CMOS setting
VCC_GPIO1 GPIO voltage setting
PSON1 Power on mode setting
JLVDS1: LVDS Voltage Setting
Pins Setting
1-2 +V5
2-3 Normal (+V3.3)*
* Default setting
1 2 3
+V5
JCMOS1: Clear CMOS Setting
Pins Setting
1-2 Default*
2-3 Clear CMOS setting
* Default setting
1 2 3
Default Setting
2 ITA-5710 Startup Manual
1 2 3
+V3.3
1 2 3
Clear CMOS Setting
VCC_GPIO1: GPIO Voltage Setting
Pins Setting
1-2 +V5_SB
2-3 Normal (+V3.3_SB)*
* Default setting
1 2 3
+V5_SB
PSON1: Power On Mode Setting
Pins Setting
1-2 AT mode
2-3 ATX mode*
* Default setting
1 2 3
AT Mode
1 2 3
+V3.3_SB
1 2 3
ATX Mode
