Repair Guide for

Symmetry XT 3.0 Series

Version 1 – 03.01.22

Table of Contents

Need help?

Do you have a question about the Symmetry XT 3.0 Series and is the answer not in the manual?

Questions and answers

Summary of Contents for Amantii Symmetry XT 3.0 Series

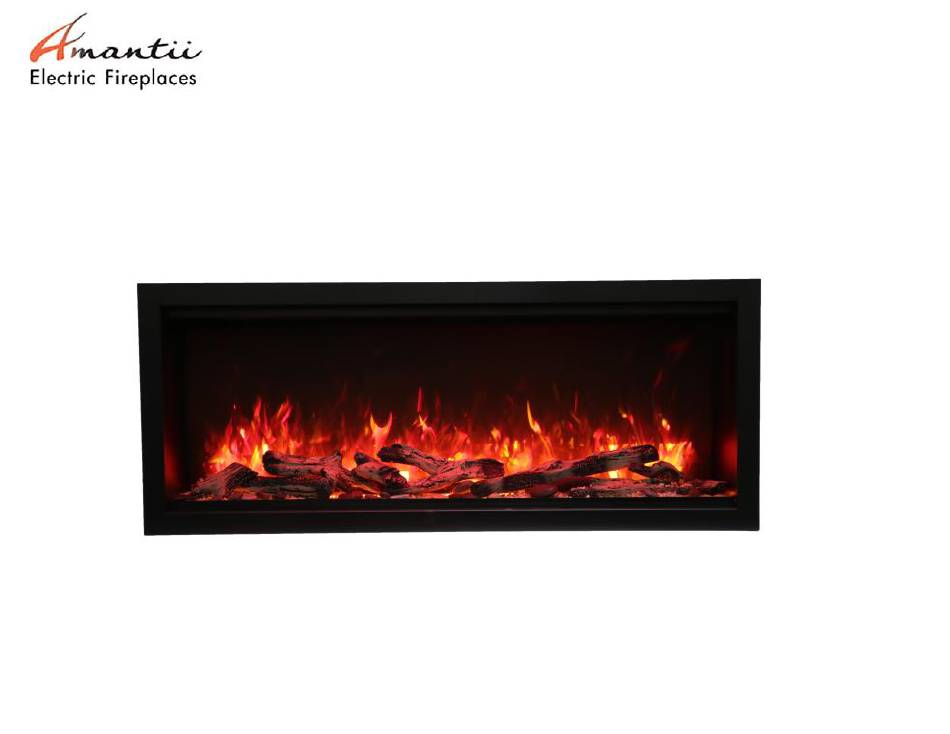

Page 1 Repair Guide for Symmetry XT 3.0 Series Version 1 – 03.01.22...
Page 2: Table Of Contents
Content • Replacing the LED light • Replacing the flicker motor • Replacing the heating element • Replacing the PCB board • Replacing the signal receiver • Replacing the canopy light • Replacing the touch panel • Replacing the Wi-Fi card...
Page 3 Replacing the LED Tray Lights Step 1 To remove the trim, remove the screws circled in red...
Page 4 Magnetic stone Trim Note that there are magnetic stones securing the bottom of the trim to the fireplace...
Page 5 Step 2 After the trim’s been removed, remove the front glass panel. Front glass panel...
Page 6 Step 3 Remove the steel panels holding the glass tray by removing the screws circled in red The steel panels...
Page 7 Step 4 To remove the tray glass panel, lift one end upwards.
Page 8 The tray lights are below the glass panel.
Page 9 Step 5 A new LED strip can be installed by unbuckling the hooks that hold the failed one, unplugging and replacing it Unbuckle Unplug...
Page 10: Replacing The Led Light
Replacing the LED flame light You arrive here after following Steps 1 to 4 in Replacing the LED Tray Lights Step 1 The steel bar fixing the back glass must be removed by unscrewing the screws circled in red. The back glass can then be removed...
Page 11 Zoomed View Zoomed View Step 2 Simply undo the screws circled in red remove the flame stencil...
Page 12 HOOK BUCKLE Step 3 The defective LED strip must be removed from the hooks and the buckle must be unplugged to replace it...
Page 13: Replacing The Flicker Motor
Replacing the flicker motor You arrive here after following Step 1 to 4 in Replacing the LED Tray Lights.
Page 14 Zoomed View Zoomed View Step 2 Simply undo the screws circled in red to remove the flame stencil...
Page 15 On the left side is the flame motor that appears after the flame stencil has been removed.
Page 16 Step 3 Remove the screws Disconnect the Remove the screw to take off the motor motor from the rod...
Page 17 Step 4 Remove the inner top panel by unscrewing the screws circled in red.
Page 18 Step 5 Pull down the inner top panel. INNER TOP PANEL...
Page 19 Step 5 Unplug the flicker motor from the circuit board and replace it with a new one.
Page 20: Replacing The Heating Element
Replace the heating element You arrive here after following Step 1 to 4 in Replacing the LED Tray Lights. mounting .
Page 21 Step 2 Remove the screws circled in red to take off the inner top panel.
Page 22 The inner top panel holds the heating element, circuit board, signal receiver, and WiFi card HEATING ELEMENT INNER TOP PANEL PLEASE NOTE for SYM-60/74/88/100-XT(120V model), there are 2 sets heating elements, the repair procedure remains the same.
Page 23 Step 3 To disconnect the heating element from the inner top panel, remove the screws circled in red...
Page 24 Step 4 The heating element must be unplugged to be changed.
Page 25 Replace the Circuit Board You arrive here after following Steps 1 to 4 in Replacing the LED Tray Lights...
Page 26 Step 2 Remove the screws circled in red to take off the inner top panel.
Page 27 The inner top panel holds the heating element, circuit board, signal receiver, and WiFi card INNER TOP PANEL Circuit board...
Page 28 Step 3 Remove the screws circled in red and replace the failed circuit board with a new one.
Page 29: Replacing The Signal Receiver
Replace the signal receiver You arrive here after following Step 1 to 4 in Replacing the LED Tray Lights...
Page 30 Signal receiver is situated here...
Page 31 Step 2 Remove the screws circled in red to disconnect the signal receiver from the fireplace.
Page 32 Step 3 Remove the screws circled in red to take off the inner top panel...
Page 33 Step 4 Unplug the signal receiver from the circuit board and replace it with a new one.
Page 34: Replacing The Canopy Light
Replace the Canopy light You arrive here after following Step 1 to 4 in Replacing the LED Tray Light.
Page 35 Step 2 Remove the screws circled in red to take off the inner top panel...
Page 36 The heating element, circuit board, canopy light, signal receiver and WiFi card are all fixed on the inner top panel The canopy light...
Page 37 Step 3 Unscrew the screws circled in red to disconnect the heating assembly form the inner top panel.
Page 39 Step 4 Unscrew the screws circled in red to disconnect the canopy light assembly from the inner top panel.
Page 40 Step 5 Unplug to change a new LED strip for Canopy light. LED strip for Canopy light...
Page 41: Replacing The Touch Panel
Replace the Touch Panel Follow STEP 1 to 4 in Replace Tray LED light, you arrive at here.
Page 42 Step 2 Remove the screws circled in red to take off the inner top panel.
Page 43 The inner top panel holds the heating element, circuit board, signal receiver, and WiFi Card Touch panel lies here...
Page 44 Step 3 Unscrew the screws circled in red to take off the touch panel.
Page 45: Replacing The Wi-Fi Card
Replace the Wi-Fi card You arrive here after following Step 1 to 4 in Replacing the LED Tray Lights.
Page 46 Step 2 Remove the inner top panel by removing the screws circled in red.
Page 47 The inner top panel holds the heating element, circuit board, signal receiver, and WiFi card Wi-Fi card is situated here...
Page 48 Step 3 To replace a new WiFi card, remove the screws circled in red and unplug the old one .
