Uplift Desk MVT013 Instructions

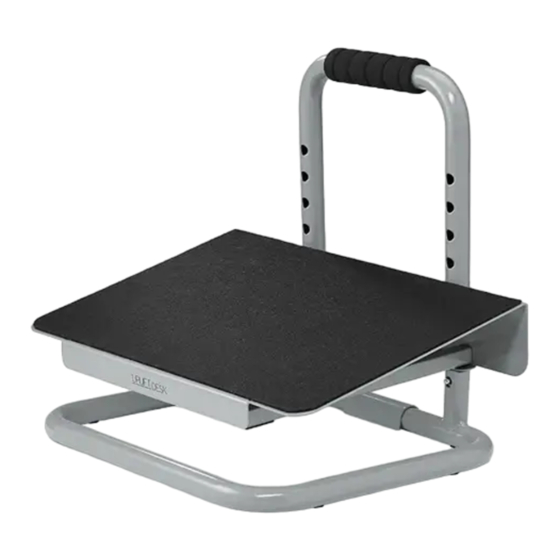

Elevate Footrest
SKU: MVT013

Package Contents

Handle
© UPLIFT Desk • 800-349-3839 • info@upliftdesk.com • upliftdesk.com
Base Platform

Step 1

Paying attention to the orientation, insert the Handle
into the tubes on the Base as shown until the spring
pins click into place. You may need to depress the
spring pins slightly with your finger to get them into
the base.

Step 2

A. Estimate the Platform height you prefer by hold-
ing it next to the Handle and Base assembly. If the
use will be similar to a bar foot rail while stand-
ing, we recommend setting the Platform height to
around 7" using the second holes from the bottom
in the Handle.
B. Holding the Platform vertical as shown, insert the
hooks on the back of the Platform into the holes
along the handle that you selected in the previous
step. Make sure the Handle holes are at the same
height on each side so the Platform sits level.
C. Rotate the Platform down until the back of the
Platform rests against the Handle
Step 3
(optional)
A. If you choose to place the Platform directly on the
floor without using the base, first put an End Cap
on each of the Platform's hooks.
B. Remove the paper backing from each of the four
Pads and place them on the bottom of the Plat-
form.
Pad End Cap
(qty 4) (qty 2)
