Wiring Diagram - Lippert Power Step 2.0 Owner's Manual

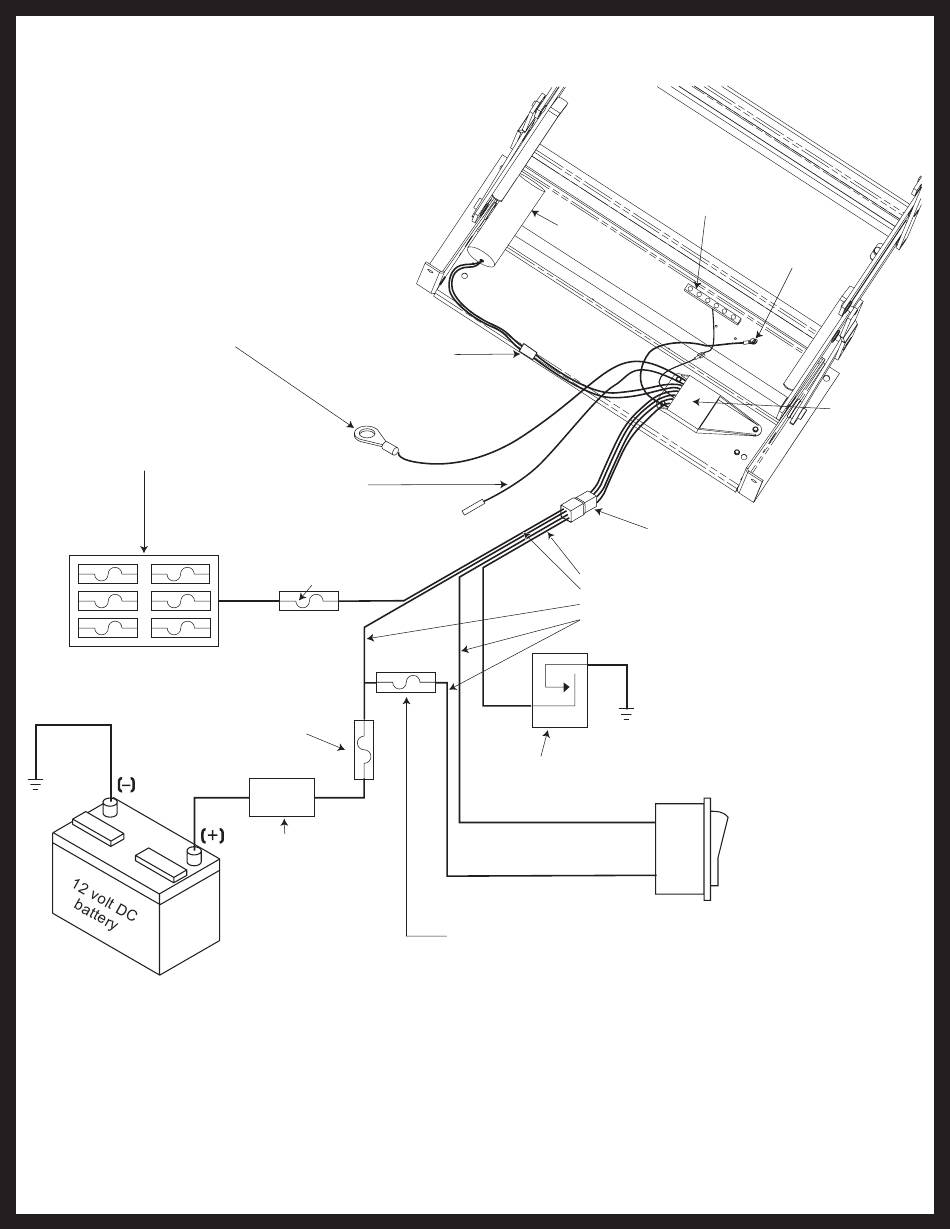

Wiring Diagram

Step Wiring
12 AWG green ground wire
must be securely attached to
the chassis for step to operate
Fuse block
IMPORTANT:
The yellow wire must go to a
terminal marked IGN (ignition)
or to another terminal that is hot
when the ignition is turned on.
Vehicle Wiring
20-25 amp fuse or
circuit breaker required
Chassis
ground
Rev: 01.07.22
Two-way
connector
16 AWG purple
optional step light switch
may be connected to porch
light switch
5-6 amp maximum fuse or
circuit breaker required
Battery
disconnect
box/switch
IMPORTANT:
If the switch is
'OFF' the step
will not
operate.
Motor
assembly
16 AWG brown
16 AWG yellow
12 AWG red
16 AWG white
Normally OPEN
magnetic door switch
5-6 amp maximum fuse or
circuit breaker (not supplied)
Page 5
Understep light
12 AWG green
ground to step top
Four-way
connector
Chassis ground
Step
Switch
Control unit
(black)
CCD-0005465
