SlimRack
Plus Slide-out
®
OEM INSTALLATION MANUAL

Advertisement

loading
Need help?

Need help?

Do you have a question about the SlimRack Plus and is the answer not in the manual?

Questions and answers

Related Manuals for Lippert SlimRack Plus

Summary of Contents for Lippert SlimRack Plus

  • Page 1 SlimRack Plus Slide-out ® OEM INSTALLATION MANUAL...

  • Page 2: Table Of Contents

    TABLE OF CONTENTS Introduction Safety General Requirements Resources Required Component Descriptions SlimRack Plus Slide-out Room Slide Rating Chart SlimRack Plus Slide-out Chassis Specification System Slide-outs Recommended Wall Construction or Equivalent Lippert SlimRack Plus Fifth Wheel Lippert SlimRack Plus Supports on the Top of the Slide Room on the Main Frame Only...

  • Page 3: Introduction

    In order to secure warranty coverage, each new application or changes to existing applications MUST be audited and approved by Lippert with a signed document. Audits can be arranged by contacting your account representative.

  • Page 4: Resources Required

    Performing an Initial Synchronization once at the factory. • Floor rollers (not supplied by Lippert Components) that support the slide-out's weight while extending and retracting the slide-out. Only floor rollers approved by Lippert Components can be used with the system.

  • Page 5: Slimrack Plus Slide-Out Chassis Specification

    SlimRack Plus Slide-out Chassis Specification System Slide-outs For laminate units with rollers mounted to the floor (Fig. 1 and Fig. 2), one standard outrigger is to be placed at the beginning and end of each slide room opening. A minimum of two slide outriggers will be required under each slide room.

  • Page 6: Recommended Wall Construction Or Equivalent

    Add an additional slide outrigger for every 36" thereafter. NOTE: For stick and tin units, Lippert Components recommends that the header and footer mirror each other in size if mounting rollers on the sidewall. Please reference the supplier's span table for header size and length.

  • Page 7: Fifth Wheel Lippert Slimrack Plus

    Fifth Wheel Lippert SlimRack Plus The room opening in (Fig. 5) will be the same except for using 1" x 5" .070" (25.4mm x 127mm 1.78mm) aluminum for the header and 1" x 3" .070" for the vertical uprights. Header should extend 2' (61cm) beyond the room opening.

  • Page 8: Upper Deck Slide Room Opening

    Upper Deck Slide Room Opening If a fifth wheel has a Lippert SlimRack Plus slide opening in the upper deck area, the bottom cross tube should be equal to, or longer than, the header tube. If additional height is needed, the manufacturer will need to add another cross tube that is .060"...

  • Page 9: Slide Room Opening Bottom Section

    "Upper Deck Slide Room Opening" section. This piece is typically removed when installing the Lippert SlimRack Plus slide, depending on how the side wall sets in relation to the floor (Fig. 7). When the bottom support tube is left in place, it is because wall openings may fall into a wheel well area that sets higher than the floor (Fig.

  • Page 10: Square

    Backers are to be incorporated into slide room construction, positioned where the SlimRack Plus gear racks will be mounted. Lippert recommends the backers be a 1" x 3" .060" (25.4mm x 76.2mm 1.5mm) aluminum that is wood stuffed. See diagram (Fig. 9) of slide room with backers. The backers do not need to be stuffed with wood if the aluminum wall thickness being used is at least .125".
  • Page 11 2" wide. The interior tube must be a minimum of 3" wide. For stick and tin builds (Fig. 11), Lippert requires a 1" x 4"...

  • Page 12: Prepare Slide Mechanism

    Prepare Slide Mechanism Retain shipping straps on slide mechanism (Fig. 12). If system has the reusable installation locator brackets installed (Fig. 12), proceed with installation. If not, then snap on brackets to the lower gear rack where the shipping straps are attached to the end brackets. Fig.

  • Page 13: Slide Mechanism

    T-molding, NOTE: For sealing the screws used to attach end brackets on the ends of the gear rack arms, Lippert recommends RTV Silicone, rubber gaskets or closed cell foam gaskets. Do NOT use any type of sealant putty as this can intrude into the mechanism and possibly cause the system to malfunction.

  • Page 14: Prepare Wall Opening For Slide Room Installation

    Prepare Wall Opening for Slide Room Installation Prepare upper (Fig. 14A) and lower (Fig. 14B) outer wall surfaces according the seal manufacturer’s requirements to clean and prepare the area for complete adhesion of sealant. NOTE: Corners need to be at 90° with no obstructions. Fig.
  • Page 15 Install rollers per guidelines: End rollers 6” from wall opening side wall; span rollers along the slide room sill every 24” - 36” between rollers to support the weight of the slide room. NOTE: Rollers must be approved by Lippert. Fig. 16 "...

  • Page 16: Vertical Channel Assemblies With Two Flanges

    Vertical Channel Assemblies with Two Flanges Remove the inner flange (Fig. 17) from each side of the vertical channel assemblies before lifting the slide-out into position. Proceed with slide room installation. Fig. 17 Inner Flange Page 16 Rev: 05.22.24 CCD-0007720...

  • Page 17: Slide Room Installation

    Slide Room Installation Measure the slide room width and the wall opening (Fig. 18). The wall opening needs to be 5 " wider than the actual slide room measurement. Do not attempt to install the slide room in the unit if this dimension is more than 6"...

  • Page 18: Specifications

    Specifications Interior Flange 0.1875 (4.8) 0.1875 1.96 (4.8) (49.7) Example: Standard Flange 0.1875 ["H" system] (4.8) Rack Color - Black - Silver Opening Width = 2.875 (+/-0.125") Slide-out Room 2.875 (+/-0.125") [67mm +0mm/-3mm] [67mm +0mm/-3mm] Width + 5.75" (+0.25"/- 0.25") Standard Room Standard Room Wall to Opening...

  • Page 19: Insert Slide Room

    Insert Slide Room Insert the completed slide room into wall opening, taking care to center "H" columns within the opening. Center the box in the slide opening. NOTE: Verify the weight of the slide-out is supported by the floor rollers (Fig. 16) and not the slide-out mechanism.
  • Page 20 10. If inner flange was removed from vertical channel assemblies with two flanges, reinstall inner flange. 11. Attach the interior slide room fascia. Fastener spacing must be 6" to 8" apart unless using side- mounted stop angles. NOTE: For safety precautions, interior slide room fascia must be attached prior to operating the slide room. 12.

  • Page 21: Electrical Components

    Electrical Components NOTE: The controller will accept a rocker switch input by a four-pin Molex connector (recommend 39-01- 2045 or equivalent). The OEM is responsible for supplying the mating connector to the controller connector (Molex P/N 39301040). The controller is not waterproof. Mount the controller in a clean, dry and weathertight location that will keep it from being damaged but is easily accessible for service.

  • Page 22: Pre-Operation Check

    Route and attach the proper gauge electrical wire from the controller to the 12V DC battery. See Wiring Diagrams (Figs. 30 and 31). NOTE: Lippert recommends this circuit be protected with a 30 amp in-line fuse/resettable breaker (not included). Determine location to mount the wall switch. The location must be in view of slide-out and have a minimum depth of 1"...

  • Page 23: Operation

    Prior to Moving the Slide-Out Room The First Time The SlimRack Plus Controller constantly learns and refines the syncing of both sides. The first time it is run, the slide may skew slightly more than subsequent runs. To ensure the user has a quality first experience, it is...

  • Page 24: Modes

    Modes The SlimRack Plus Slide-Out controller has multiple operating modes. Normal Operating Mode This is the operating mode which extends and retracts the slide while maintaining synchronization between the two sides. The controller will self-synchronize, detect end-of-travel, detect and store faults and electronically protect the slide-out when certain faults are detected.

  • Page 25: Manual Override Mode

    When manually retracting the slide-out room, make sure that both sides of the slide-out room move together. Damage to the slide-out room may result if movement is not uniform. Manual Override Mode In the event that power is lost to the slide-out motor(s), the slide-out room can be manually retracted by following these steps.

  • Page 26: Alternate Override Modes

    Alternate Override Modes If none of the previous override methods retract the slide-out room, it may be possible to manually retract the slide-out room by one of the following alternate methods. Both of these procedures will only be possible if there is access to the described areas. Manually retract the slide-out room using a ratchet and socket attached to the end of the coupler (Fig.
  • Page 27 When manually retracting the slide-out room, make sure that both sides of the slide-out room move together. Damage to the slide-out room may result if movement is not uniform. 1/2” Manually retract the slide-out room by turning the square drive shaft (Fig. 28) of each vertical channel assembly.

  • Page 28: Troubleshooting

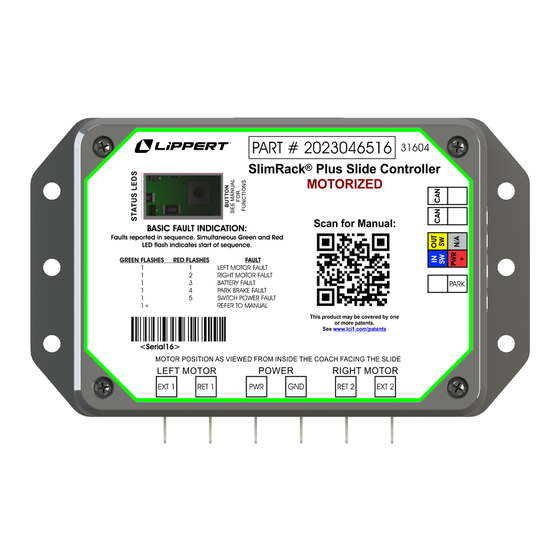

    Troubleshooting The SlimRack Plus Slide-Out controller (Fig. 29) detects several faults. LEDs on the controller are used to indicate when the controller is driving a slide-out and faults. The QR code on the controller can be scanned with a mobile phone camera and leads to more troubleshooting documentation.

  • Page 29: Switching Between Operating Modes

    Switching Between Operating Modes It is possible to switch between operating modes using the mode button. The controller will return to normal operating mode on its own after 2 minutes, even if being driven. NOTE: When in electronic override mode, electronic protections will be disabled. Operating Modes Presses Function...

  • Page 30: Led Indications

    LED Indications • When driving motors, the green LED and red LED will blink synchronously. • When indicating faults, the LEDs blink sequentially, report all faults and repeat. The green LED will blink once or twice to indicate the reporting mode, followed by one to several blinks of the red LED to indicate each fault.

  • Page 31: Maintenance

    Maintenance The Lippert slide-out system has been designed to require very little maintenance. To ensure the long life of the slide-out system, follow these simple procedures: When slide-out room is extended, visually inspect the slide gear rack assemblies. Check for excess buildup of dirt or other foreign material.

  • Page 32: Wiring Diagram - Towable

    Wiring Diagram - Towable Fig. 30 Wall Switch Slide-Out Controller OEM- Supplied Wire Connector 30 Amp Circuit Chassis Breaker Page 32 Rev: 05.22.24 CCD-0007720...

  • Page 33: Wiring Diagram - Motorized

    Wiring Diagram - Motorized Fig. 31 Wall Switch Slide-Out Controller To Park Brake Signal OEM- Supplied Wire Connector 30 Amp Circuit Chassis Breaker Page 33 Rev: 05.22.24 CCD-0007720...
  • Page 34 Lippert representative has been provided.  Any unauthorized use shall void any applicable warranty.  The information contained in this manual is subject to change without notice and at the sole discretion of Lippert.  Revised editions are available for free download from lippert.com.
