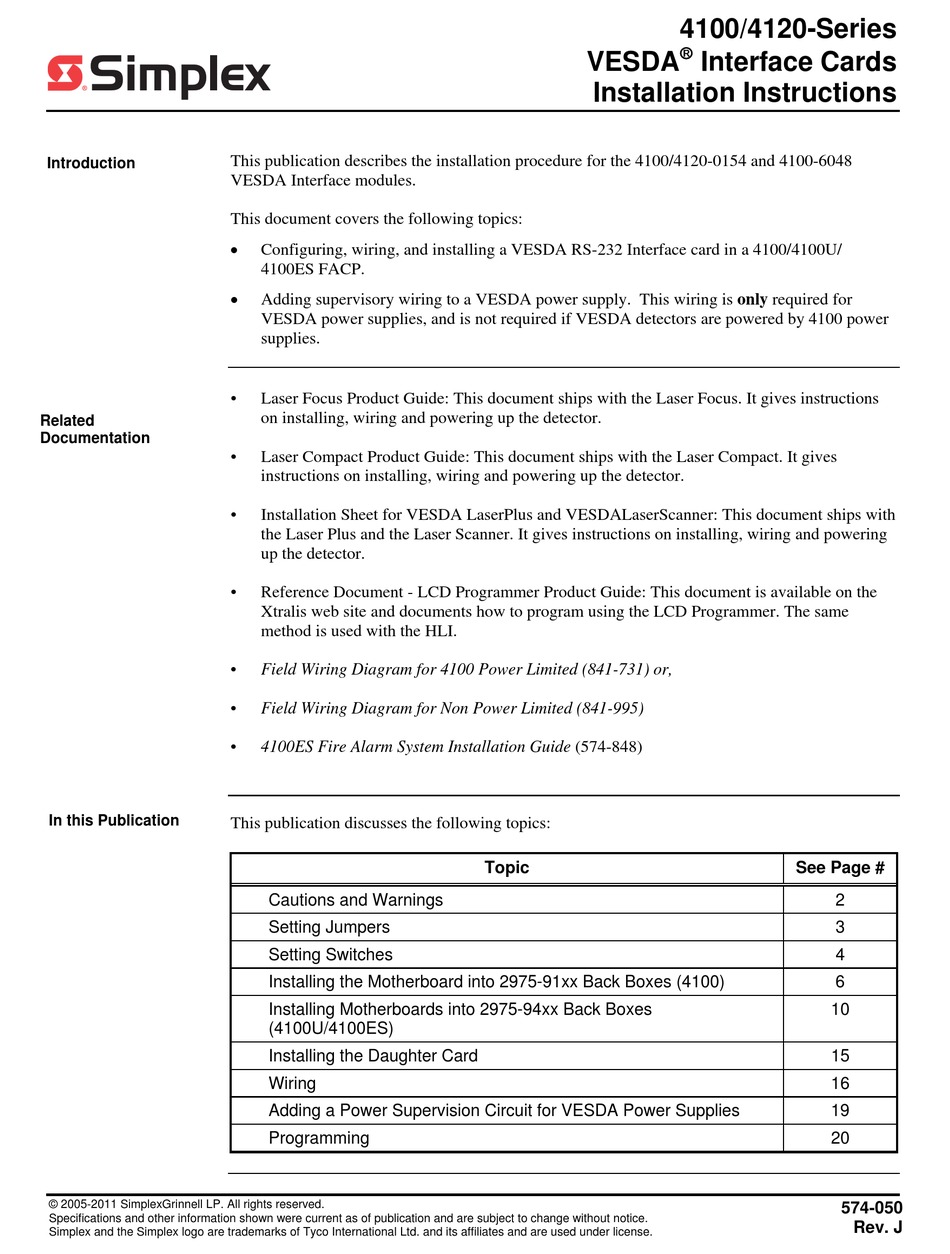

This publication describes the installation procedure for the 4100/4120-0154 and 4100-6048
VESDA Interface modules.
This document covers the following topics:
Configuring, wiring, and installing a VESDA RS-232 Interface card in a 4100/4100U/
4100ES FACP.
Adding supervisory wiring to a VESDA power supply. This wiring is only required for
VESDA power supplies, and is not required if VESDA detectors are powered by 4100 power
supplies.
•
Laser Focus Product Guide: This document ships with the Laser Focus. It gives instructions
on installing, wiring and powering up the detector.
•
Laser Compact Product Guide: This document ships with the Laser Compact. It gives
instructions on installing, wiring and powering up the detector.
•
Installation Sheet for VESDA LaserPlus and VESDALaserScanner: This document ships with
the Laser Plus and the Laser Scanner. It gives instructions on installing, wiring and powering
up the detector.
•
Reference Document - LCD Programmer Product Guide: This document is available on the
Xtralis web site and documents how to program using the LCD Programmer. The same
method is used with the HLI.
•
Field Wiring Diagram for 4100 Power Limited (841-731) or,
•
Field Wiring Diagram for Non Power Limited (841-995)
•
4100ES Fire Alarm System Installation Guide (574-848)
This publication discusses the following topics:
Cautions and Warnings
Setting Jumpers
Setting Switches
Installing the Motherboard into 2975-91xx Back Boxes (4100)
Installing Motherboards into 2975-94xx Back Boxes
(4100U/4100ES)
Installing the Daughter Card
Wiring
Adding a Power Supervision Circuit for VESDA Power Supplies
Programming
VESDA
Installation Instructions
Topic
4100/4120-Series
Interface Cards
See Page #
2
3
4
6
10
15
16
19
20
574-050
Rev. J
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Simplex VESDA 4100 Series
Summary of Contents for Simplex VESDA 4100 Series
- Page 1 © 2005-2011 SimplexGrinnell LP. All rights reserved. 574-050 Specifications and other information shown were current as of publication and are subject to change without notice. Rev. J Simplex and the Simplex logo are trademarks of Tyco International Ltd. and its affiliates and are used under license.
-
Page 2: Cautions And Warnings
- Upon DO NOT INSTALL ANY SIMPLEX® PRODUCT THAT APPEARS DAMAGED unpacking your Simplex product, inspect the contents of the carton for shipping damage. If damage is apparent, immediately file a claim with the carrier and notify an authorized Simplex product supplier. -
Page 3: Setting Jumpers
Setting Jumpers Verifying Jumper All jumpers on the VESDA RS-232 interface daughter card are factory preset and should not Settings require modification. If necessary, use this section to verify that the jumpers are in the correct positions. See Table 1 and Figure 1. Table 1. -
Page 4: Setting Switches
Setting Switches Switches Switch SW1 on the VESDA RS-232 interface daughter card is a bank of eight dip switches. From left to right (see Figure 2) these switches are designated as SW1-1 through SW1-8. The function of these switches is as follows: ... - Page 5 Setting Switches, Continued Switches Table 2. 4100 Daughter Card Addresses Address SW 1-2 SW 1-3 SW 1-4 SW 1-5 SW 1-6 SW 1-7 SW 1-8 Address SW 1-2 SW 1-3 SW 1-4 SW 1-5 SW 1-6 SW 1-7 SW 1-8...
- Page 6 Installing the Motherboard into 2975-91xx Back Boxes (4100) Overview The VESDA motherboard can be mounted to either 4100 Back Boxes (PID series 2975-91xx) or 4100U/4100ES Back Boxes (PID series 2975-94xx). The 4100/4120-0154 is used for systems with 4100 Back Boxes. ...
- Page 7 Installing the Motherboard into 2975-91xx Back Boxes (4100), Continued Installing into a Review the following guidelines before mounting the motherboard into a 2975-91xx Expansion 2975-91xx Bay. Expansion Bay If a power supply is installed in the bay, it must be installed on the far right of the bay and any relay modules must be installed in the slots immediately to its left.
- Page 8 Installing the Motherboard into 2975-91xx Back Boxes (4100), Continued Connecting the If you need to connect a 733-525 Harness to a motherboard, refer to Figure 5 and follow these 733-525 Harness steps. Make sure to route the power and communication wiring on the left side of the bay. 1.
- Page 9 Installing the Motherboard into 2975-91xx Back Boxes (4100), Continued Connecting the 2. Connect the other end of the harness to the leftmost motherboard in the next bay, as described 733-525 Harness below. Make sure to route the wiring on the left side of the bay. Insert the harness connector with the blue wire into the P2 connector.
- Page 10 Installing Motherboards into 2975-94xx Back Boxes (4100U/4100ES) Overview The VESDA motherboard can be mounted to either 4100 Back Boxes (PID series 2975-91xx) or 4100U/4100ES Back Boxes (PID series 2975-94xx). The 4100/4120-0154 is used for systems with 4100 Back Boxes. ...
- Page 11 Installing Motherboards into 2975-94xx Back Boxes (4100U/4100ES), Continued Installing into a When installing 2 x 11 ½-inch motherboards in a 4100U/4100ES expansion bay, adhere to the 2975-94xx following guidelines: Expansion Bay Each expansion bay assembly includes a chassis, two end supports, one LED/switch frame, and a power distribution interface (PDI) board.
- Page 12 Installing Motherboards into 2975-94xx Back Boxes (4100U/4100ES), Continued Installing into a Use the following procedure when installing motherboards in an expansion bay. Start with the 2975-94xx second slot from the left and fill to the right. Expansion Bay 1. Orient the motherboard with the connector labeled J1 on the right and the header labeled P1 on the left.
- Page 13 Installing Motherboards into 2975-94xx Back Boxes (4100U/4100ES), Continued Connecting the If you need to connect a 733-525 Harness to a motherboard, refer to Figure 9 and follow these 733-525 Harness steps. Make sure to route the power and communication wiring on the left side of the bay. 1.
- Page 14 Installing Motherboards into 2975-94xx Back Boxes (4100U/4100ES), Continued Connecting the 733-525 Harness 733-996 HARNESS 733-525 Harness Connector with Blue Wire Goes to P2 Connector with White Wire Goes to P3 Figure 9. Power and Communication Wiring for Motherboard (4100U/4100ES)
-
Page 15: Installing The Daughter Card
Installing the Daughter Card Installing the The daughter card inserts into the connector located in the center of the motherboard. The Daughter Card connector is keyed so that the daughter card fits only one way. Before installing the card, examine the slot in the motherboard and the fingers on the daughter card and note where the key is located. - Page 16 Wiring General Guidelines All wires must be 18 AWG, minimum, twisted/shielded pair. The Maximum wiring distance is: 18 AWG: 150 ft. 16 AWG: 250 ft. 14 AWG: 400 ft. 12 AWG: 625 ft. All wiring is supervised. Conductors must test free of all grounds.
- Page 17 Wiring, Continued Power-Limited Non-power limited field wiring (AC power, batteries, City connection) must be installed Guidelines and routed in the shaded areas shown in Figure 11. Power-limited field wiring must be installed and routed in the non-shaded areas shown in Figure 11, with the exception of City wiring.
- Page 18 Wiring, Continued Connecting the Wire the 733-571 Harness as shown in Figure 12. Connect the wires to the terminals located at 733-571 Harness the top of the motherboard. 100/ 120 4020 RS232 VESDA Interface Board Assy:565-746 PID:4020-0 54 Port A Port B 2 3 4 5 Not Available...
- Page 19 Power for the VESDA detectors must be from either a VESDA-supplied, UL-Listed power supply, or a Simplex 4100 supply. The nominal voltage is 24Vdc and the maximum power is 20W. Installations where the VESDA detectors are powered by VESDA power supplies require the addition of a supervisory wiring circuit.
- Page 20 Programming Overview Up to 30 VESDA devices can be programmed per VESDA Interface Card. Each VESDA device takes up 4 slots in the Programmer. Four slots are reserved for each VESDA unit because the Laser Scanner can have up to 4 channels ( 4 pipes, one for each channel). Table 3 explains how to map various VESDA devices into the devices shown in the ES Panel Mapping Programmer.
