Overview
The 4100-6062 TFX Interface (hereafter referred to as the TFXi)
provides the following functionality:
It allows a 4100U or a 4100ES Fire Alarm Control Panel
(FACP) to transmit specific events (Fire, Trouble, Supervi-
sory, Signal Silence, System Reset, Control, Utility, etc.)
over the TFXnet to TFX fire panels and annunciators.
It monitors the state of specific TFX points, and turns on the
FACP pseudo points when the state of the TFX point
changes. These pseudo points can be associated with spe-
cific system actions (for example perform a system reset on
the FACP), or they can be utility pseudo points linked to
Custom Control equations that perform facility-specific
actions (for example, turn on relays).
The TFXi consists of a 2" x 11.5" motherboard, which mounts to
the chassis of an FACP, and a daughter card, containing an RS-
232 connector and TFXi firmware, that mounts in a socket on the
motherboard.
Battery current requirements for the 4100-6062 TFX Interface
Module are as follows:
Supervisory Current = 132 mA
Alarm Current
= 132 mA
© 2004. 2011 SimplexGrinnell LP. All rights reserved.
Specifications and other information shown were current as of publication and are subject to change without notice. Tyco Safety Products,
Simplex and the Simplex logo AUTOCALL, TFXnet, and CONSYS are trademarksare trademarks of Tyco International Ltd. and its affiliates
and are used under license.
4100-6062 TFXi Installation
and Programming Instructions
In this Document
Related Documentation - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 2
Setting Jumpers and Switches - - - - - - - - - - - - - - - - - - - - - - - - 2
Installing TFXi Card in an FACP Bay - - - - - - - - - - - - - - - - - - - - 3
Wiring TFXi to TLT-530 - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 5
TLT-530 Configuration - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 5
IDC Monitoring Operation - - - - - - - - - - - - - - - - - - - - - - - - - - - - 8
Adding TFXi Card to Job - - - - - - - - - - - - - - - - - - - - - - - - - - - - 8
Network Option Tab Settings- - - - - - - - - - - - - - - - - - - - - - - - - - 8
Subnet Tab Settings- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 8
Zones Tab Settings - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 9
Points Tab Settings - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 9
Application Programming Overview - - - - - - - - - - - - - - - - - - - - 10
Programming Peer-to-Peer Operation - - - - - - - - - - - - - - - - - - 11
Appendix A. Example Programming Screen - - - - - - - - - - - - - - 16
Appendix B. TFX Predefined System Points- - - - - - - - - - - - - - 17

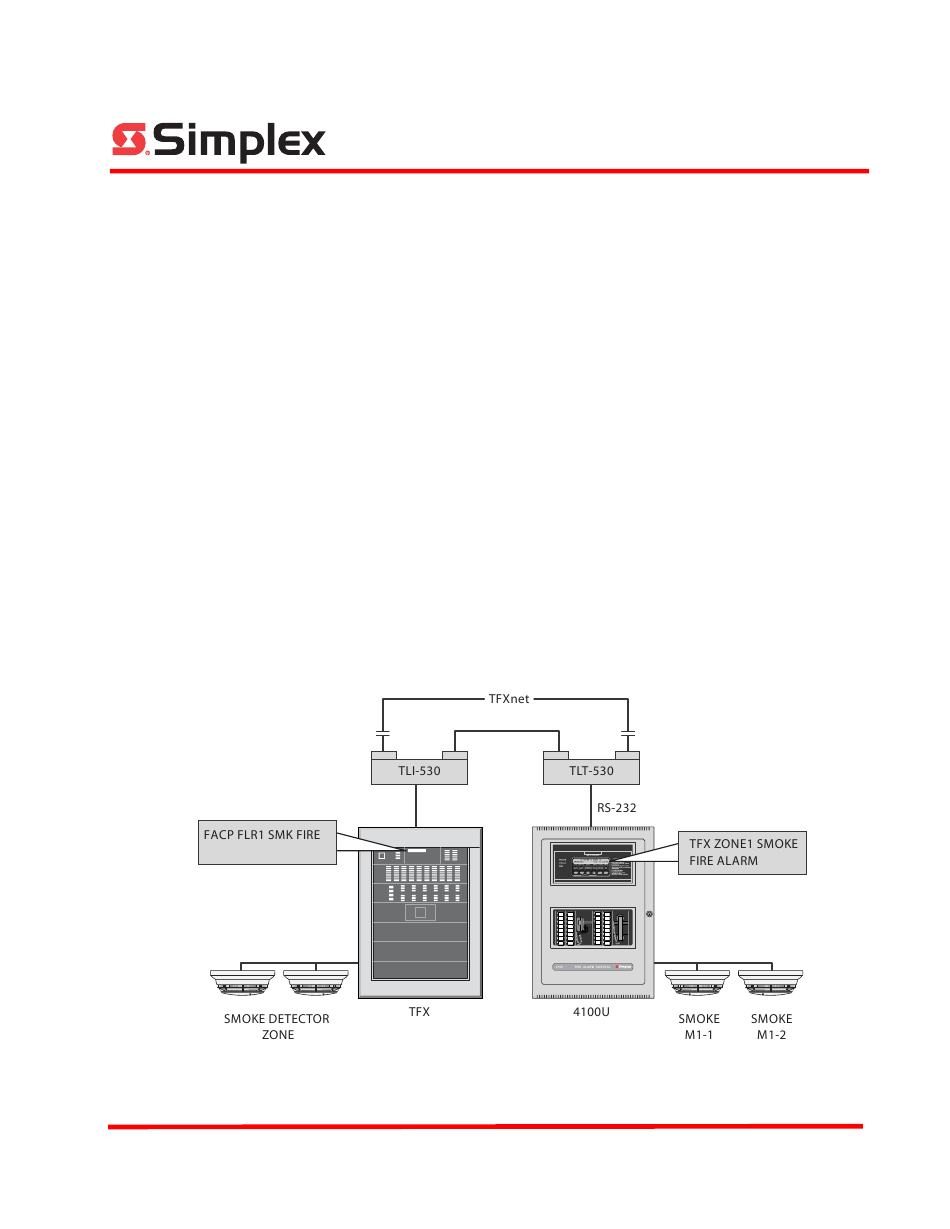

Figure 1
TFXi Functional Overview (4100U Shown)
firealarmresources.com
579-575
Rev. E

Advertisement

Table of Contents
loading

Summary of Contents for Simplex 4100-6062

  • Page 1: Table Of Contents

    Specifications and other information shown were current as of publication and are subject to change without notice. Tyco Safety Products, Rev. E Simplex and the Simplex logo AUTOCALL, TFXnet, and CONSYS are trademarksare trademarks of Tyco International Ltd. and its affiliates and are used under license.
  • Page 2: Related Documentation

    4100-6062 TFXi Installation and Programming Instructions Related Documentation Table 1: Related Documentation Jum per Pin #s Part # Description 574-848 ® Simplex 4100ES Installation Manual Jum per Pin #s 19700344 TLT-530 Network Interface Guide 574-849 Simplex ES Panel Programmer’s Manual...
  • Page 3: Installing Tfxi Card In An Facp Bay

    4100-6062 TFXi Installation and Programming Instructions Slot 1 Slot 2 Slot 3 Slot 4 Slot 5 Slot 6 Slot 7 Slot 8 Figure shows an example address of 3. Refer to Appen- Set SW1-1 IDNet NACs 1,2 & 3 dix D for a list of address set- to ON tings.
  • Page 4 4100-6062 TFXi Installation and Programming Instructions left to right. Slide the motherboard to the left until the pins are completely inserted in the connector. For a CPU bay, If the TFXi motherboard is installed in the CPU bay or in any install motherboards from right to left.
  • Page 5: Wiring Tfxi To Tlt-530

    4100-6062 TFXi Installation and Programming Instructions Wiring TFXi to TLT-530 Sig.Gnd. - 1 Use harness 734-165 to connect the TFXi to the TLT-530 net- RCV In - 2 orange work interface module. Connect the end of the harness contain- XMIT Out - 3...
  • Page 6 4100-6062 TFXi Installation and Programming Instructions Table 5: LK Header Configuration Table 9: SW2 Switch Settings Header Link A Link B SW2 Switch Value (OFF) Network disconnected; data Normal Operation sent to TB2-1-4. Not used Normal Operation Not used Normal Operation...
  • Page 7 4100-6062 TFXi Installation and Programming Instructions Figure 11 TLT-530 and RPS-424 Wiring firealarmresources.com...
  • Page 8: Idc Monitoring Operation

    4100-6062 TFXi Installation and Programming Instructions IDC Monitoring Operation Note: Do not change default settings unless directed to by Tech- nical Support. Refer to TIB 504 for additional information. The IDC is used to monitor normally open contacts of the PSM (976123).
  • Page 9: Zones Tab Settings

    4100-6062 TFXi Installation and Programming Instructions Figure 14 Zones Tab Points Tab Settings Figure 13 Subnet Tab The following sections provide general descriptions of the Points Tab fields. Specific application examples are described in the Zones Tab Settings remainder of this manual.
  • Page 10: Application Programming Overview

    4100-6062 TFXi Installation and Programming Instructions For a non-trouble event, choose Active; otherwise Click on the Group drop down list box and select the select Trouble. group number to which the TFX event selected in Step 4 will be sent.
  • Page 11: Programming Peer-To-Peer Operation

    4100-6062 TFXi Installation and Programming Instructions a System Reset. If a System Reset is attempted without first per- forming a Signal Silence, the reset is not performed. This auto- • For TFX Board/Channel, enter the TFX Channel of the matic change applies to all three of the network modes described device/point, as follows: above.
  • Page 12 4100-6062 TFXi Installation and Programming Instructions For an IDNet channel enter the device address - enter • TFX Event State address (if greater than 127, subtract 127) For a Trouble event, select the appropriate trouble (ex. For a non-addressable point enter the Point value in the 78 for a Battery Fault.
  • Page 13 4100-6062 TFXi Installation and Programming Instructions Table 12: Points Tab Settings, Create a Step 2 Create Custom Control Equation 2. FACP to TFX Signal Silence/System Reset digital utility pseudo point (P515 in the example below) and then create the custom control exam-...
  • Page 14: Programming Tfx Master-To-4100U/4100Es Slave Operation

    4100-6062 TFXi Installation and Programming Instructions FACP. When the TFX point changes states, the corresponding Add a TFXi PUB point mapped to a Signal Silence com- FACP pseudo point activates. mand to the TFX panel. (see P530) Add a TFXi PUB point mapped to a System Reset com- Before editing the Points tab, use the FACP programmer to create mand to the TFX panel.
  • Page 15: Programming 4100U/4100Es Master-To-Tfx Slave Operation

    4100-6062 TFXi Installation and Programming Instructions • Add three EXT points, one each for receiving a Buzzer Table 15: Points Tab Settings, Silence (Ack), Signal Silence and System Reset from the Annunciate FACP Events on TFXnet TFX network. Parameter Setting •...
  • Page 16: Appendix A. Example Programming Screen

    4100-6062 TFXi Installation and Programming Instructions Appendix A. Example Program- Repeat Step 2 for the Reset Key, Panel Silence (local buzzer), and Fire Drill keys. ming Screen Refer to “Programming Peer-to-Peer Operation” for information on receiving and sending points to the TFX network.
  • Page 17: Appendix B. Tfx Predefined System Points

    4100-6062 TFXi Installation and Programming Instructions Appendix B. TFX Predefined Sys- Main Processor board, BATTERY MONITOR input tem Points Main Processor board, SOUNDER A MONITOR input The following is a list of the non-addressable loop points that are predefined within a TFX panel.
  • Page 18: Appendix C. 4100U/4100Es Card Status Troubles

    4100-6062 TFXi Installation and Programming Instructions iv. A broadcast message is received that does not have Main Processor board, FAULT RELAY a sequential sequence number. MONITOR • x-0-5: Network Ground Fault - occurs when the TLT-530 Main Processor board, SOUNDER A RELAY MONITOR detects a ground fault on the network.
  • Page 19 4100-6062 TFXi Installation and Programming Instructions Appendix D. Card Address Set- tings Address SW 1-2 SW 1-3 SW 1-4 SW 1-5 SW 1-6 SW 1-7 SW 1-8 Address SW 1-2 SW 1-3 SW 1-4 SW 1-5 SW 1-6 SW 1-7 SW 1-8 firealarmresources.com...
  • Page 20 4100-6062 TFXi Installation and Programming Instructions Address SW 1-2 SW 1-3 SW 1-4 SW 1-5 SW 1-6 SW 1-7 SW 1-8 Address SW 1-2 SW 1-3 SW 1-4 SW 1-5 SW 1-6 SW 1-7 SW 1-8 firealarmresources.com...
  • Page 21 4100-6062 TFXi Installation and Programming Instructions firealarmresources.com...
  • Page 22 ELECTRICAL HAZARD - Disconnect electrical field power when making any internal adjustments or repairs. All repairs should be performed by a representative or authorized agent of your local Simplex product supplier. STATIC HAZARD - Static electricity can damage components. Handle as follows: •...
