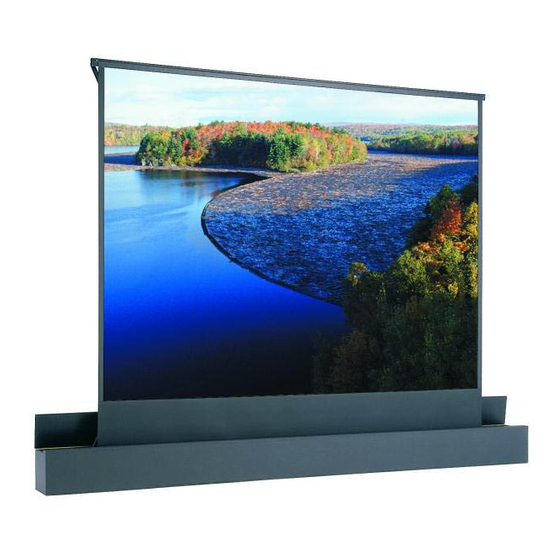

Da-Lite ASCENDER ELECTROL Instruction Book

INSTALLATION

1. The Ascender screen must be installed on a flat, level surface.
2. Refer to the chart below for minimum overhead clearance required to raise the screen.
Diagonal Screen Size
VIDEO
100"
120"
150"
180"
200"
HDTV
106"
119"
133"
159"
3. Refer to figure 1 for electrical connections. Wiring designated as external is to be completed by installer
conforming to local and national codes.
4. Remove packing paper from fabric roller. DO NOT use a knife or sharp object to remove the paper.

SCREEN OPERATION

!
CAUTION!
The arms of the screen are under high spring tension.
Do not stand over the screen while it is operating.
Do not sit, stand, or put anything on the screen case door.
The case door activates a safety switch inside the screen case. If you attempt to raise the screen while something is holding
the door shut, the motor will reverse and retract the screen. The door must be fully closed to activate this switch. Be sure
there is nothing holding the door ajar.
1. The Ascender screen can be operated by the included wall switch or by optional remote controls (IR or RF).
2. To raise the screen, simply push and release the wall switch. The screen will stop at its preset position. If you push
the switch a second time while it is rising, the screen will stop. By pushing the switch a third time the screen will
retract and close.
3. To lower the screen from the fully up position, press and release the wall switch and the screen will retract and
close.
4. Test the screen by running it up and down a few times. Be prepared to stop the screen if needed.
NOTE: Excessive continuous operation may cause overheating. If this happens, the motor will shut off until it cools to normal
operating temperature.
Extended Height
94"
104"
121"
139"
149"
86"
92"
99"
112"
1
