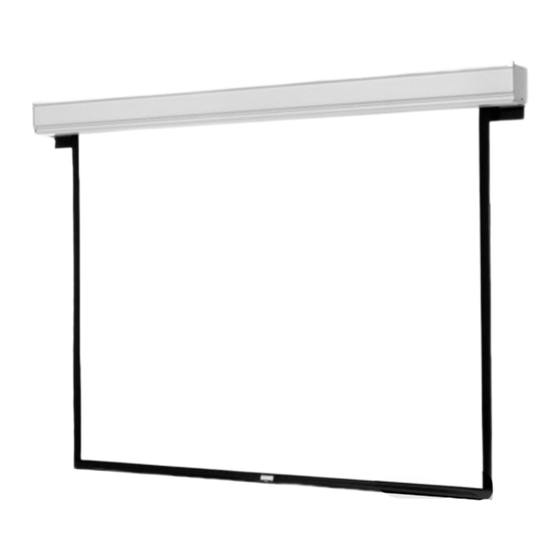

Da-Lite ADVANTAGE DELUXE ELECTROL Instruction Book
  1. Manuals
  2. Brands
  3. Da-Lite Manuals
  4. Projection Screen
  5. ADVANTAGE DELUXE ELECTROL
  6. Instruction book

Da-Lite ADVANTAGE DELUXE ELECTROL Instruction Book

Hide thumbs Also See for ADVANTAGE DELUXE ELECTROL:
1
2
3
4
5
6
7
8
Table of Contents

Advertisement

Quick Links

Download this manual
The
POWER
In
PRESENTATION PRODUCTS
DA-LITE SCREEN COMPANY, INC.
Instruction Book for
3100 North Detroit Street
Post Office Box 137
Warsaw, Indiana 46581-0137
®
®
ADVANTAGE
DELUXE ELECTROL
Phone: 574-267-8101
800-622-3737
Fax: 574-267-7804
Toll Free Fax: 877-325-4832
www.da-lite.com
e-mail: info@da-lite.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ADVANTAGE DELUXE ELECTROL and is the answer not in the manual?

Questions and answers

Related Manuals for Da-Lite ADVANTAGE DELUXE ELECTROL

Summary of Contents for Da-Lite ADVANTAGE DELUXE ELECTROL

  • Page 1 POWER PRESENTATION PRODUCTS DA-LITE SCREEN COMPANY, INC. Instruction Book for 3100 North Detroit Street Post Office Box 137 Warsaw, Indiana 46581-0137 ® ® ADVANTAGE DELUXE ELECTROL Phone: 574-267-8101 800-622-3737 Fax: 574-267-7804 Toll Free Fax: 877-325-4832 www.da-lite.com e-mail: info@da-lite.com...

  • Page 2: Important Safety Instructions

    IMPORTANT SAFETY INSTRUCTIONS When using your video equipment, basic safety precautions should always be followed, including the following: 1. Read and understand all instructions before using. 2. Position the cord so that it will not be tripped over, pulled, or contact hot surfaces. 3.

  • Page 3: Screen Adjustment

    Surface travel is stopped automatically in the fully opened and closed positions by limit switches that are properly adjusted at Da-Lite. Should it be necessary to adjust for more or less drop of picture, proceed in the following manner: NOTE: Use a screw driver or 5/32" Allen wrench to make adjustments.
  • Page 4 MORE SCREEN DROP 1. Place operating switch in “down” position. 2. When the screen stops, turn the white “down” limit knob (Fig. 2) one-quarter turn counterclockwise. Test by raising picture surface approximately two feet, then lower again. Repeat until desired picture surface position is attained. ▲...

  • Page 5: Wiring Diagram

    ADVANTAGE DELUXE ELECTROL INSTRUCTIONS ® ® NOTE: Electrical connections on left end of case. RED (UP) BLACK BLACK (DOWN) WHITE 120V WIRING DIAGRAM GRAY GREEN WHITE BLACK & YELLOW BLACK TO JUNCTION BOX MOUNTED IN SCREEN CASE, IN WHICH INTERNAL WIRING TERMI- WHITE DOOR SWITCH NATES IN WHITE, RED AND BLACK LEADS.
  • Page 6 ADVANTAGE ® DELUXE ELECTROL ® INSTALLATION 7-1/4" 7-1/4" VARIABLE POSITION CASE LENGTH MOUNTING BRACKETS 6-1/8" FLAT BAR MOUNTING METHOD MOTOR END 9-1/4" ELECTRICAL JUNCTION BOX 6-1/8" (SUGGESTED) 3/8" THREADED ROD (NOT INCLUDED) ATTACHED TO MOUNTING BRACKET 7-1/4" FINISHED CEILING SELF-TRIMMING FLANGE 8-3/4"...

  • Page 7: Troubleshooting

    TROUBLESHOOTING SYMPTOM CAUSE SOLUTION Screen will not operate or will not go (a) Incorrect line voltage. (a) Verify 115-125V (or 220-240V). If “down”. insufficient voltage, rewire incoming Motor does not hum. electric line. (b) Blown facility fuse. (b) Replace facility fuse. (c) Tripped facility circuit breaker.
  • Page 8 TROUBLESHOOTING SYMPTOM CAUSE SOLUTION Door does not close. (a) Open door limit switch. (a) Replace switch. (b) No power from screen motor. (b) Replace screen motor. “Down” limit switch incorrect. (a) “Down” limit switch out of (a) See installation instructions. adjustment.
