Summary of Contents for Prominence Home Cherry Hill
-
Page 2: Package Contents
PACKAGE CONTENTS Unpack your fan and check the contents. You should have the following items: PACKAGE CONTENTS 1. Motor Housing 10. Blade (x4) 2. Upper Mounting Bracket 11. Blade Arm (x4) 3. Lower Mounting Bracket 12. Hardware Kit 4. Motor 13. - Page 3 EXPLODED VIEW DETAIL Motor Housing Upper Mounting Bracket Lower Mounting Bracket Motor Blade Blade Arm Light Kit Bulb Glass Globe DIMENSION REFERENCE A. 11.72 in. B. 5.44 in. C. 8.81 in.
-
Page 4: Safety Instructions
SAFETY INSTRUCTIONS READ ALL SAFETY INFORMATION AND INSTALLATION INSTRUCTIONS BEFORE YOU BEGIN INSTALLING THE FAN AND SAVE INSTRUCTIONS. CAUTION: All set screws of the fan must be checked and retightened where necessary before installation. To reduce the risk of personal injury, do not bend the blade brackets when installing the brackets, balancing the blades or cleaning fan. - Page 5 SAFETY INSTRUCTIONS WARNING: To avoid risk of electric shock, be sure to shut off power at the main fuse or circuit breaker box before installing or servicing this fixture. Turning off the electrical power by using the light switch is not sufficient to prevent electrical shock.
- Page 6 ASSEMBLY INSTRUCTIONS 1. Turn OFF the electrical power at the main fuse or circuit breaker. DANGER: Failure to disconnect the power supply prior to installation may result in serious injury or death. 2. Secure the upper mounting bracket to the outlet box (not included) with the screws and washers provided with the outlet box Note: It is very important that you use the proper...
- Page 7 ASSEMBLY INSTRUCTIONS Upper Mounting Bracket 5. Reinstall the previously removed lower bracket screw and upper bracket screws to secure the lower mounting bracket to the upper mounting bracket. Upper Bracket Screw Lower Bracket Lower Screw Mounting Bracket 6. Use wire connectors to connect the fan wires to the power supply wires according to the wiring diagram Black (live) and the following instructions:...
- Page 8 ASSEMBLY INSTRUCTIONS Blade Screw 9. Partially insert the blade screws along with the blade washers through the blade and into the blade arm. Blade Washer Tighten each blade screw with a Phillips screwdriver (not Blade included), starting with the one in the middle. Repeat this step for the remaining blades and blade arms.
- Page 9 ASSEMBLY INSTRUCTIONS 13. Attach pull chain extensions to the pull chains. Note: When facing the reverse switch, the fan pull chain is on the right and the light pull chain is on the left. Pull Chain Extension 14. Turn on the electrical power at the main fuse or circuit breaker and the wall switch.
- Page 10 OPERATING INSTRUCTIONS 1. Using a ceiling fan will allow you to raise your thermostat setting in summer and lower your thermostat setting in winter without feeling a difference in your comfort. In warmer weather, push the reverse switch down which will result in downward airflow creating a wind chill effect.
-
Page 11: Troubleshooting
TROUBLESHOOTING If you have difficulty operating your new ceiling fan, it may be the result of incorrect assembly, installation or wiring. In some cases, these installation errors may be mistaken for defects. If you experience any faults, please check the Troubleshooting section below. If a problem cannot be remedied or you are experiencing difficulty in installation, please contact the Service Department: 1-877-706-3267, 8 a.m. -
Page 12: Limited Lifetime Warranty

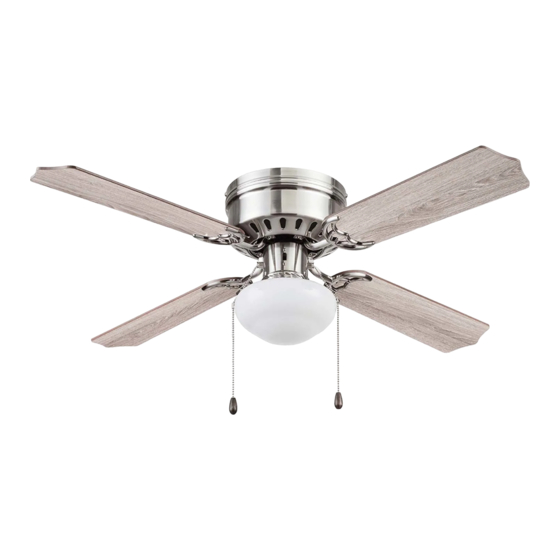

LIMITED LIFETIME WARRANTY To obtain Service, please contact the Service Department: 1-877-706-3267, 8 a.m. - 5 p.m. Central, Monday - Friday. Model Name: 42” Ceiling Fan Model No: 51489 - Bronze 51490 - Brushed Nickel 51491 - White Set forth below, the manufacturer, Hong Kong China Electric appliance Company (HKC) warrants the fan motor for this ceiling fan to be free from defects in workmanship and material for the life of the product.
