Page 1

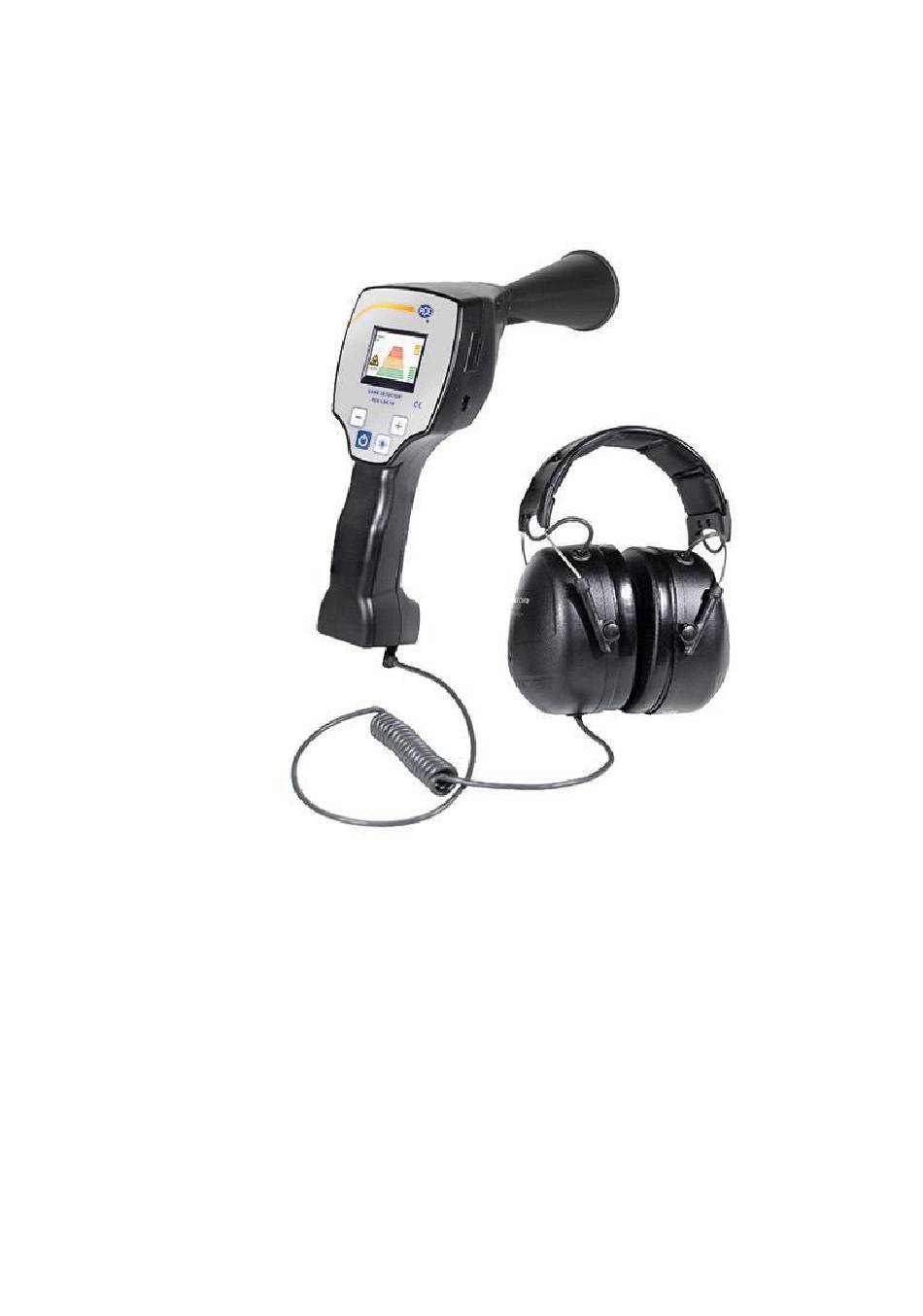

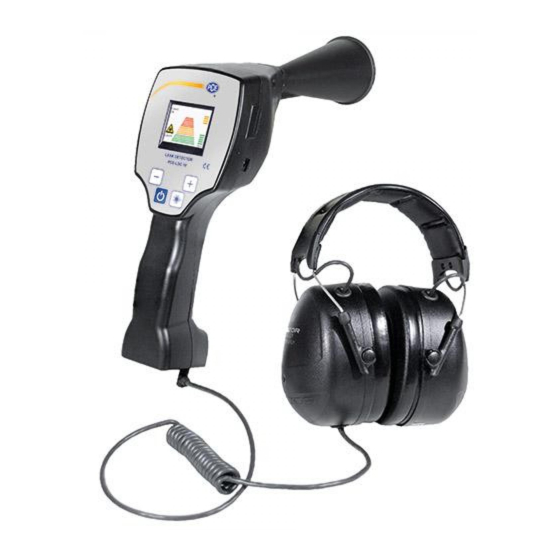

Manual Leakage detector PCE-LDC 10 Version 1.0 Date of creation: 08.09.2015 Date of last change: 23.05.2016 Address:East Room 306,3th Floor,1st Building,Shenhua Industrial Park,Meihua Road, Futian District,Shenzhen City Tel:0755-32978297 Email:hj@pce-instruments.cn...
Page 2
Manual Contents Introduction..........................3 Safety notes..........................3 Specification..........................3 System description........................4 Device components and controls...................... 4 The front side............................4 4.1.1 4.1.2 Sensor head............................4 4.1.3 Accessories............................. 5 Commissioning............................ 6 4.2.1 Switching on............................6 4.2.2 Louder/ quieter............................6 4.2.3 Laser................................
Page 3
For example it finds place in compressed air-, gas-, steam- and vacuum systems. The soundproofed headphone helps to work in loud areas. It also finds use at places where gas can stream out of pipes. The leakage detector PCE-LDC 10 helps there because the sound of streaming gas can be in the ultrasonic regions.
Page 4
Manual System description Device components and controls 4.1.1 The front side 1. 2 “ TFT color display 2. LED status display 3. Volume/ sensitivity increase 4. Laser on/ off button 5. On/ off switch 6. Volume/ sensitivity decrease 4.1.2 Sensor head 1.
Page 5
Manual 4.1.3 Accessories Sound cone Shotgun with tip 4.1.3.1 Sound cone Through the concentration of sound waves, the sound cone creates an acoustic amplification which enables a more precise detection of the leak. Through its special design, the integrated laser pointer will remain usable.
Page 6
Manual Commissioning 4.2.1 Switching on A pressing and holding of the on/ off button for about 1s, will switch on the device and a Start- Up sequence will appear on the display. Pressing the button again will switch off the device 4.2.2 Louder/ quieter With the volume increase and decrease buttons the volume in the sensitivity can be increased or...
Page 7
Battery charging The battery is charged within the device. For this, the supplied plug-in power supply is connected to the built-in charging socket of the PCE-LDC 10 and the 230V socket. If the battery is sufficiently charged, the status LED will flash green after the connection of the power supply and no additional charging will be performed.
Page 8
Determination of leaks in non-pressurized systems As already mentioned the PCE-LDC 10 can also be used for the leak detection on the seals of doors, windows and containers. For this purpose, an ultrasonic sound generator is positioned inside of the room or the container.
