- Page 1 User Manual PCE-325 / PCE-325D Sound Level Meter User manuals in various languages (français, italiano, español, português, nederlands, türk, polski, русский, 中文) can be found by using our product search on: www.pce-instruments.com Last change: 20 June 2024 v1.0 © PCE Instruments...
-
Page 2: Table Of Contents
Selecting decibel ranges ....................4 Measurement ........................4 MAX/MIN mode ........................ 5 Hold data.......................... 5 Recording mode (PCE-325D only) ................... 5 Auto Power Off ......................... 5 5.10 Data recording and software installation ................5 Calibration ..................... 6 Maintenance and cleaning ..............6 Cleaning and storage ....................... -
Page 3: Safety Notes
Please read this manual carefully and completely before you use the device for the first time. The device may only be used by qualified personnel and repaired by PCE Instruments personnel. Damage or injuries caused by non-observance of the manual are excluded from our liability and not covered by our warranty. -
Page 4: Technical Specification
Sensor: 102 x 60 x 25 mm (4.01 x 2.36 x 0.98") Weight approx. 306 g (0.674 lbs) Delivery Scope 1 x sound level meter PCE-325 or PCE-325D 1 x USB cable 1 x PC software (PCE-325D) 1 x service bag 1 x user manual ©... -

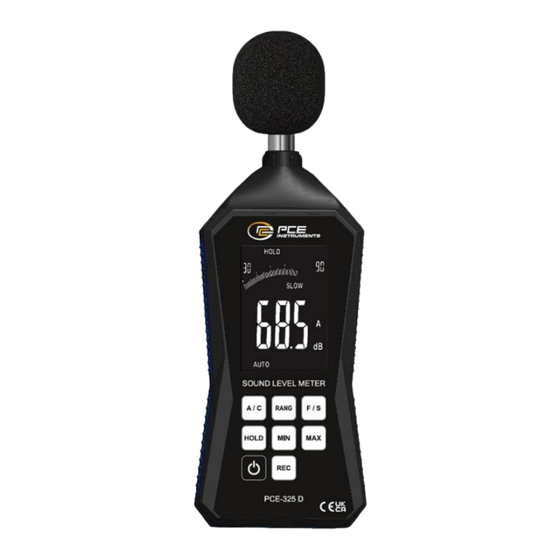

Page 5: Device Description
5. ON/OFF key 6. RANGE selection key 7. Fast/slow response time key 8. MAX key 9. MIN key 10. REC key (PCE-325D) / RANGE selection key (PCE-325 only) Note: The micro USB socket is located at the bottom of the meter. -
Page 6: Operating Instructions
30 … 130 dB. The manual ranges are: 30 … 90 dB, 50 … 110 dB and 70 … 130 dB. Use the RANG (only for PCE-325D, for PCE-325 use the arrow keys) key to select the preferred range. The selected range will display in the top left and right of the LCD. -
Page 7: Max/Min Mode
Press the HOLD key. The digital reading is held and the "HOLD" icon appears on the LCD. Press the HOLD key again to return to normal operation. Recording mode (PCE-325D only) The sound level meter has a data logging function. Before starting the recording function, connect the sound level meter to the PC via micro USB and set up the parameters via the PCE software. -
Page 8: Calibration
The instrument has been calibrated before shipment. The recommended calibration interval is one year. The meter should only be calibrated by PCE Instruments. Please get in touch with us when a calibration is required and follow our instructions on returning the meter. - Page 9 PCE Instruments contact information Germany France Spain PCE Deutschland GmbH PCE Instruments France EURL PCE Ibérica S.L. Im Langel 26 23, rue de Strasbourg Calle Mula, 8 D-59872 Meschede 67250 Soultz-Sous-Forets 02500 Tobarra (Albacete) Deutschland France España Tel.: +49 (0) 2903 976 99 0 Téléphone: +33 (0) 972 3537 17...
