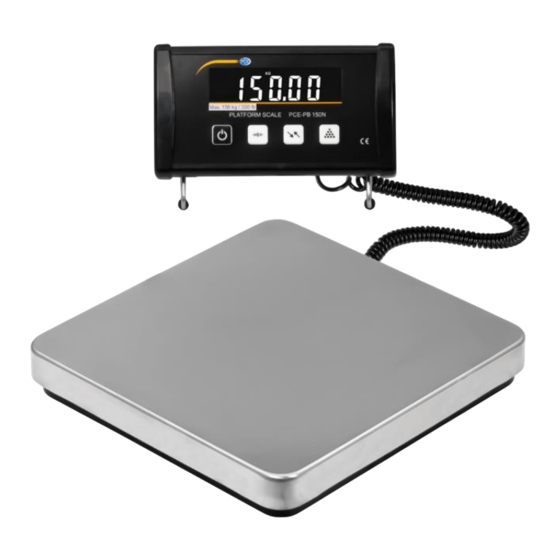

- Page 1 User Manual Platform Scales PCE-PB N Series User manuals in various languages (français, italiano, español, português, nederlands, türk, polski, русский, 中文) can be found by using our product search on: www.pce-instruments.com Last change: 28 December 2021 v1.0 © PCE Instruments...
-
Page 2: Table Of Contents
11.4 AU-Po ..........................8 11.5 bA-LI ..........................8 11.6 Zero ..........................9 11.7 FIL ..........................10 11.8 Ho-FU ..........................10 11.9 CALib ..........................10 11.10 rESEt ..........................12 12 Error messages / troubleshooting ............ 12 13 Warranty ....................13 14 Disposal ....................13 © PCE Instruments... -
Page 3: Safety Notes
We expressly point to our general guarantee terms which can be found in our general terms of business. If you have any questions please contact PCE Instruments. The contact details can be found at the end of this manual. © PCE Instruments... -
Page 4: Technical Data
The special functions are: multiple taring over the complete weighing range, Auto ON-OFF can be deactivated, Auto Zero can be deactivated, adjustable data transfer, bidirectional USB interface. © PCE Instruments... -
Page 5: Display Overview
Activate the piece counting function (function explained in chapter 10) Confirmation key in the menu (Enter) COUNT / ENTER key (dual function) Enter the menu by pressing these two keys at the & same time MENU / SETTINGS (key combination) © PCE Instruments... -
Page 6: First Use
Taring/zeroing the weights does not increase the weighing range of the scales. (see weighing range) It is possible to switch between the net weight and the gross weight once. To do this, press and hold the "ZERO / TARE" key until "notArE" appears in the display. © PCE Instruments... -
Page 7: Weighing Units
"COUNT / ENTER" key. The determined piece weight remains saved until the next change. If you want to continue counting with the last used piece weights, press the "COUNT / ENTER" key. The display then changes to counting mode. (Display info "PCS") © PCE Instruments... -
Page 8: Settings / Functions
ZERO / TARE key This key allows you to switch between the menus and change the settings. UNIT / PRINT key This key is a confirmation key, i. e. for applying settings. COUNT / ENTER key © PCE Instruments... -
Page 9: Send
Command: Sx + CR + LF OFF Switching off the scale Command: SO + CR + LF Attention! If a command is sent that the scales do not know, the error "Err 5" appears in the display. © PCE Instruments... -
Page 10: Baud
This function allows you to adjust the backlight of the display to your needs. You can select: - on Backlight permanently ON - oFF Backlight OFF - Au-to Backlight "ON" when scales are used (approx. 5 s) © PCE Instruments... -
Page 11: Zero
To do this, set the "Aut-Zo" function to ON and restart the scales. Important: This does not increase the measurement range. The total weight must not exceed the maximum load of the scales. (see 2 Technical data) © PCE Instruments... -
Page 12: Fil
We recommend using approx. 2/3 of the maximum load as calibration weight for the single-point adjustment "C-FrEE". Example: for 60 kg scales, a calibration weight of 40 kg is recommended. - C-FrEE Calibration / adjustment with freely selectable weight (single-point adjustment) © PCE Instruments... - Page 13 Now place the given weight on the scales, wait until the value stabilises and press the "ZERO / TARE" key again. Follow this procedure until the calibration is completed. (If the message "Err-1" appears in the display, the adjustment has not been carried out successfully). © PCE Instruments...
-
Page 14: Reset
Check PC query command Tare / zero point check / *55.20 kg* Incorrect weight values adjustment Scales cannot be switched on Check power supply If you have any questions, please contact the service department of PCE Instruments. © PCE Instruments... -
Page 15: Warranty
For countries outside the EU, batteries and devices should be disposed of in accordance with your local waste regulations. If you have any questions, please contact PCE Instruments. © PCE Instruments... - Page 16 PCE Instruments contact information Germany France Spain PCE Deutschland GmbH PCE Instruments France EURL PCE Ibérica S.L. Im Langel 26 23, rue de Strasbourg Calle Mayor, 53 D-59872 Meschede 67250 Soultz-Sous-Forets 02500 Tobarra (Albacete) Deutschland France España Tel.: +49 (0) 2903 976 99 0 Téléphone: +33 (0) 972 3537 17...
