Summary of Contents for PCE Instruments PCE-LED 30

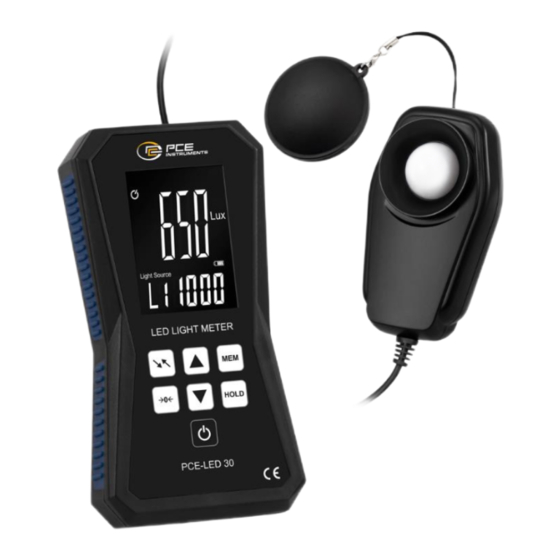

- Page 1 User Manual PCE-LED 30 Light Meter User manuals in various languages (français, italiano, español, português, nederlands, türk, polski, русский, 中文) can be found by using our product search on: www.pce-instruments.com Last change: 26 February 2024 v1.0 © PCE Instruments...
-
Page 2: Table Of Contents
Delivery scope........................2 Device description ................3 Preparation .................... 3 Battery replacement ......................3 Operation ....................4 Making a measurement ....................4 Functions ......................... 5 Settings ..........................6 Further information ................7 Contact ....................8 Disposal ....................8 © PCE Instruments... -
Page 3: Safety Notes
Please read this manual carefully and completely before you use the device for the first time. The device may only be used by qualified personnel and repaired by PCE Instruments personnel. Damage or injuries caused by non-observance of the manual are excluded from our liability and not covered by our warranty. -
Page 4: Specifications
165 x 85 x 32 mm / 6.5 x 3.3 x 1.3 in Weight approx. 250 g / <1 lb Delivery scope 1 x PCE-LED 30 light meter 1 x light sensor with protective cap 1 x device bag 1 x user manual... -
Page 5: Device Description
Open the battery compartment and remove the old batteries. Insert 3 new 1.5 V AAA batteries. Make sure the polarity is correct. Close the battery compartment and tighten the screw. Note: Replace the batteries when the battery voltage is low to avoid inaccurate readings. © PCE Instruments... -
Page 6: Operation
LX/FC/CD key to confirm. The luminous intensity is calculated using the following formula: Luminous intensity (cd) = illuminance (LUX) x distance² (m²) The distance to the light source can be 0.01 ... 30.47 m (0.01 ... 99.99 ft). © PCE Instruments... -
Page 7: Functions
To return to measuring mode, press and hold the MEM/READ key. Clear (delete memory) When the measuring device is switched off, press the MEM/READ and the On/off keys simultaneously. The display now shows "CLR" and all saved measured values are deleted. © PCE Instruments... -
Page 8: Settings
To activate or deactivate the automatic power-off function, press and hold the On/off key. When the function is active, a " " icon appears on the left of the display. When the function is inactive, the icon disappears. © PCE Instruments... -
Page 9: Further Information
Recommended illuminance levels: Recommended illuminance levels for workplaces and premises can be found in DIN EN 12464-1 and ASR 3.4. Spectral sensitivity: Relative spectral sensitivity according to JIS C 1609-1993: Peak sensitivity: 550 nm Adjusted spectrum (daylight LED): © PCE Instruments... -
Page 10: Contact
For countries outside the EU, batteries and devices should be disposed of in accordance with your local waste regulations. If you have any questions, please contact PCE Instruments. © PCE Instruments... - Page 11 PCE Instruments contact information Germany France Spain PCE Deutschland GmbH PCE Instruments France EURL PCE Ibérica S.L. Im Langel 26 23, rue de Strasbourg Calle Mula, 8 D-59872 Meschede 67250 Soultz-Sous-Forets 02500 Tobarra (Albacete) Deutschland France España Tel.: +49 (0) 2903 976 99 0 Téléphone: +33 (0) 972 3537 17...
